Remove a Processor Module or Processor Filler Module
64 SPARC T5-8 Server Service Manual • November 2015
4.

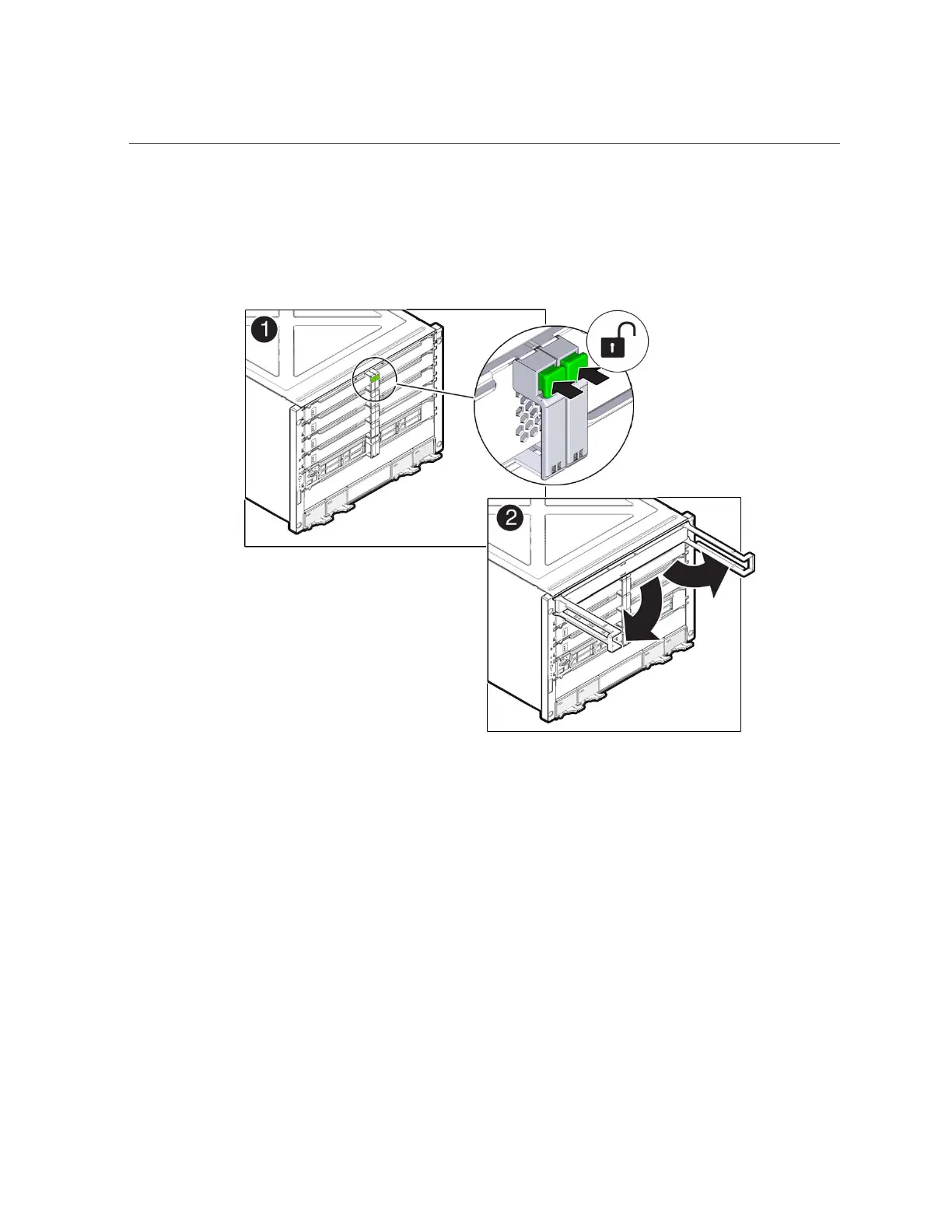

Squeeze the release latches together on the two extraction levers, and pull the
extraction levers out to disengage the processor module or processor filler
module from the server.
5.
Pull the processor module or processor filler module halfway out of the server,
and then close the levers.
