Installing the Separator Assembly (Stone or Stripper Bar)
1. Turn the separator knob so at least 5/16" (8 mm) of thread is showing above the knob. This makes
it easier to install the separator assembly.

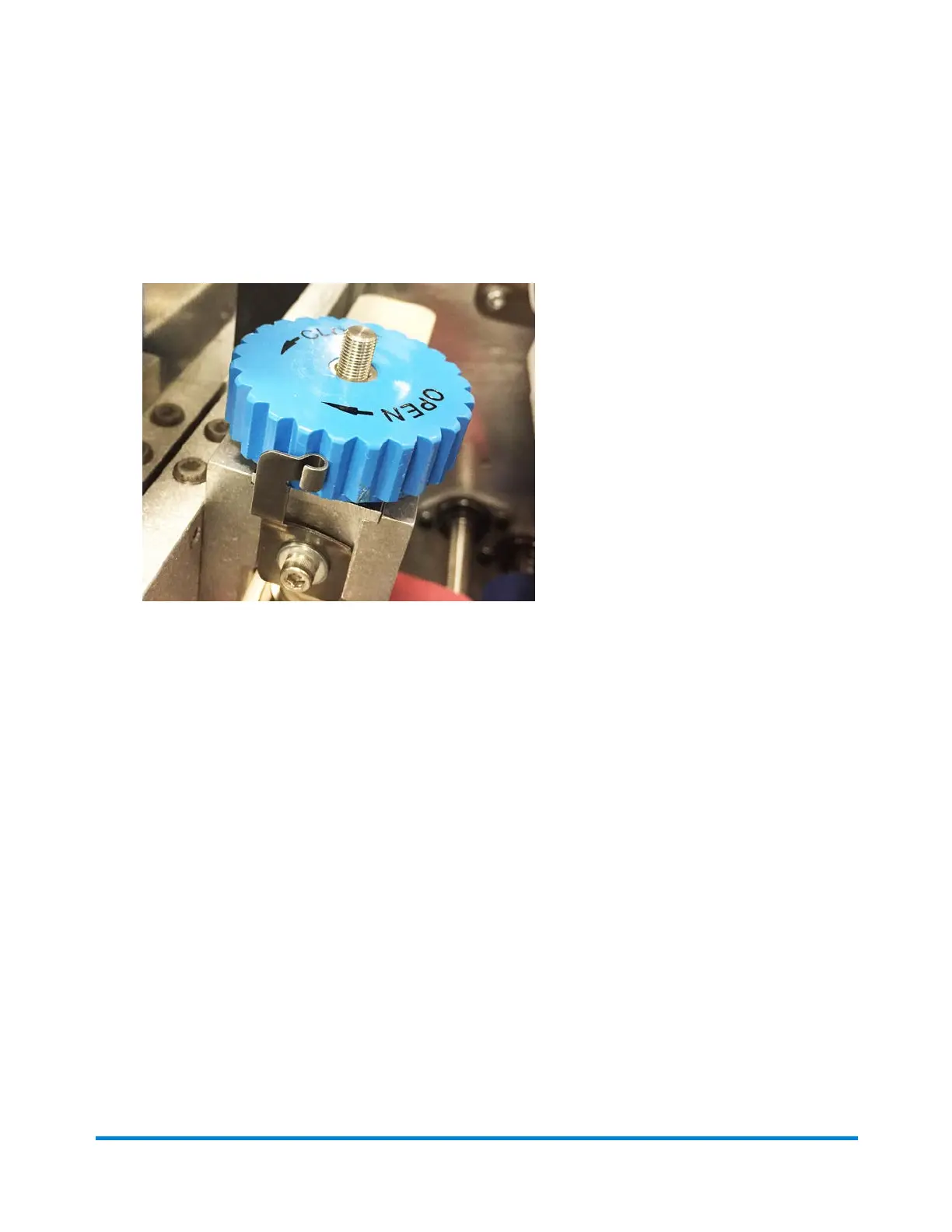

Separator Knob
2. If the 3/16" screw and wedge block are installed on the operator side of the assembly, remove
them at this time.
3. Angle and slide the separator assembly in place. Help guide the assembly into position, taking care
not to lose or damage a spring or photocell wires.
4. With the separator assembly in place, install the 3/16" screw and wedge block on the operator
side.
Operator Adjustments
Pitney Bowes Epic v3.1 (ZVE0) Operator Guide May, 2018 Page 142 of 328
