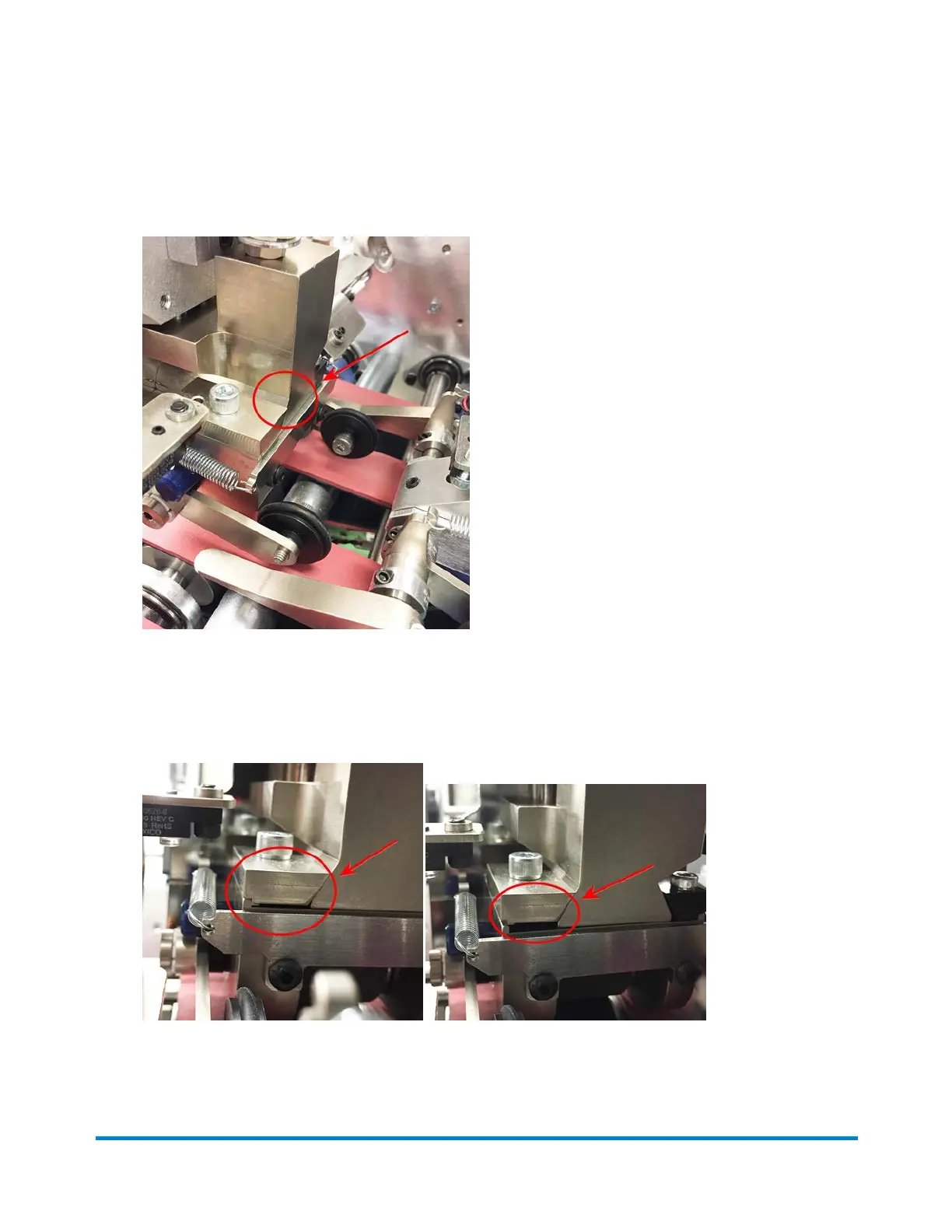

5. While pushing the assembly to your left, fully seat in in place and tighten the 3/16" screw using the
setup tool.
The separator assembly needs to be fully installed to your left.
The wedge block must be sitting in the groove when the screw is tightened, otherwise the
separator assembly might come loose.
Wedge Block Seated Correctly (left) and Wedge Block Seated Incorrectly (right)
Operator Adjustments
Pitney Bowes Epic v3.1 (ZVE0) Operator Guide May, 2018 Page 143 of 328
