7. Tighten the position mounting screw for each side guide.
8. Loosen the two side guide height adjustment screws and lower them down.

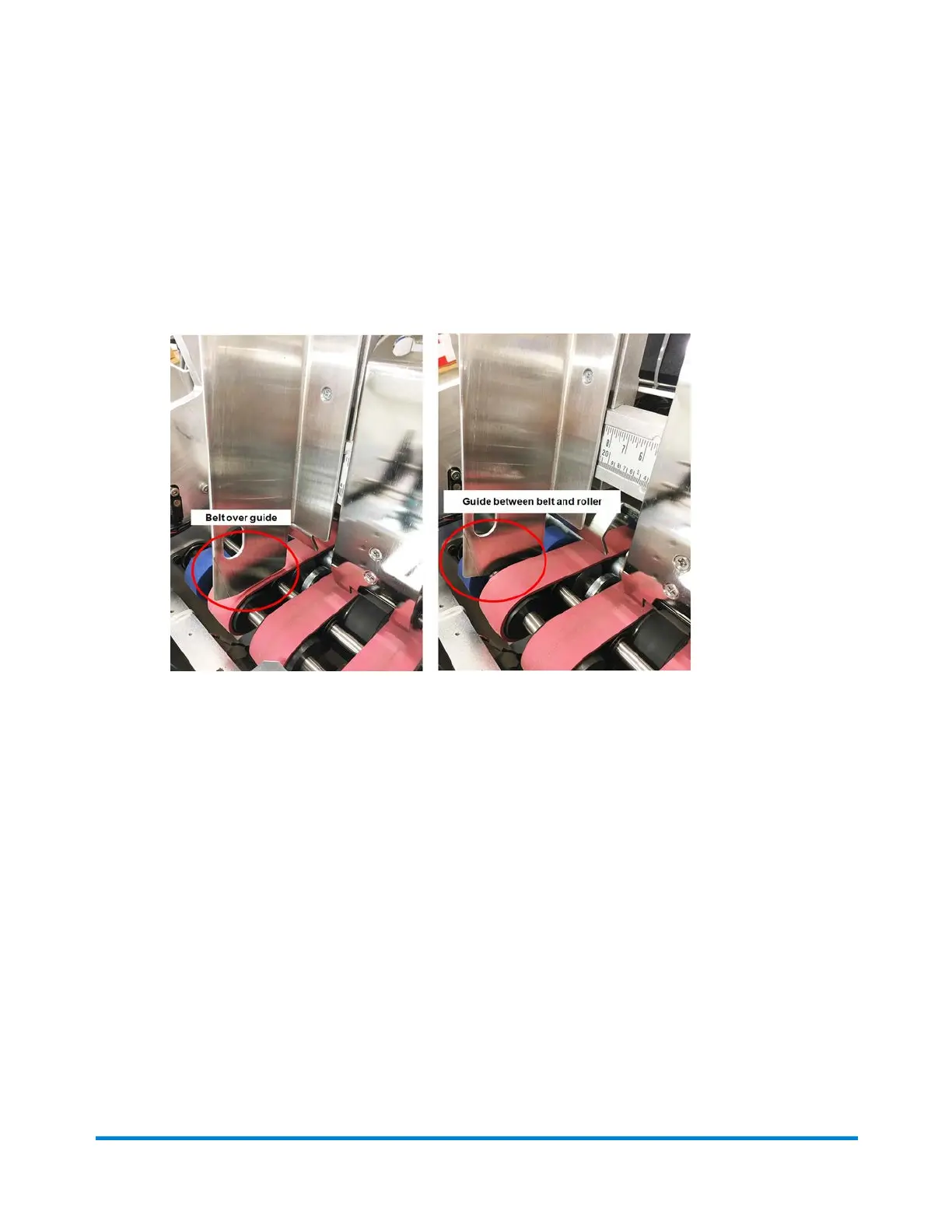

l If the bottom of the guide is over the belt or roller, adjust the height of the side guide so there is
a 2 mm gap.
l If the bottom of the guide is not over a belt or roller, lower the side guide to its lowest position.
Height Adjustment
9. Tighten both height adjustment screws for each side guide.
