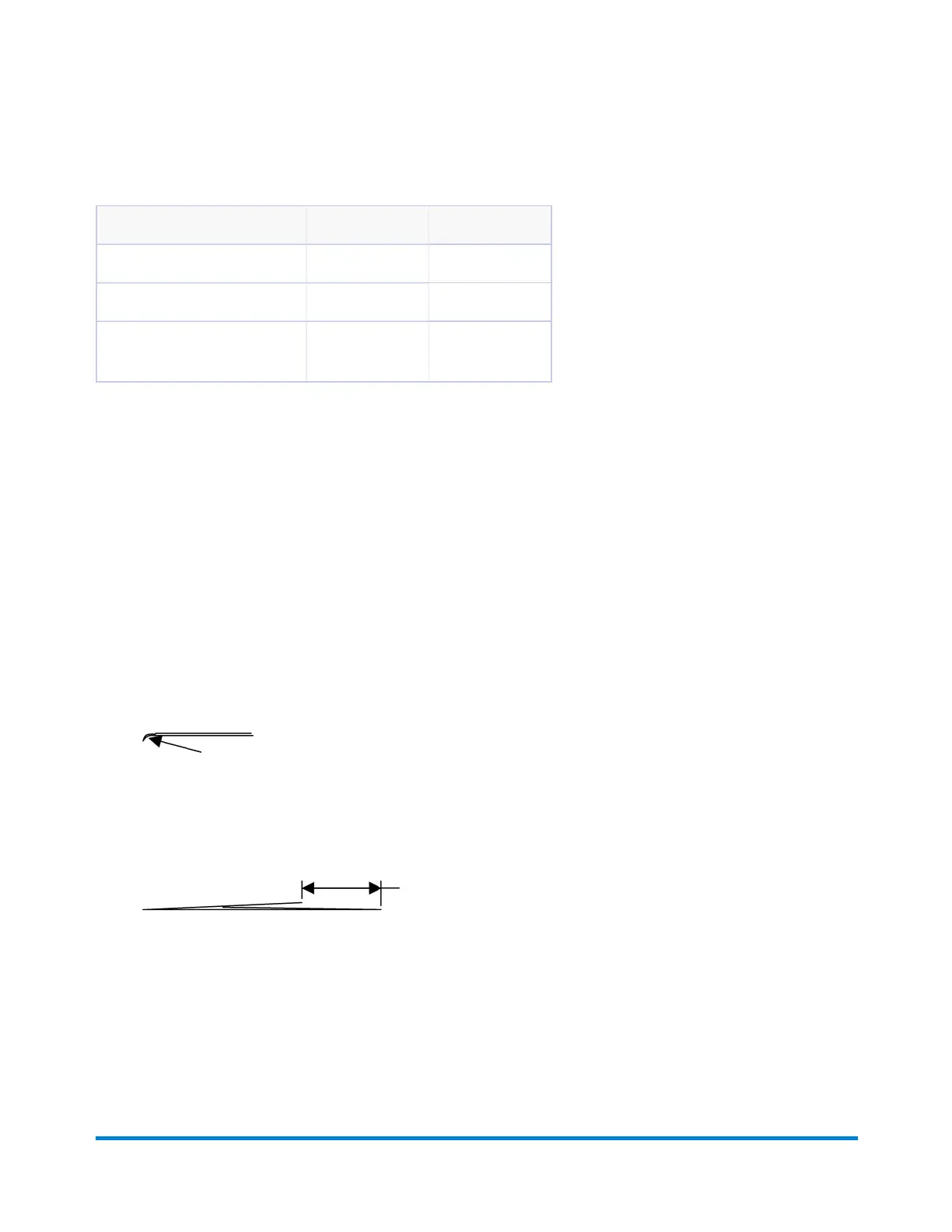

Enclosure Specifications
Measurements Minimum Maximum
Length 3.0" (76 mm) .6.25" (159 mm)
Width 5.5" (140 mm) 10.0" (254 mm)
Total Enclosure Thickness -
Max Speed
.0038" (0.1 mm) .125" (3 mm)
l Enclosure dimensions should not vary more than +/- .03125" (1 mm).
l Enclosure curl or twist should not exceed .125” (3 mm) when enclosure is placed on a flat surface.
l Contact PB Engineering if an application falls outside the specifications.
Folded Enclosure Specifications
l Folds that result in an even overall thickness of enclosure will give the best feeding performance.
l Folds that are made parallel to the paper grain direction are preferred. This results in a cleaner,
straighter fold with less thickness increase at the fold.
l Folds should be sharply creased, flat, and free of edge curl (see diagram).
Curl at Fold
l Folds must not result in the free ends being greater than .25" (6 mm) from a fold (see diagram).
Free Ends at 1/4" (6 mm) Maximum
Specifications
Pitney Bowes Epic v3.1 (ZVE0) Operator Guide May, 2018 Page 297 of 328
