Chapter E - PREVENTIVE MAINTENANCE
Planmeca Compact i E-7
WATER MANAGEMENT SYSTEM (WMS)
Technical Manual

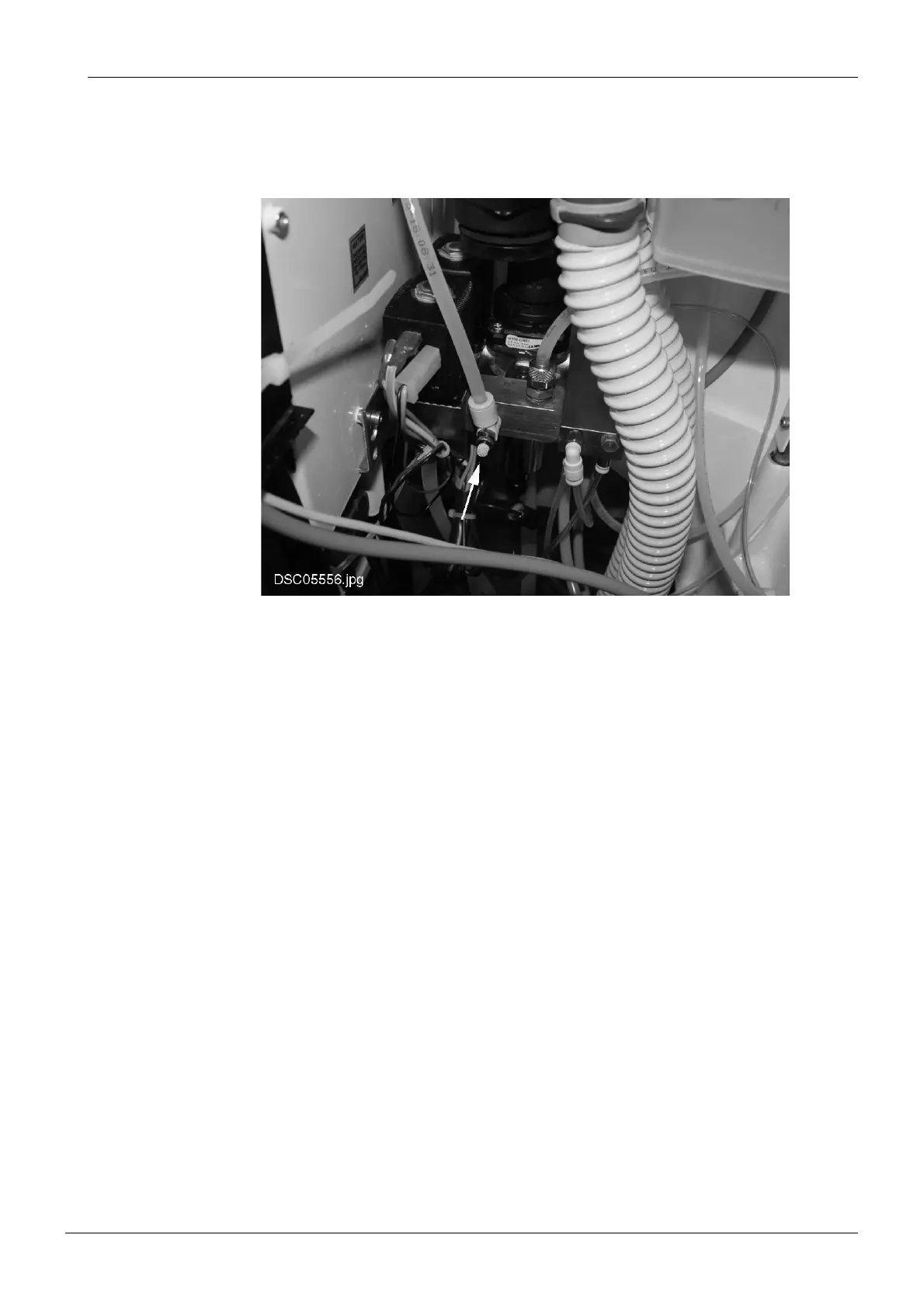

• The water flow adjustment knob is located on the magnetic valve/pressure regulator
assembly (arrow on the figure below). Loosen the adjustment knob locking screw: hold the
knob in position and turn the locking screw. Adjust the flow by turning the adjustment knob.
• When the water flow is correct, lock the adjustment knob with the locking screw: hold the
knob in position and turn the lock ring. Attach the pump water tube to the container quick
connector.
