Planmeca Compact I User Manual

Planmeca Compact i F-1
Chapter
Technical Manual
F ADJUSTMENTS
1 MECHANICAL ADJUSTMENTS
1.1 Adjusting vertical position of the OP delivery arm column
The console arm column must be vertical. You may have to adjust its position, if the floor is
very inclined.

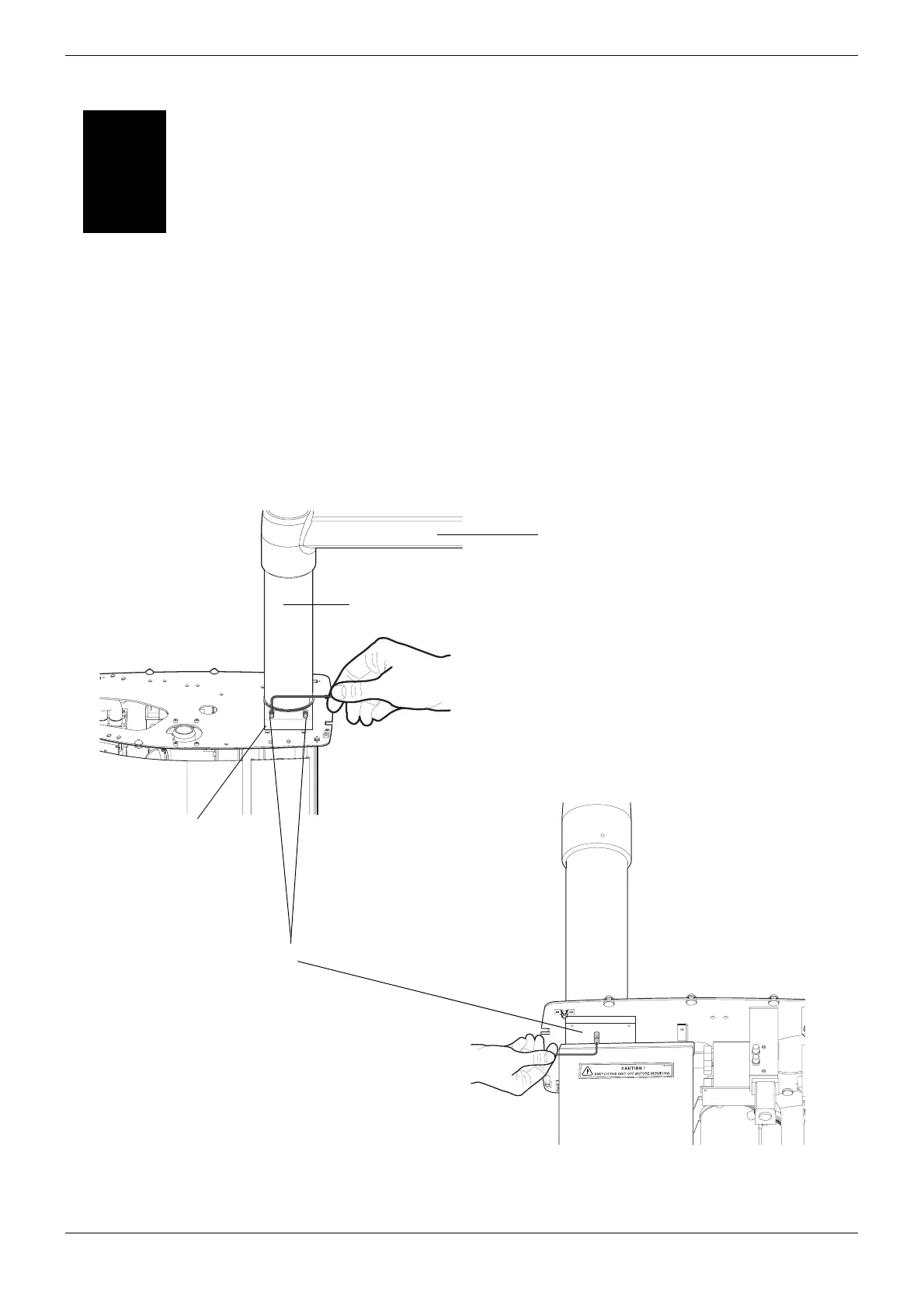

Adjustment screws
Console arm adapter
To adjust the vertical position of the console arm col-
umn:
1. Remove the bowl.
2. Remove the cuspidor covers.
3. Adjust the position of the console arm adapter with
the three M8x12 DIN 913 adjustment screws sup-
plied with the mounting accessories. Refer to the fig-
ures for the location of the three holes.
4. Reassemble in reverse order.
Console arm
column
Console arm

Planmeca Compact I Specifications

General

Spittoon	Yes
Operating Light	LED
Imaging Technology	Digital
X-ray Tube Voltage	60-70 kV
X-ray Tube Current	7 mA
Focal Spot Size	0.8 mm
Exposure Time Range	3.2 s
Power Supply	50/60 Hz
