Planmeca Compact I User Manual

Chapter F - ADJUSTMENTS
F-28 Planmeca Compact i
WATER MANAGEMENT SYSTEM: ADJUSTING THE
Technical Manual
4 WATER MANAGEMENT SYSTEM: ADJUSTING THE
SENSORS

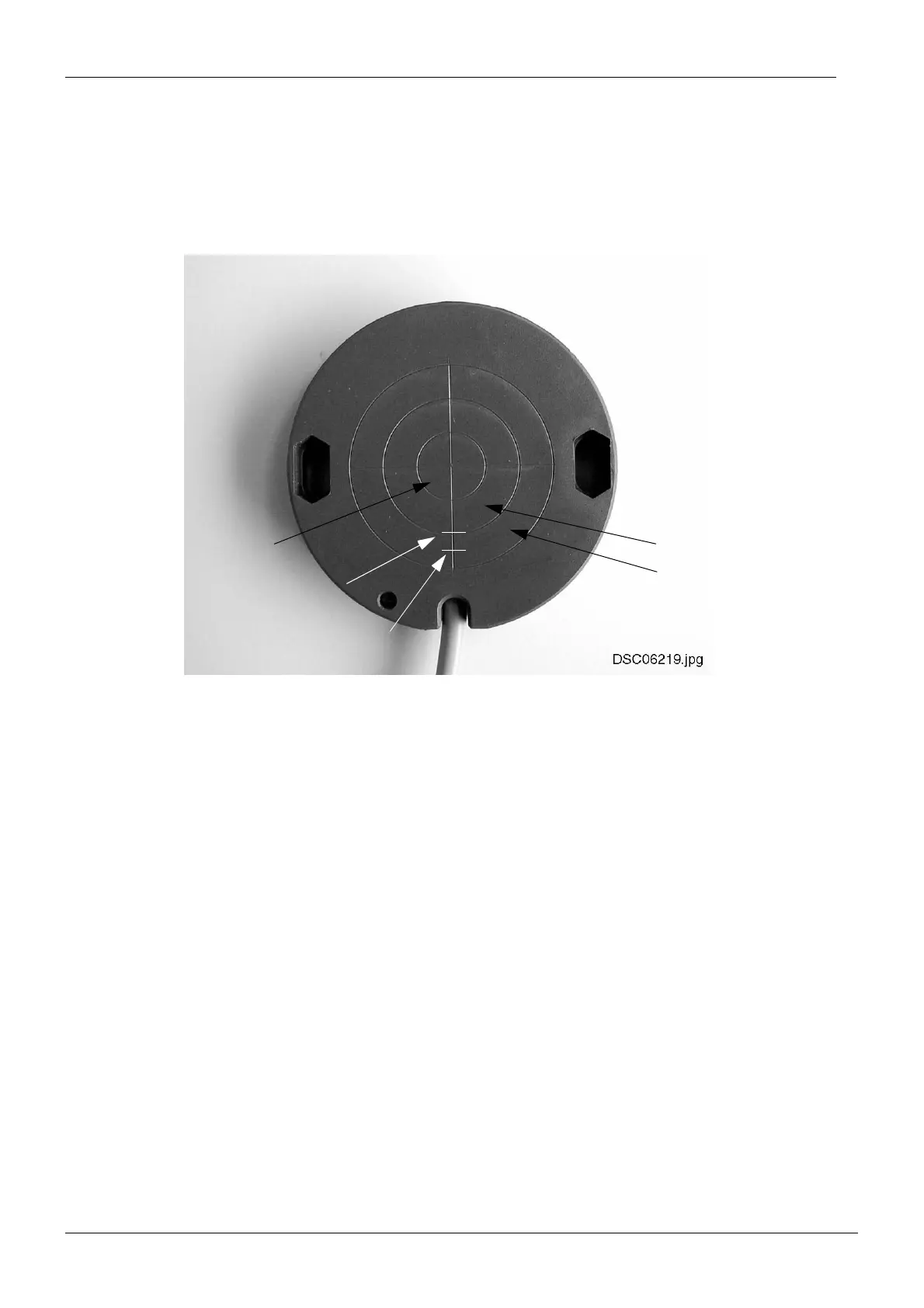

To the sensor surface are marked three circles. The inner area is number 1, the next is 2 an
so on.
4.1 Preparations before adjustment
• Open the cuspidor door.
• Add some Planosil solution or coloured water (with e.g. caramel) to the container.
• Switch on the Clean water mode and switch on the container (bottle) switch.
Area 1
Area 2
Area 3
Lower sensor adjustment
Upper sensor adjustment
level (+2/-1 mm)
level (±1.5mm)
