Planmeca Compact I User Manual

Chapter F - ADJUSTMENTS
F-10 Planmeca Compact i
MECHANICAL ADJUSTMENTS
Technical Manual
1.5 Adjusting the side delivery arm base joint friction
1.6 Adjusting the friction of the side delivery arm joint

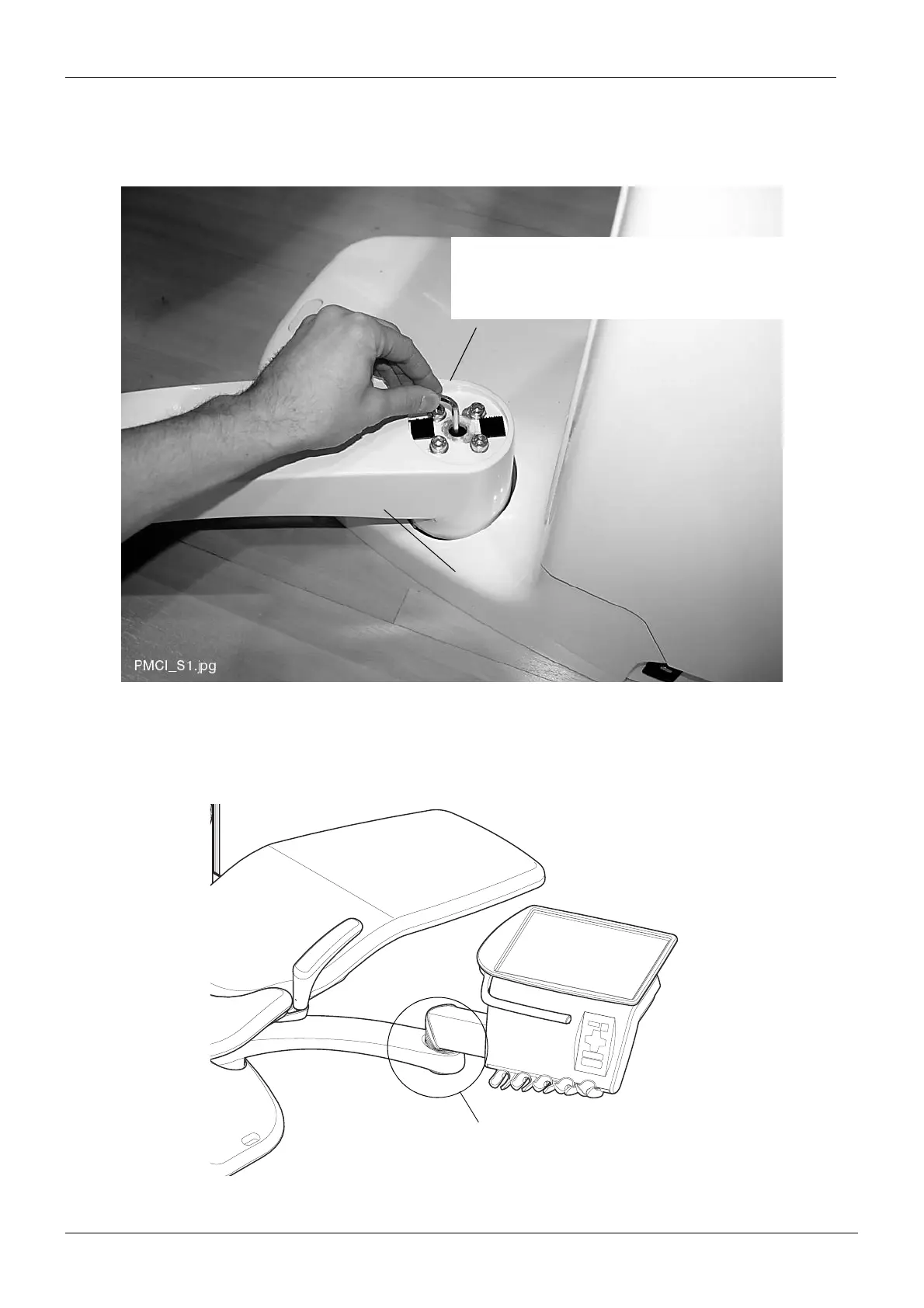

Remove the base joint cover plate.
Adjust the rotational friction of the horizontal
arm with the 5 mm allen key.
Tightening the screw increases the friction.
Horizontal arm
Adjust the rotational friction of the lower joint
by turning the adjustment bolt with 10 mm
fork spanner.
