Chapter B - CONTROL PANEL FUNCTIONS
Planmeca Compact i B-5
PROGRAMMING MODE FUNCTION DETAILS
Technical Manual
NOTE If the dental unit is equipped with the Planmeca Sterile Water System, the ster-
ile water function is selected in this mode. Letters ‘St’ indicate that sterilized
water is fed to the selected instrument. The indicator light of the instrument
spray key flashes when the spray is on. For more information, refer to the Ster-
ile Water System User’s Manual.
4.3 Chip blow flow rates
Since the adjustment is individual for each instrument, you must indicate which instrument to
program by picking it out from the holder.

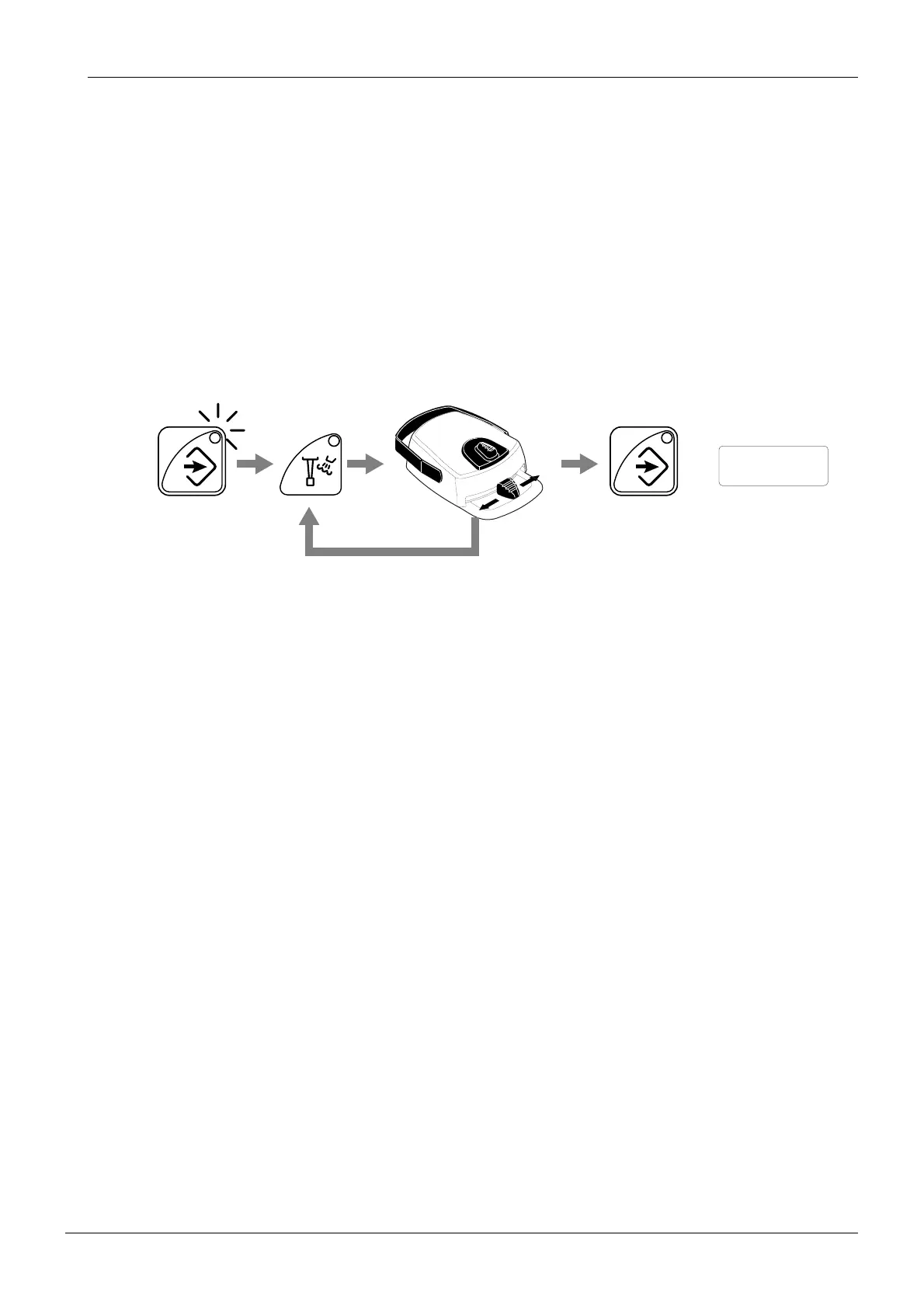

a) Press the program key.
b) Press the chip blow key. The text ‘CA.nn’ or ‘CH.nn’ will appear on the display indicating
which of the parameters will be adjusted (A for air and H for water). The factory setting is full
air pressure and water off.
c) Press the chip blow key repeatedly (or the foot control pedal briefly down) to toggle between
air and water adjustment.
d) Change the flow rate with the help of the foot control pedal. Bringing the pedal to the right will
increase the flow, taking it to the left side will decrease the flow. Please note that the
instrument will not run during this programming operation.
e) Press the program key to exit and store the new automatic chip blow settings.
NOTE The manual chip blow is set as default to be dry (air only), independent of the
automatic chip blow programming. However, if desired, this can be altered,
please refer to “n.43 Set mode of foot controlled chip-blow (n range = 0,1, 2)”
on page C-26.
CA.nn
+
-
