Chapter E - PREVENTIVE MAINTENANCE
E-8 Planmeca Compact i
WATER MANAGEMENT SYSTEM (WMS)
Technical Manual

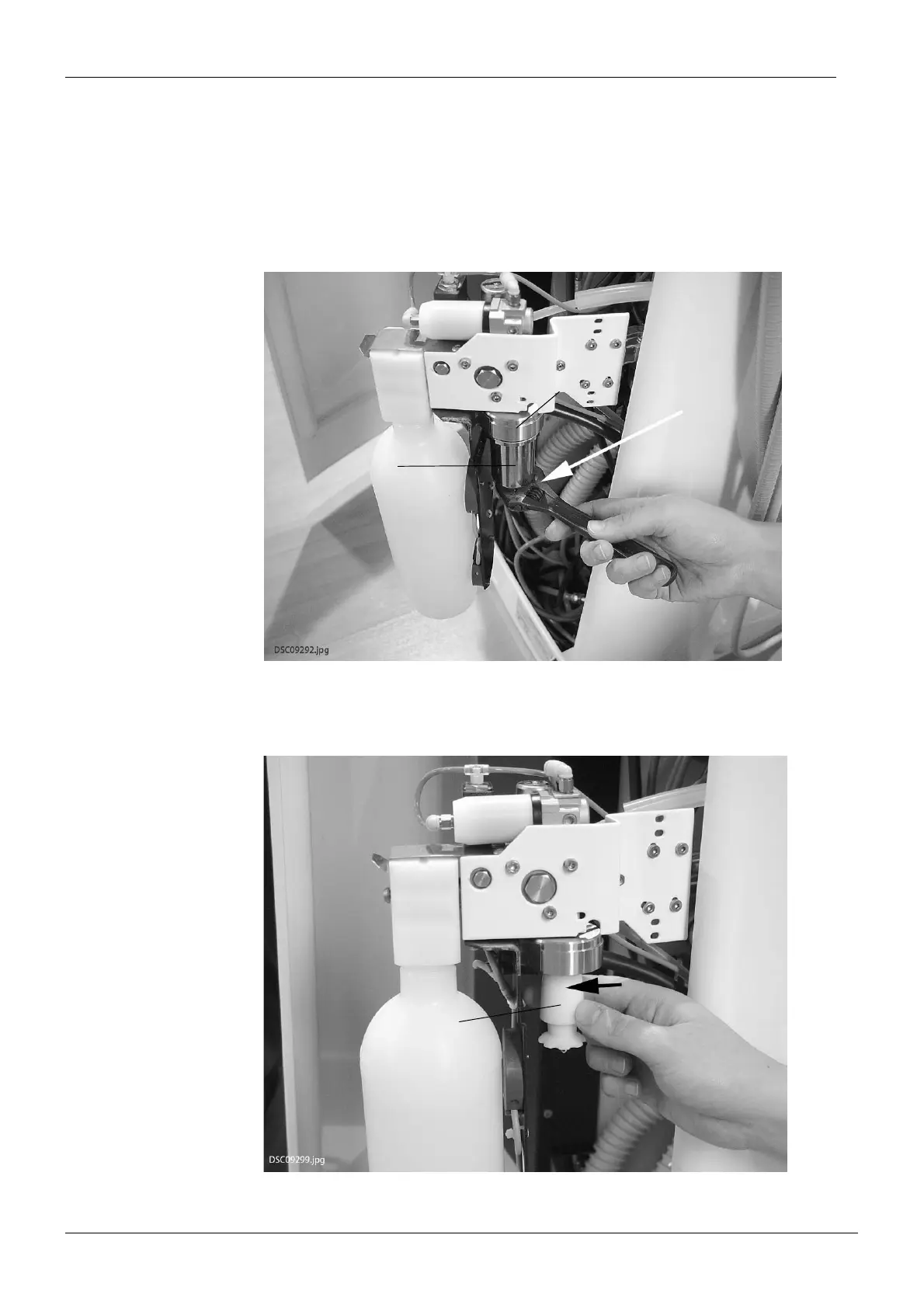

11.1 Changing the water filter (00271003)
• Switch off the dental unit.
• Open the cuspidor door.
• Unscrew clockwise the cup of the filter regulator with a 17 mm fork spanner.
• Unscrew clockwise the filter from its position.
filter regulator
cup
filter

Planmeca Compact I Specifications

General

Spittoon	Yes
Operating Light	LED
Imaging Technology	Digital
X-ray Tube Voltage	60-70 kV
X-ray Tube Current	7 mA
Focal Spot Size	0.8 mm
Exposure Time Range	3.2 s
Power Supply	50/60 Hz
