Planmeca Compact I User Manual

Chapter F - ADJUSTMENTS
Planmeca Compact i F-9
MECHANICAL ADJUSTMENTS
Technical Manual

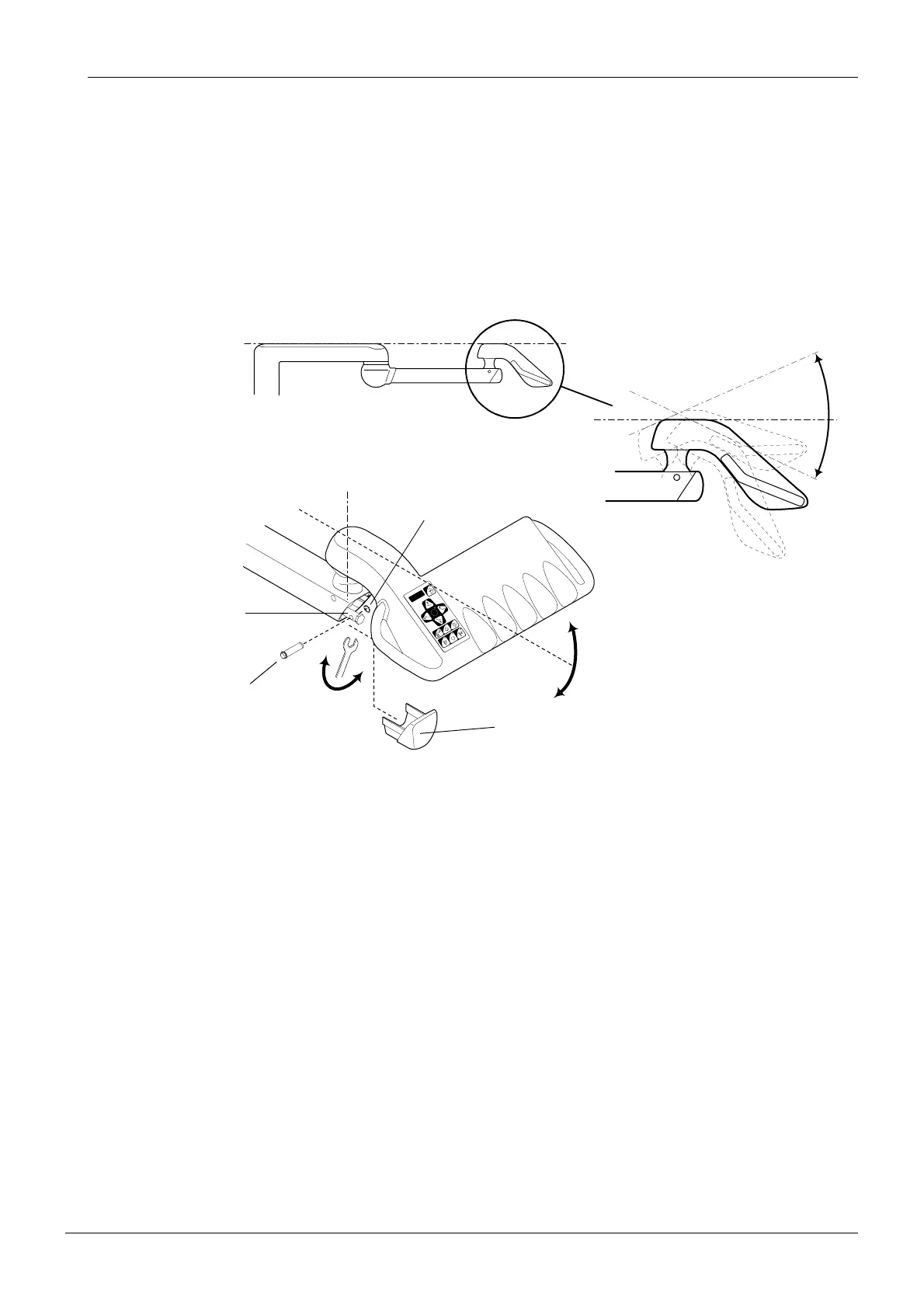

1.4 Adjusting angle of the OP delivery arm instrument console
a) Remove the lifting arm cover.
b) Remove the ø8 DIN 471 locking ring and pull out the lower joint pin (short).
c) Adjust the angle of the instrument console by turning the lower joint adjustment screw with a
15mm set wrench. The angle is preset at the factory to level with the rotating arm.
d) Assemble the lower joint in reverse order.
S
C
D
A
B
8888
The angle is preset at the factory
to level with the rotating arm.
Lifting arm cover
Lower joint
pin (short)
Locking ring
ø8 DIN 471
Lower joint
adjustment screw

Planmeca Compact I Specifications

General

Spittoon	Yes
Operating Light	LED
Imaging Technology	Digital
X-ray Tube Voltage	60-70 kV
X-ray Tube Current	7 mA
Focal Spot Size	0.8 mm
Exposure Time Range	3.2 s
Power Supply	50/60 Hz
