Chapter F - ADJUSTMENTS
Planmeca Compact i F-15
MECHANICAL ADJUSTMENTS
Technical Manual

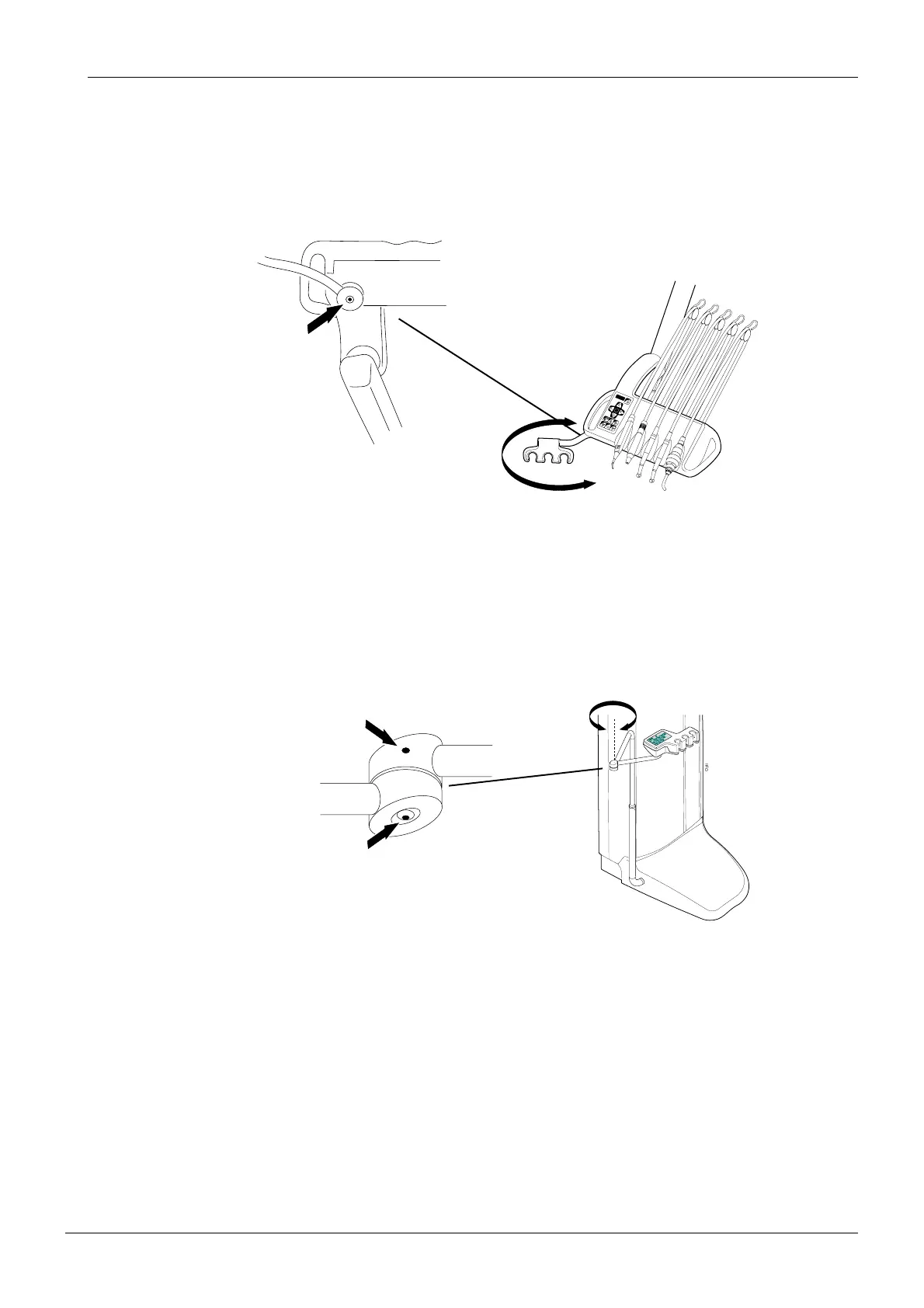

1.10 Adjusting friction of the ergo suction arm
Adjust the rotational friction of the suction arm with the 4 mm allen key. Tightening the screw
increases the friction.
1.11 Adjusting friction of the adjustable suction arm
Loosen the holding screw at the side of the optional suction arm joint with the 2 mm allen key.
Adjust the rotational friction of the joint with the 4 mm allen key. Tightening the screw
increases the friction. Lock the screw into position with the holding screw.
S
C
D
A
B
8888
Adjust with 4 mm allen key.
Loosen the screw
with 2 mm allen key.
Adjust with 4 mm allen key.
S
A B
C
D
8
888
Optional suction arm paths.eps
