Planmeca Compact I User Manual

Chapter F - ADJUSTMENTS
Planmeca Compact i F-11
MECHANICAL ADJUSTMENTS
Technical Manual

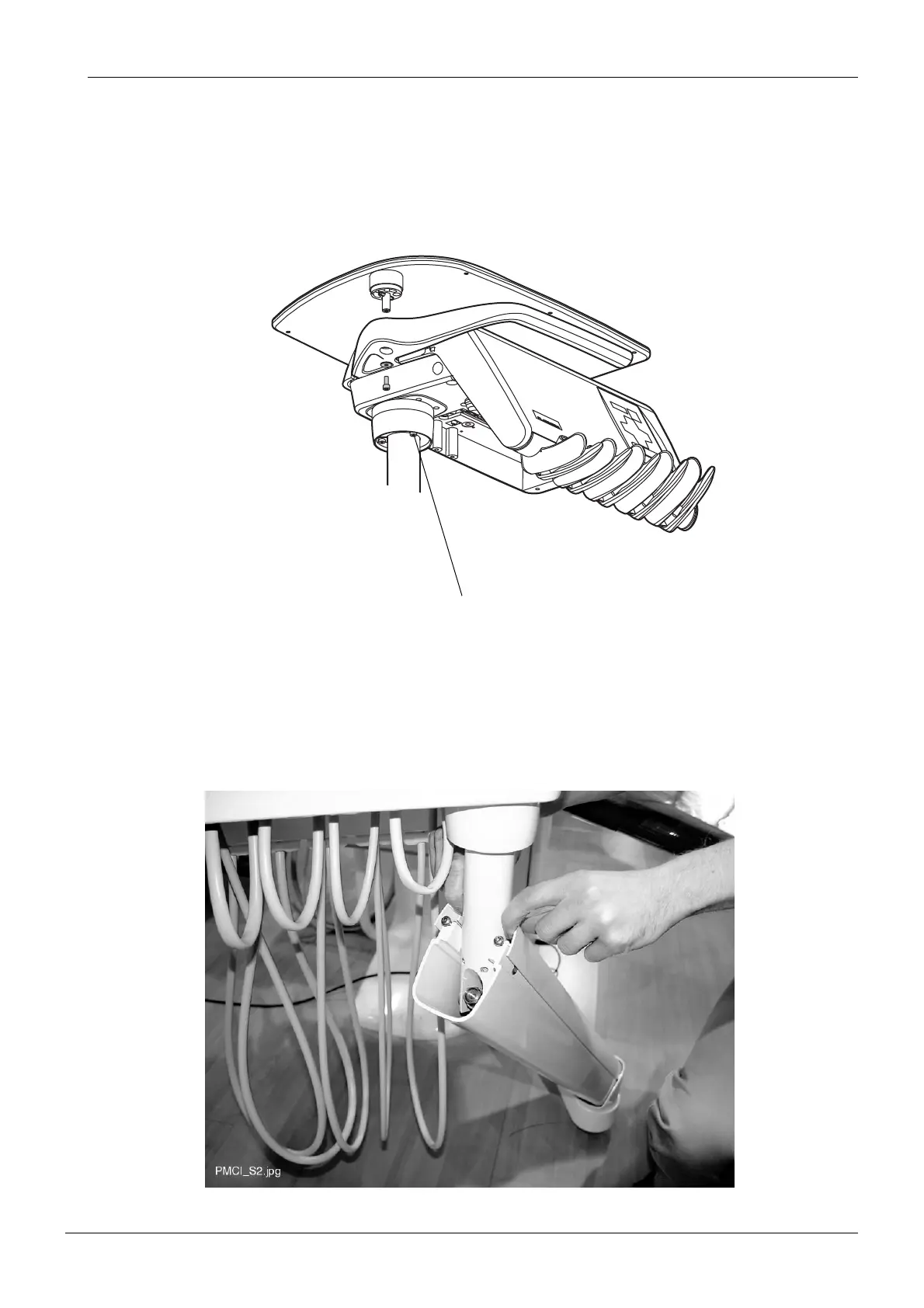

1.7 Adjusting the side delivery arm instrument console friction
Adjust the rotational friction of the instrument console with the adjustment screw located
below the instrument console. There is a black washer below the adjustment screw (attach-
ment screws do not have washers).
1.8 Adjusting the lifting friction of the side delivery arm
Remove the level arm cover by first pulling it from its upper end with both hands as shown on
the figure below. After detaching the upper end the cover can be lifted away from its position.
Friction adjustment screw

Planmeca Compact I Specifications

General

Spittoon	Yes
Operating Light	LED
Imaging Technology	Digital
X-ray Tube Voltage	60-70 kV
X-ray Tube Current	7 mA
Focal Spot Size	0.8 mm
Exposure Time Range	3.2 s
Power Supply	50/60 Hz
