Chapter H - FOOT CONTROL
H-6 Planmeca Compact i
PARTS REPLACEMENT & REPAIR
Technical Manual
p) Calibrate the foot control as described in section “Calibrating foot control” on page H-15.

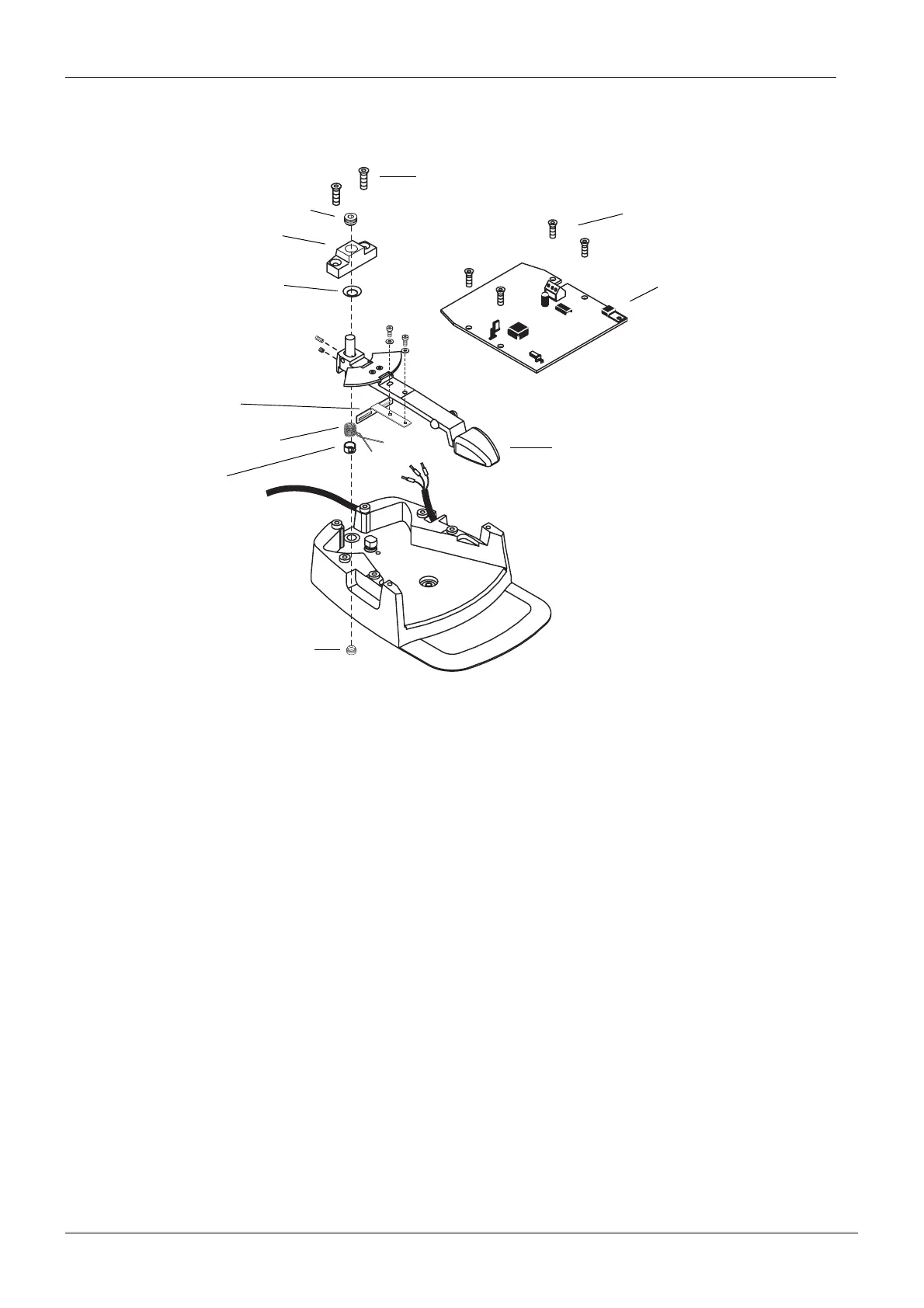

fcntrlpedal1102.eps
M4x10 DIN 7991
Foot control PCB
Bearing bar
M4x16 DIN 7991
Spring washer
Pedal height adjustment screw
Pedal centering plate
Pedal assembly
Upper adjustment screw
(with side wings)
Pedal centering spring
Spring support
