Planmeca Compact I User Manual

Chapter H - FOOT CONTROL
H-16 Planmeca Compact i
ADJUSTMENTS
Technical Manual
b) To exit the foot control calibration mode, press the calibration switch briefly with the
screwdriver. The blinking sequence of the indicator light inside the foot control cover alters.

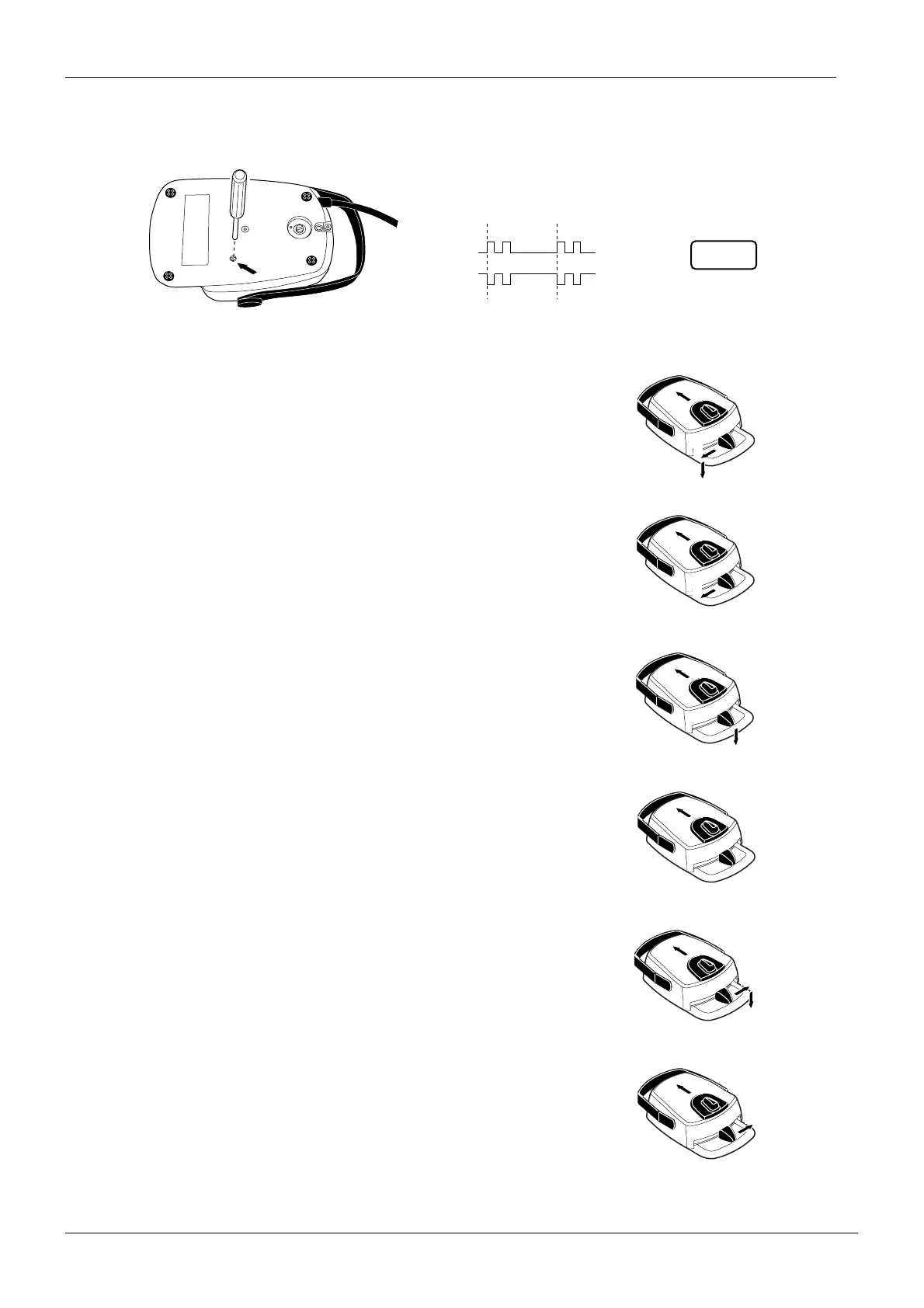

Calibrating the foot control
a) Enter foot control calibration mode.
b) Move the foot control pedal to the leftmost position.
Press the pedal down and hold. While holding,
move the chair control briefly to the ‘chair up’
direction. Release the foot control pedal.
c) Move the foot control pedal to the leftmost position
and hold. While holding, move the chair control
briefly to the ‘chair up’ direction. Release the foot
control pedal.
d) Press the foot control pedal downwards and hold.
While holding, move the chair control briefly to
the ‘chair up’ direction. Release the foot control
pedal.
e) Remain the foot control pedal at the center position.
Move the chair control briefly to the ‘chair up’
direction.
f) Move the foot control pedal to the rightmost position.
Press the pedal down and hold. While holding,
move the chair control briefly to the ‘chair up’
direction. Release the foot control pedal.
g) Move the foot control pedal to the rightmost position
and hold. While holding, move the chair control
briefly to the ‘chair up’ direction. Release the foot
control pedal.
h) Exit foot control calibration mode.
BLINKING SEQUENCE OF
THE INDICATOR LIGHT
on
off
on
off
Normally
The unit suggests the first
pedal position to determine
on the display (left down).
Calibration
mode
Sequence
FC.Ld
1
2
3
1
2
1
2
1
2
1
1
2
3
1
2

Planmeca Compact I Specifications

General

Spittoon	Yes
Operating Light	LED
Imaging Technology	Digital
X-ray Tube Voltage	60-70 kV
X-ray Tube Current	7 mA
Focal Spot Size	0.8 mm
Exposure Time Range	3.2 s
Power Supply	50/60 Hz
