Planmeca Compact I - Page 221

2 3 4 5
1
1 2 3 4 5
WATER
STERILE WATER
AIR
water
spray
air
spray
Syringe
control
valve
air
drive
air exhaust
A
B
C
A
B
C
A
B
C
A
B
C
From spittoon
A
B
C
Sterile
instrument
water
PLANMECA OY
Asentajankatu 6,
00880 Helsinki Finland
Tel +358 9 759 05500
Fax +358 9 759 05555
www.planmeca.com
05.02.2003

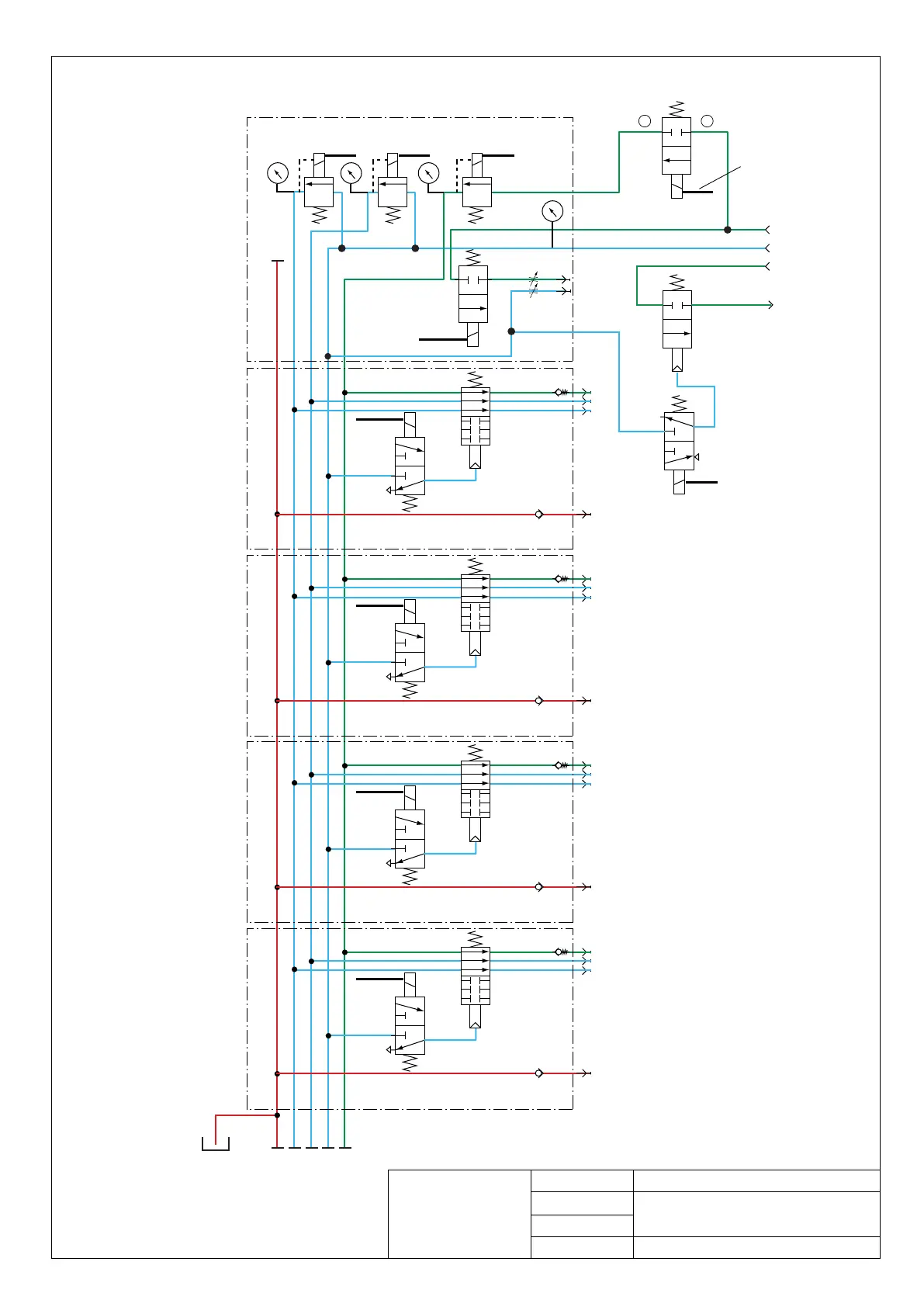

PNEUMATICAL DIAGRAM
Designed
S.Jänkävaara
P.Peräsaari / M.Jarva
Drawn
P.Peräsaari / M.Jarva
Checked
Date
PLANMECA COMPACT instrument console
with Sterile Water System
Rev.D
P2
P3
P4
P9
P13
P15
P17
P19
Instr.4
control
valve
Instr.3
control
valve
Instr.2
control
valve
Instr.1
control
valve
P9
D
D
D
D
12
PCB 115-10-18-A
Connector J2
PCB 115-10-18-A
Connector J1
