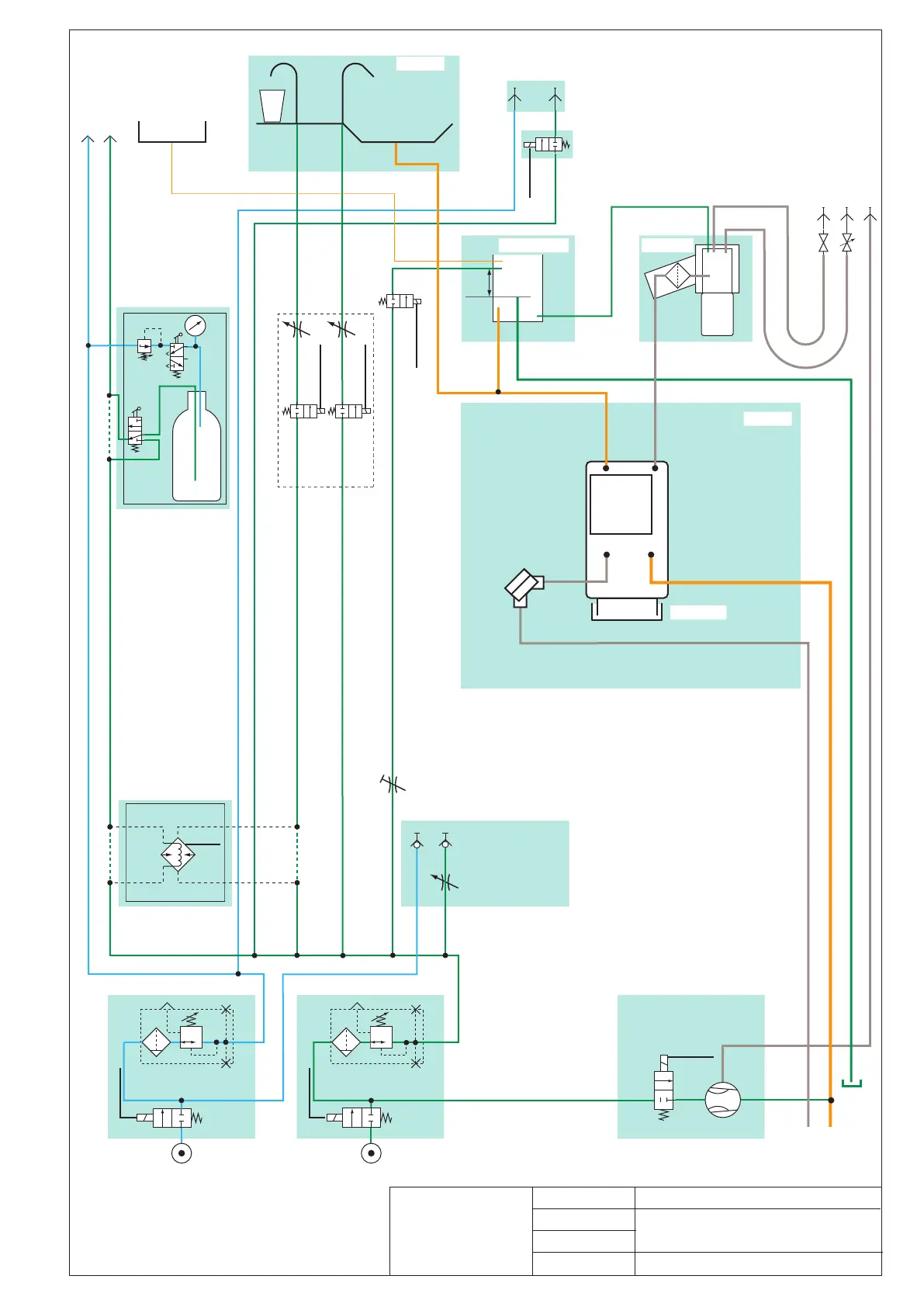

02.01.2008 PNEUMATICAL DIAGRAM
PLANMECA COMPACT with Dürr CAS1 amalgam
separating system
Rev.E
J.Fröjdman
S.Jänkävaara
J.Fröjdman
Date
Designed
Drawn
Checked
Instrument
Flushing
OPTIONAL NURSE
SYRINGE
CUP FILLER
AIR WATER
OPTIONAL EJECTOR
2 cm
Amalgam
collector
Suction tubes
Water collector
Spittoon
A B
Coarse filter
Drain Ø 19 mm Suction Ø 19 mm Water collector overflow tube
P16 Green P16 Blue
P16 Yellow
P16 Grey
P9 Red
AIR 500 - 700 KPA WATER 450 - 700 KPA
OPTIONAL
WATER
HEATER
P14 White
To instrument console
Air Water
BOWL RINSE
P16 White
RINSE
P16 Red
Dürr CAS1
separator
Dürr Place
selector valve
Separator
Deposit cup
OPTIONAL
AIR
QUICK CONNECTOR
OPTIONAL
WATER
QUICK CONNECTOR
OPTIONAL CLEAN /
STERILE WATER
SYSTEM
