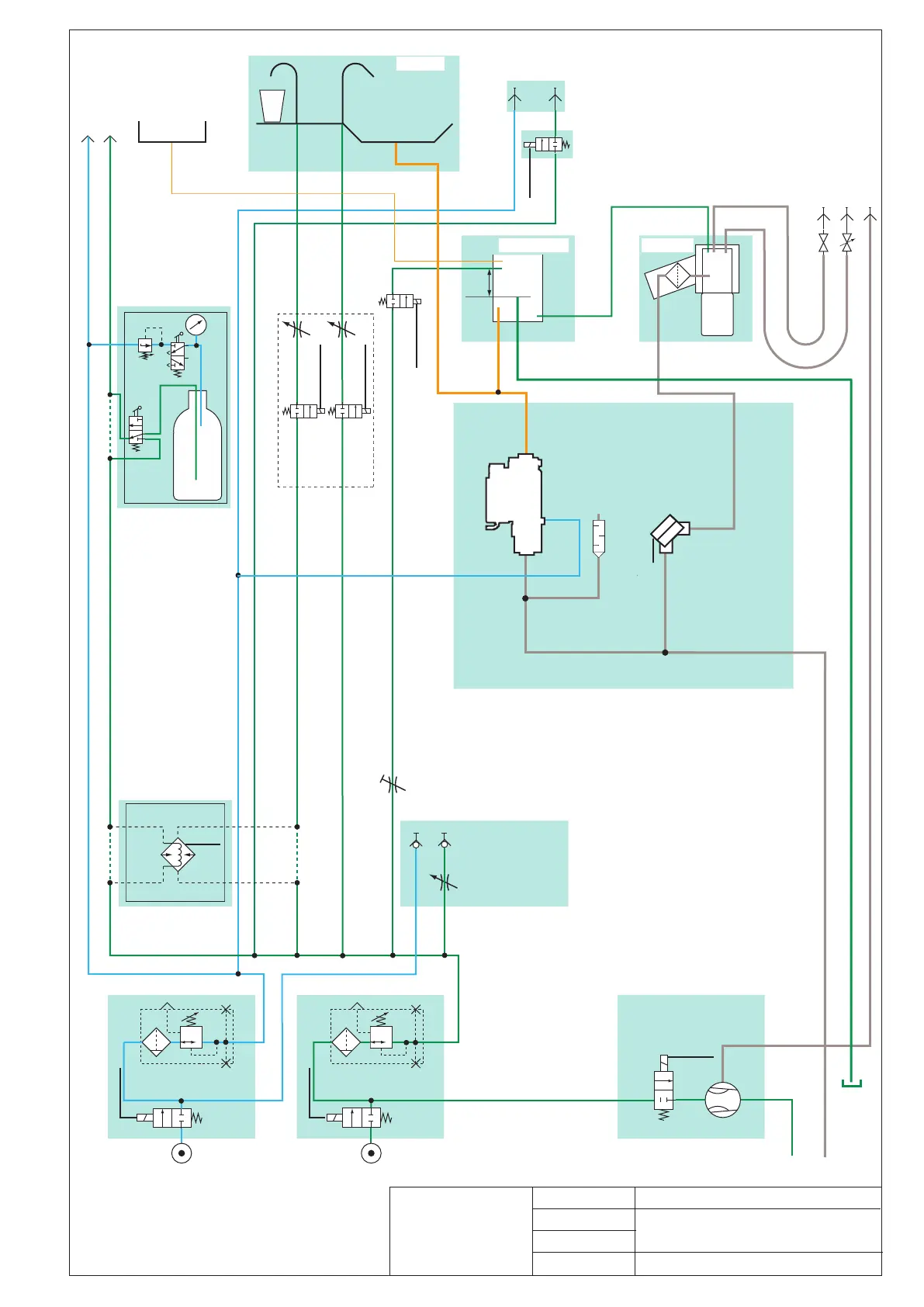

02.01.2008 PNEUMATICAL DIAGRAM
PLANMECA COMPACT with Dürr VSA system
Rev.E
J.Fröjdman
S.Jänkävaara
J.Fröjdman
Date
Designed
Drawn
Checked
Instrument
Flushing
OPTIONAL NURSE
SYRINGE
CUP FILLER
AIR WATER
OPTIONAL EJECTOR
Note: Separate connection
to drainage system required
for optional Ejector
2 cm
Amalgam
collector
Suction tubes
Water collector
Spittoon
A B
Coarse filter
Water collector overflow tube
P16 Green P16 Blue
P16 Yellow
P16 Grey
P9 Red
AIR 500 - 700 KPA WATER 450 - 700 KPA
OPTIONAL
WATER
HEATER
P14 White
To instrument console
Air Water
BOWL RINSE
P16 White
RINSE
P16 Red
Dürr VSA
system
Suction Ø 25 mmTo VSA suction pump
P7 Green
Drain
OPTIONAL
AIR
QUICK CONNECTOR
OPTIONAL
WATER
QUICK CONNECTOR
OPTIONAL CLEAN /
STERILE WATER
SYSTEM
