Planmeca Compact I - Page 241

Head Office Planmeca Oy
Asentajankatu 6
00880 Helsinki
Finland
tel.+358 9 759 05500
fax.+358 9 759 05555
www.planmeca.com
e-mail: sales@planmeca.com

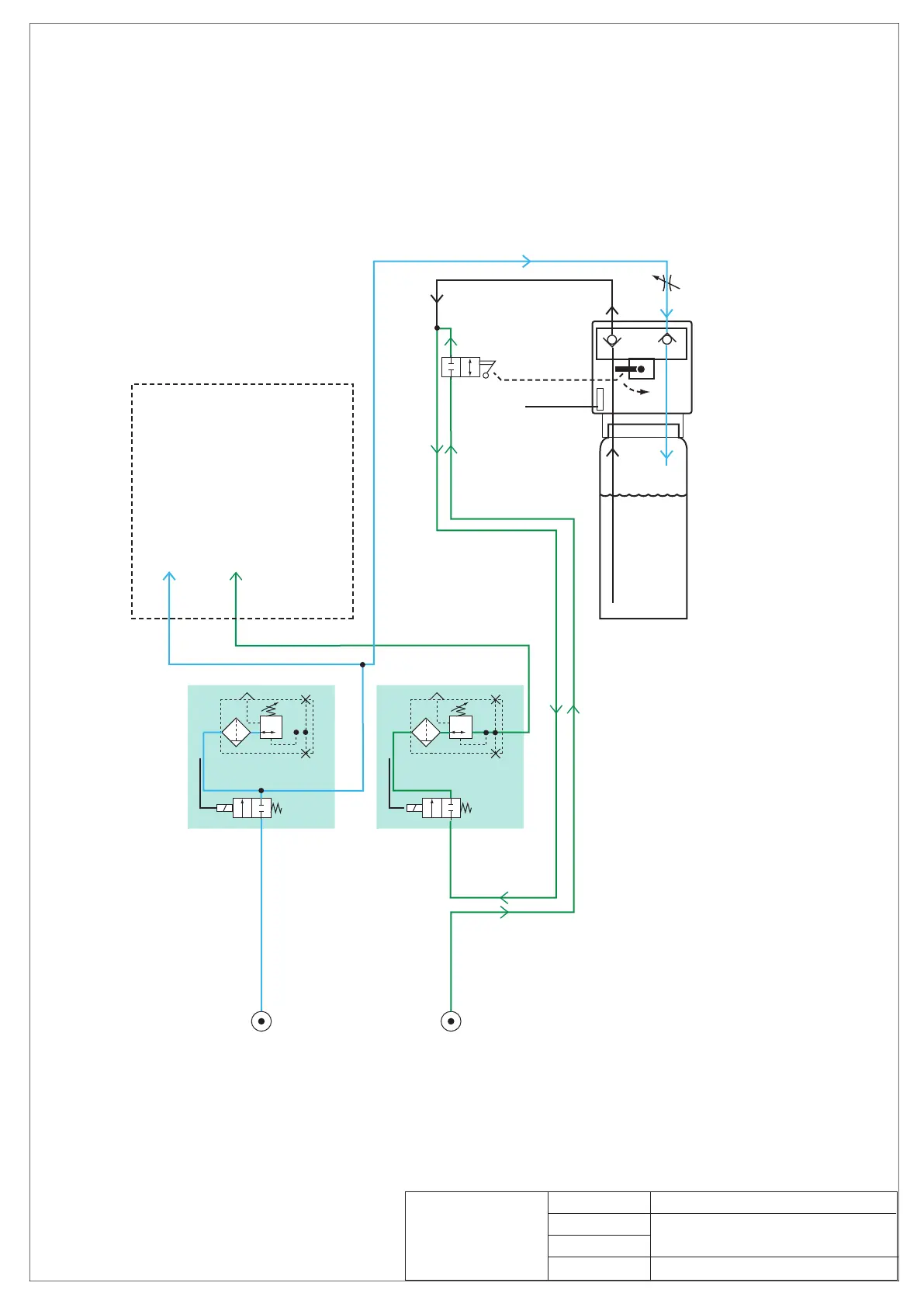

21.09.2005 PNEUMATICAL DIAGRAM
PLANMECA COMPACT i with water line
cleaning system (WCS)
Rev.A
A.Huotari
S.Jänkävaara
Date
Designed
Drawn
Checked
AIR WATER
P16 Green P16 Blue
AIR 500 - 700 KPA WATER 450 - 700 KPA
Sensor P10
Air regulator
1.5bar
Cleaning
system
adapter
container
cleaning
solution
Waterline cleaning
solution
or Main water in
switch
Water / cleaning solutionAir
to Planmeca Compact
dental unit
