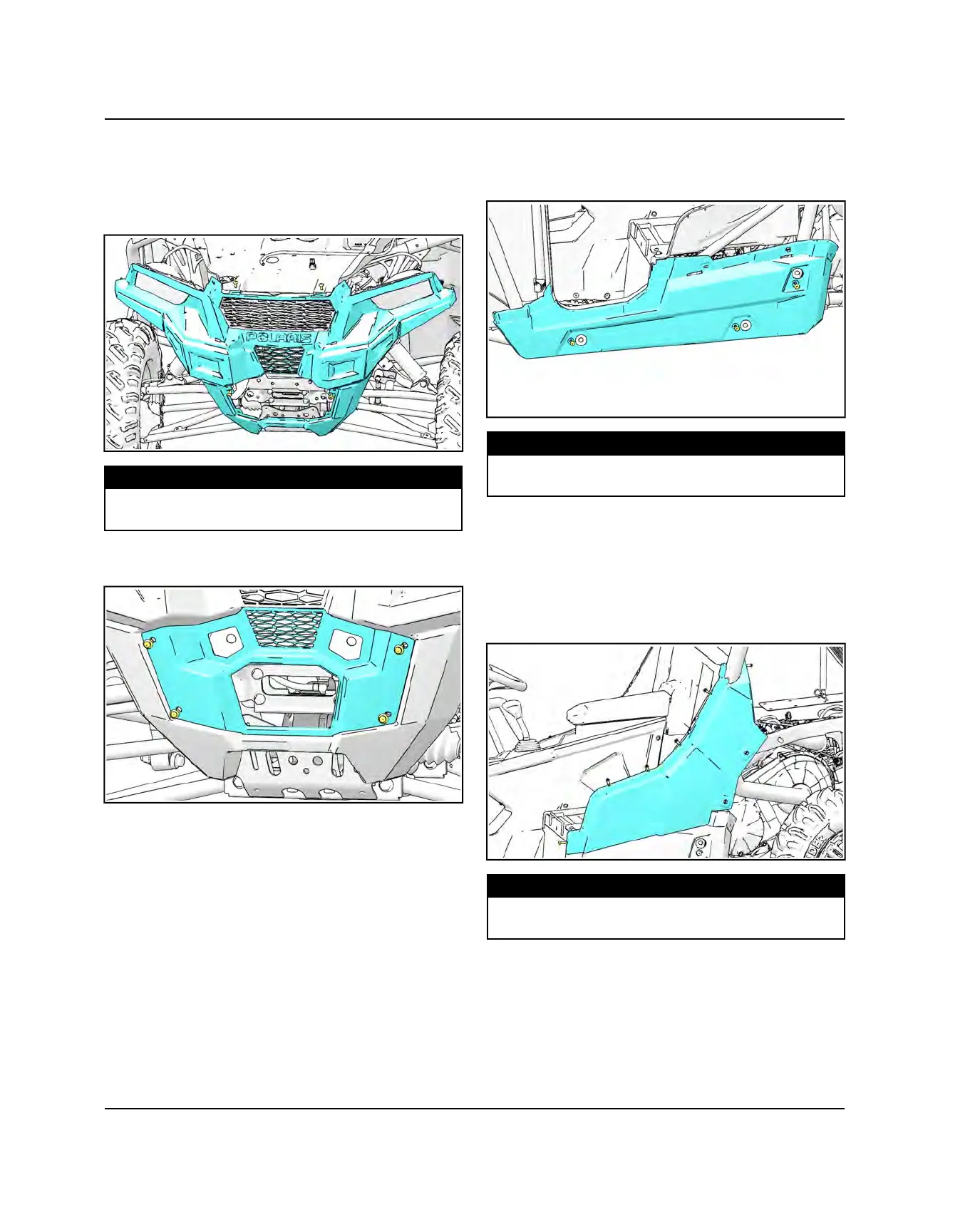

FRONT FASCIA INSTALLATION
1. Install the front fascia on the vehicle and connect the
headlights to the wiring harness. Install the fasteners
holding the upper front fascia to the vehicle and the
hood liner. Torque the fasteners to specification.
TORQUE
Upper Front Fascia Fasteners:
3.5 lb-ft (4.7 Nm)
2. Install the fasteners holding the lower front fascia to
the vehicle.
ROCKER PANEL INSTALLATION
1. Install the fasteners holding the rocker panel to the
vehicle.
TORQUE
Rocker Panel Fasteners:
3.5 lb-ft (4.7 Nm)
REAR FENDER INSTALLATION
1. Install the rear fender on the vehicle. Connect the
clutch intake hose to the LH rear fender and tighten
hose clamp until taught, do NOT overtighten hose
clamp. Install the fasteners holding the rear fender to
the vehicle and rocker panel. Torque the fasteners to
specification.
TORQUE
Rear Fender Fasteners:
3.5 lb-ft (4.7 Nm)
