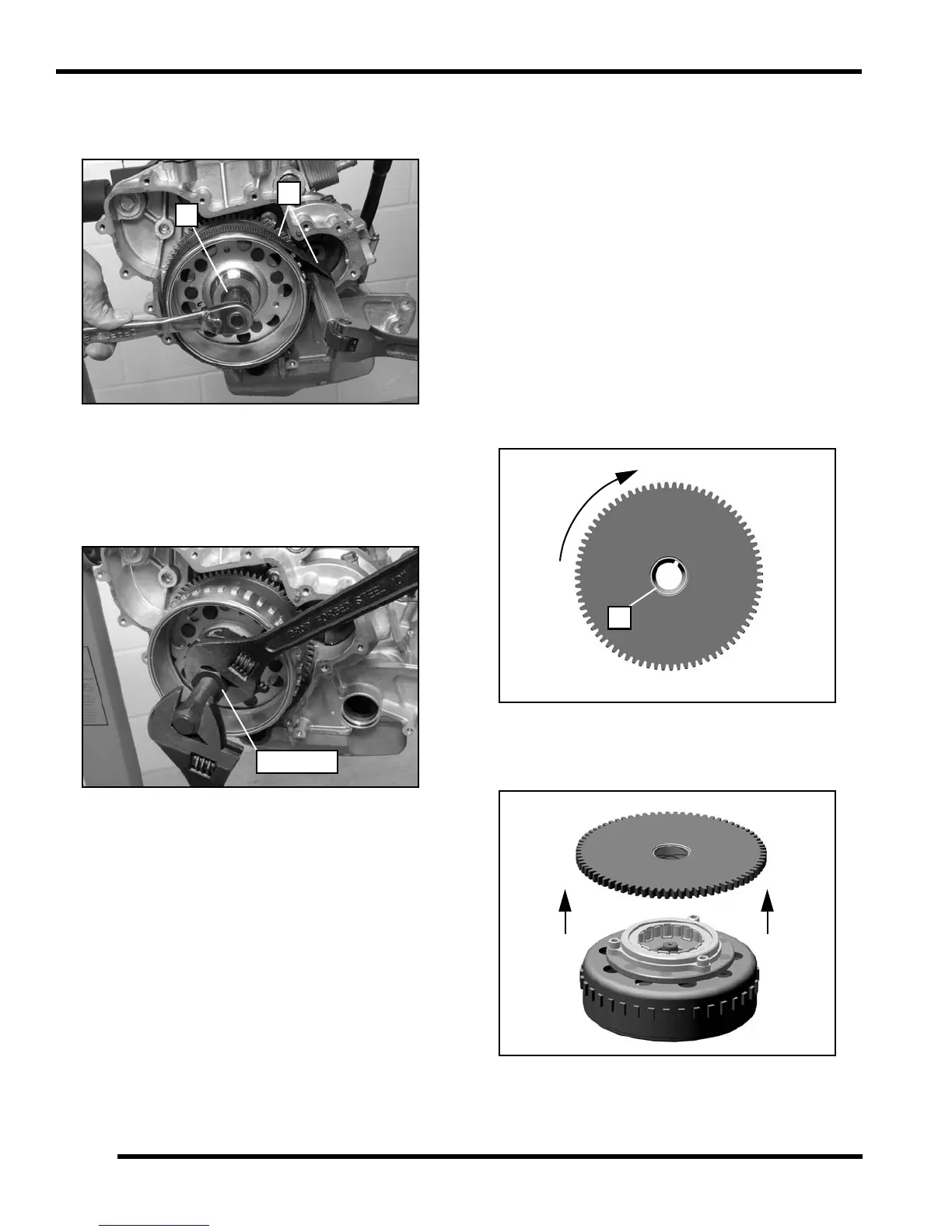

4. Using a commercially available strap wrench (D), hold
the flywheel and remove the flywheel retaining bolt
(E).
5. Fully install Flywheel Puller (PA-49316) on the
threads of the flywheel (left hand thread - turn flywheel
puller counterclockwise to install).
6. Hold puller body and tighten the center bolt to remove
the flywheel.
Starter One-Way Clutch Inspection
NOTE: The starter one-way clutch can be serviced
with the engine installed in the chassis.
1. Remove the stator cover and flywheel (see “Stator
Cover Removal / Inspection” and “Flywheel
Removal”).
2. Place flywheel on a work bench with the one-way
clutch facing up. Grasp clutch gear and rotate
clockwise. It should turn smoothly without binding.
3. Rotate one-way gear counterclockwise. The gear
should immediately lock in position and not slip.
4. Inspect the one-way gear bushing (A) for wear or
galling. If service is required, refer to “Starter One-
Way Clutch Disassembly”.
Starter One-Way Clutch Disassembly
1. Lift up to remove starter one-way gear.
