7.38
FINAL DRIVE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
18. Pull the boot over the joint and position the boot lips
into the grooves on the joint housing and shaft. Make
sure the boot is not dimpled or collapsed.
19. Install and tighten the small clamp using the
appropriate clamp tool.
20. Pull out on the drive shaft to center the joint in the
housing. Slide a straight O-ring pick or a small slotted
screw driver between the large end of the boot and the
joint housing and lift up to equalize the air pressure in
the boot.
21. Position the boot lip in its groove. Install and tighten
the large clamp using the appropriate clamp tool.

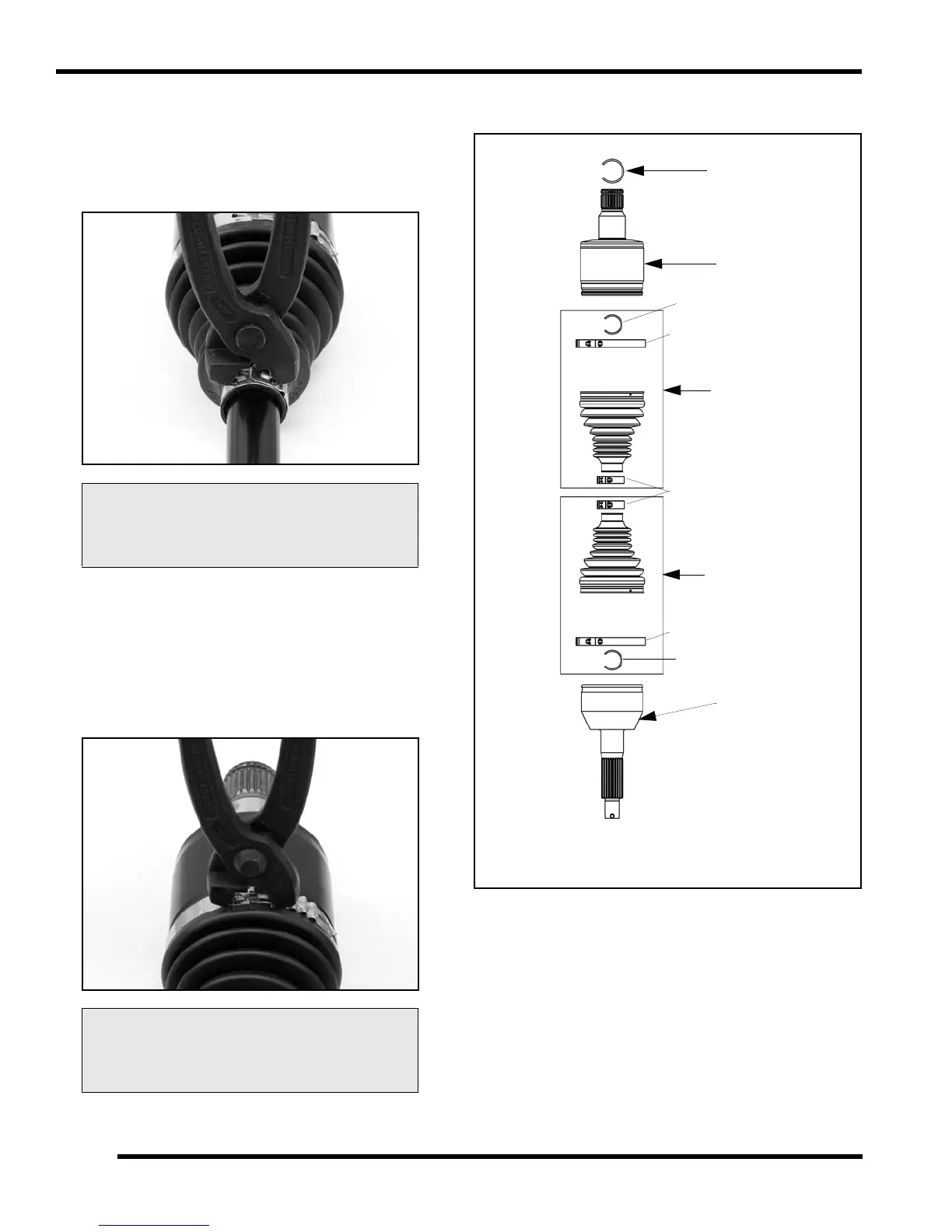

Drive Shaft Exploded View
Axle Boot Clamp Tool: PU-48951
or
CV Boot Clamp Pliers: 8700226
Axle Boot Clamp Tool: PU-48951
or
CV Boot Clamp Pliers: 8700226
CV Joint
Plunging
Spring Ring
Gear Side
Boot Kit
Wheel Side
Boot Kit
Joint
Spring Ring
Large Clamp
Small Clamp
Spring Ring
Large Clamp
Drive shaft design may
differ from what is shown
