3.8
ENGINE / COOLING
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

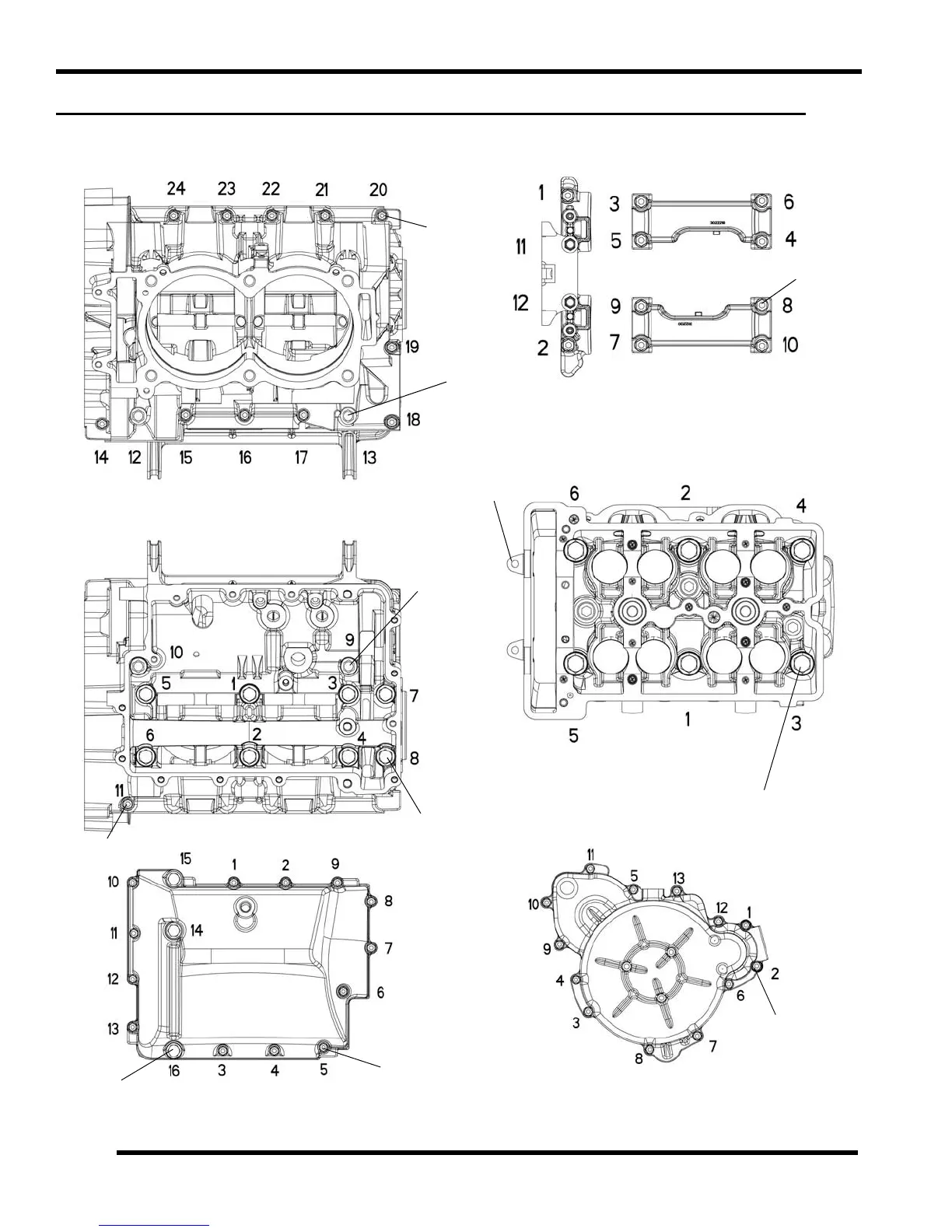

ENGINE DETAIL - TORQUE VALUES / SEQUENCES / ASSEMBLY NOTES
Main Engine Components - Torque Specification and Sequence
26 ft-lbs
(35 Nm)
Step 1: 9 ft-lbs (12 Nm)
9 ft-lbs
(12 Nm)
7 ft-lbs
(10 Nm)
26 ft-lbs
(35 Nm)
9 ft-lbs
(12 Nm)
9 ft-lbs
(12 Nm)
Step 1: 9 ft-lbs (12 Nm)
Step 2: 26 ft-lbs (35 Nm)
Step 3: 180
° (1/2 turn)
7 ft-lbs
(10 Nm)
26 ft-lbs
(35 Nm)
CAM CARRIER
TORQUE SEQUENCE
CRANKCASE SPLIT-LINE
TORQUE SEQUENCE
SUMP COVER
TORQUE SEQUENCE
STATOR COVER
TORQUE SEQUENCE
7 ft-lbs
(10 Nm)
CYLINDER HEAD
TORQUE SEQUENCE
Step 3: 90
° (1/4 turn)
Step 2: 21 ft-lbs (28 Nm)
