ENGINE / COOLING
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

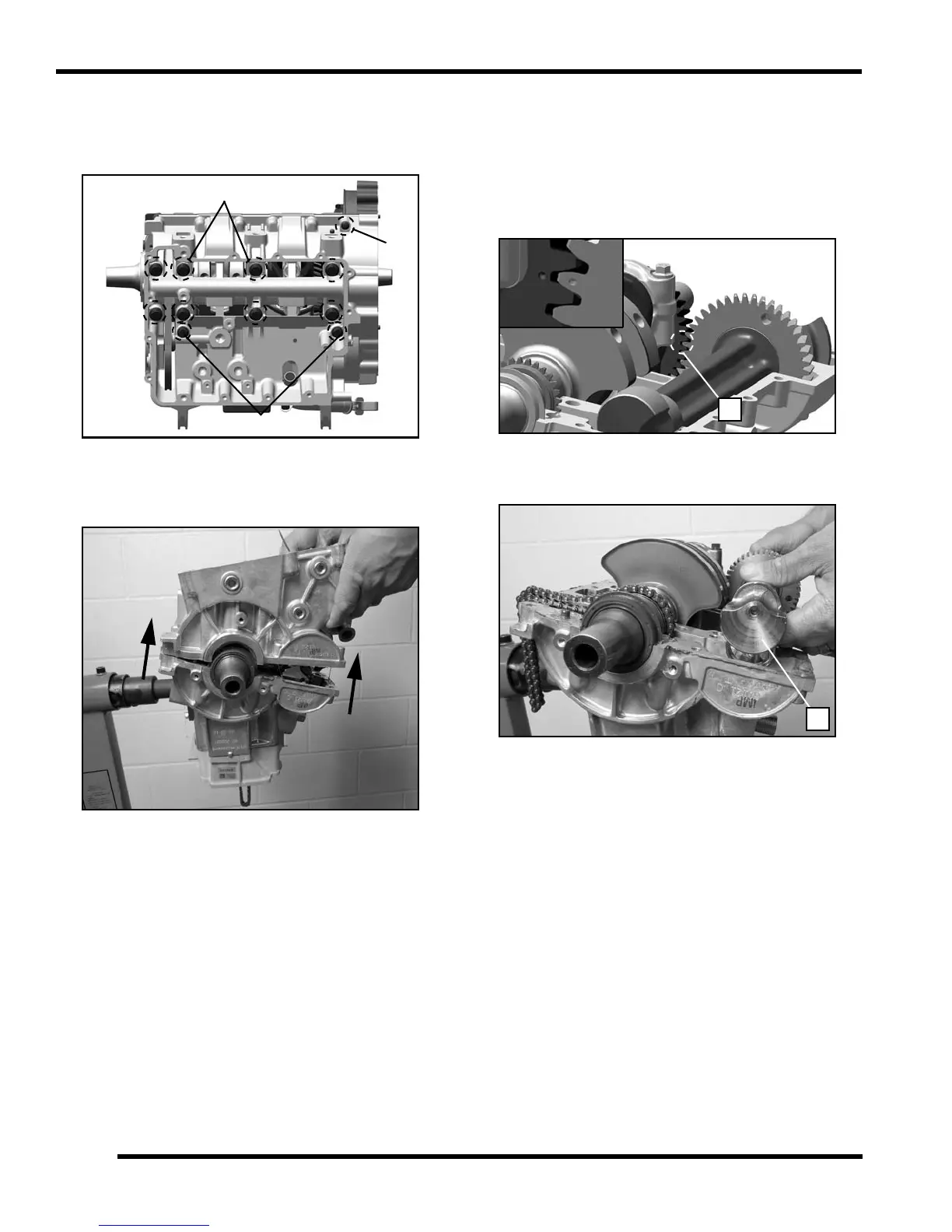

15. Rotate the engine so the cylinder is facing down.
16. Remove the (8) M10, (2) M8 and (1) M6 lower
crankcase bolts. Discard the (8) M10 bolts.
17. Tap on the lower crankcase in reinforced areas with
a soft faced hammer to loosen. Carefully lift up and
remove the lower crankcase half.
Balance Shaft Removal / Inspection
1. Perform “Crankcase Disassembly / Inspection”
procedure.
2. Note timing marks (K) on balance shaft and
crankshaft drive gears. Shafts must be properly timed
upon assembly.
3. Carefully rotate the balance shaft (L) and remove it
from the crankcase.
4. Inspect the balance shaft gear teeth for damage.
M10
M6
M8
K
L
