10.11
ELECTRICAL
10
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
SWITCHES / CONTROLS

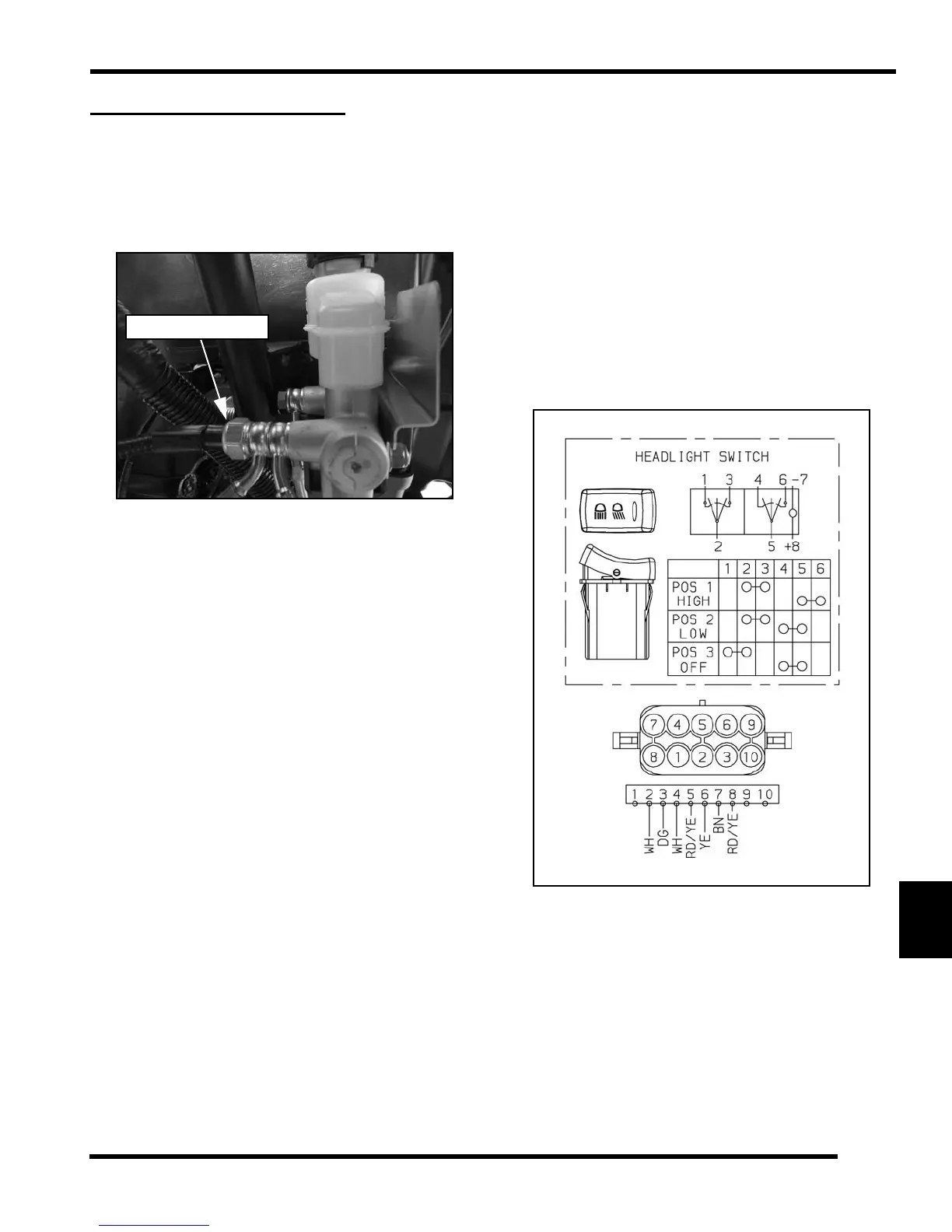

Brake Light Switch
1. The brake light switch is located on the front brake
line banjo bolt of the master cylinder. The brake
switch can be accessed through the left front wheel
well opening.
2. Disconnect wire harness from switch and connect an
ohmmeter across switch contacts. The reading
should be infinite (OL).
3. Apply the brake and check for continuity. If there is no
continuity or if resistance is greater than 0.5 ohms,
clean the switch terminals. Re-test and replace switch
if necessary.
4. For switch replacement, refer to Chapter 9 “Brakes”.
Headlamp Switch
1. Disconnect the headlamp switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (OFF / LOW /
HIGH). If any of the tests fail, replace headlamp switch
assembly.
• Move the switch to HIGH. There should be
continuity between switch pins 2 and 3; 5 and 6.
• Move the switch to LOW. There should be
continuity between switch pins 2 and 3; 4 and 5.
• Move the switch to OFF. There should be
continuity between switch pins 1 and 2; 4 and 5.
NOTE: Pins 7 and 8 provide power and ground to
light the switch lamp.
