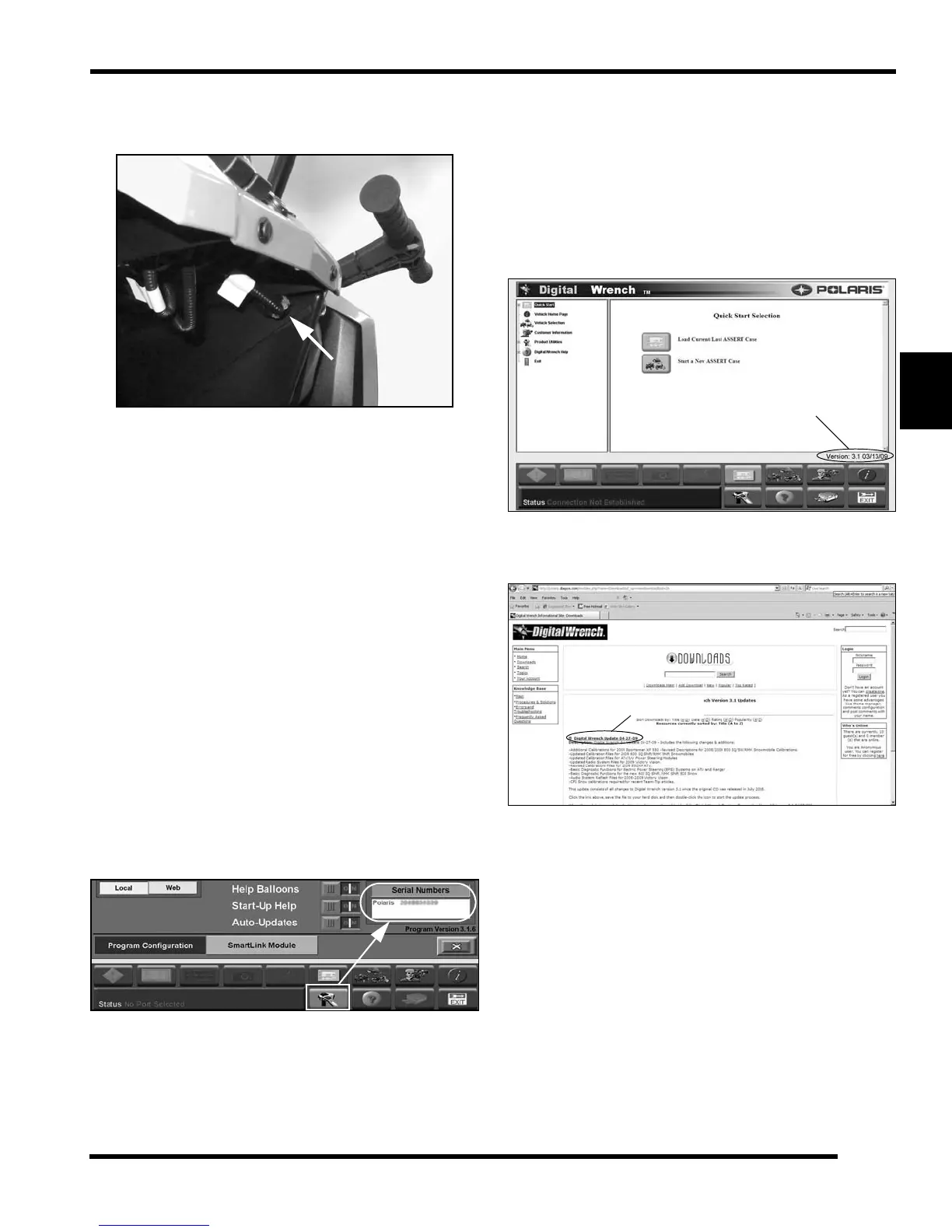

Digital Wrench® - Diagnostic Connector
Located under the dash connected to a sealed plug.
Follow these steps to connect the diagnostic interface
cable to the vehicle to allow Digital Wrench® use:
1. Assemble the SmartLink Module and attach the PC
Interface Cable to your laptop (see page 4.3).
2. Remove the protective cap from the Digital Wrench®
connector.
3. Connect the Vehicle Interface Cable to the Digital
Wrench® diagnostic connector.
4. Turn the ignition key to the ‘ON’ position, select the
appropriate vehicle and wait for the status to display
‘Connected’ in the lower left corner of the screen.
5. Once connected, proceed with using Digital
Wrench®.
Digital Wrench® Serial Number Location
Open the configuration screen by clicking on the wrench
icon. The serial number is located on the right side of the
screen.
Digital Wrench® Version and Update ID
Knowing what Digital Wrench® version and update is
installed will help determine which updates are required.
NOTE: Versions and updates are subject to change.
1. Open the Digital Wrench® software. Locate the
version ID shown on the lower right side of the Digital
Wrench® start-up screen.
2. Proceed to http://polaris.diagsys.com to see if a
newer update is available.
3. If a newer update is available, it should be
downloaded before using Digital Wrench® (see
“Digital Wrench® Updates”).
IMPORTANT: Always operate with the latest update.
