7.13
FINAL DRIVE
7
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

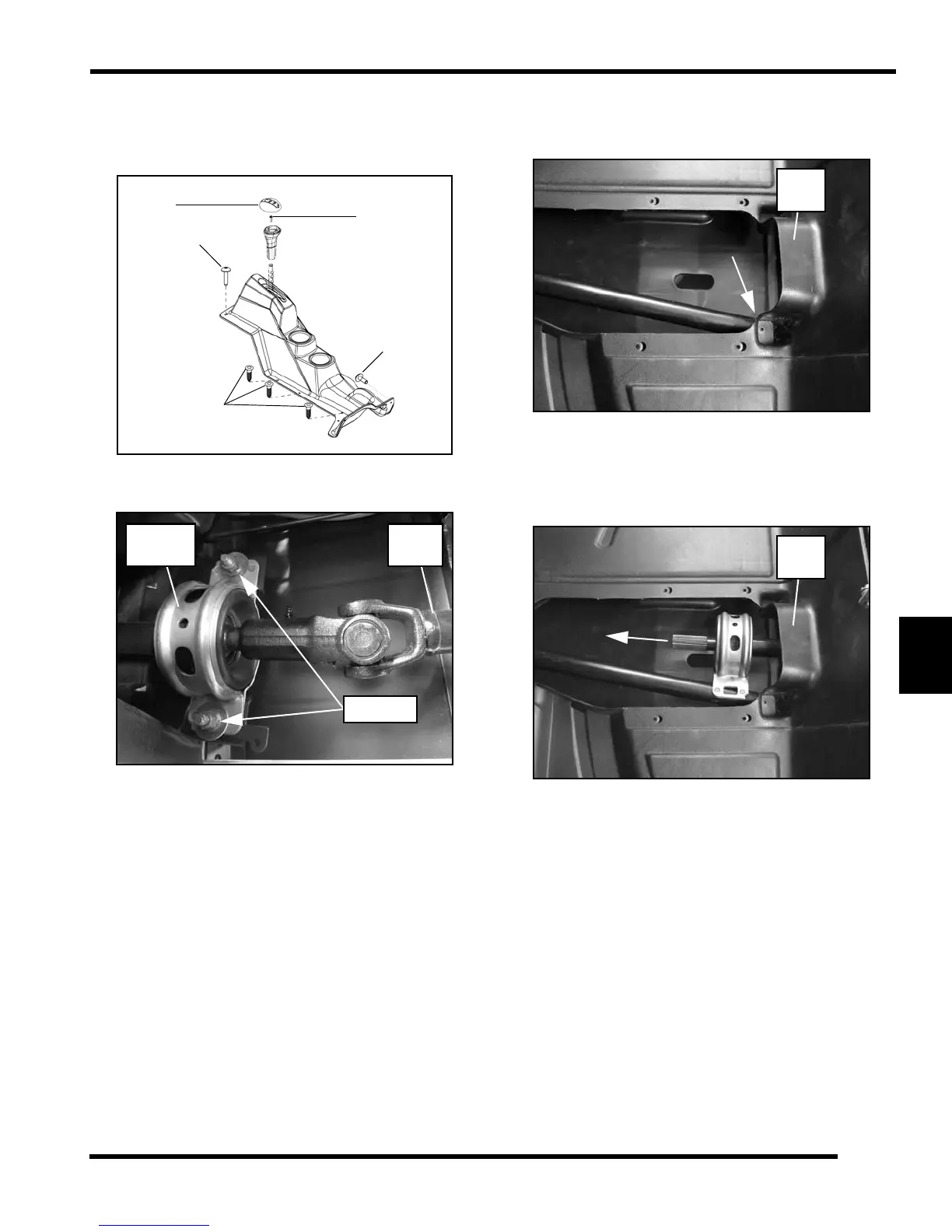

Rear Propshaft Removal (RZR XP 4)
1. Remove both front seats.
2. Remove the gear selector knob and center console.
3. Remove the (2) fasteners retaining the support
bearing to the frame.
4. Remove the (4) bolts retaining the front gearcase.
5. Carefully move the gearcase forward in the frame to
slide the front propshaft off the rear propshaft.
6. Once the front and rear propshafts have been
separated, lift up on the floor and slide the front
propshaft underneath the floor as shown.
7. Slide the rear propshaft forward to remove it from the
transmission output shaft.
8. Lift up on the floor and slide the rear propshaft through
the floor opening as shown.
9. Remove the (4) fasteners retaining the front portion of
the vehicle skid plate. Allow the front portion of the
skid plate to hang down for propshaft removal.
10. Pull the rear propshaft towards the front of the vehicle.
Torx Screw
Torx Screws
Cap
Screws
Torx Screws
Remove
Support
Bearing
Front
Shaft
To Next Page
