9.10
BRAKES
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
PARKING BRAKE (INT’L MODEL)

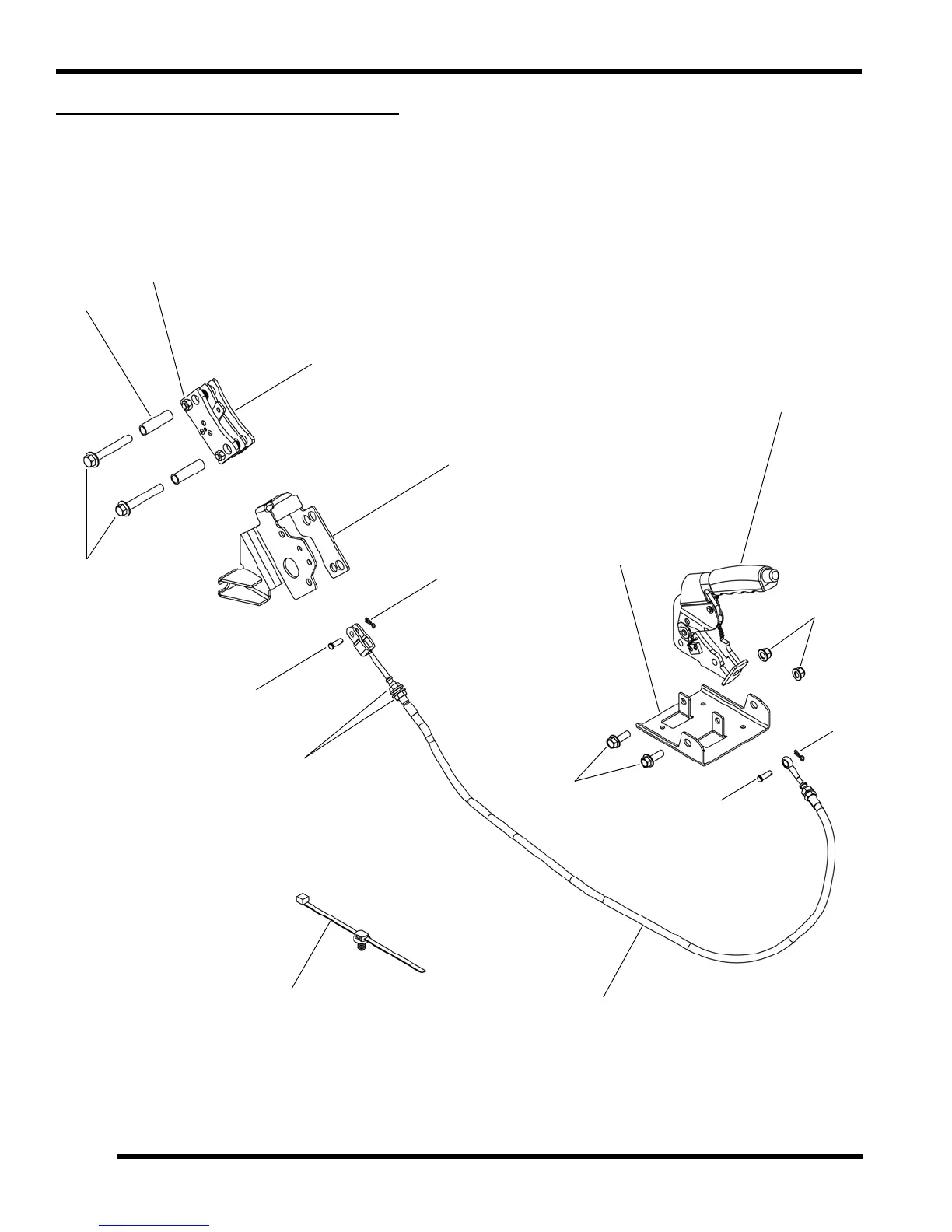

Exploded View
Parking Brake
Lever
Nuts
Clip
Cable
Parking Brake
Caliper
Parking Brake Caliper / Shift Cable
Bolts
Clevis
Pin
Mounting
Assembly
16 ft-lbs
(22 Nm)
14 ft-lbs
(19 Nm)
37 ft-lbs
(50 Nm)
Tie Strap
Bolts
Spacer
Clip
Clevis
Pin
Parking Brake Lever
Mount Bracket
Mount Bracket
(50 Nm)
37 ft-lbs
Bolts
