6.16
CLUTCHING (PVT)
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

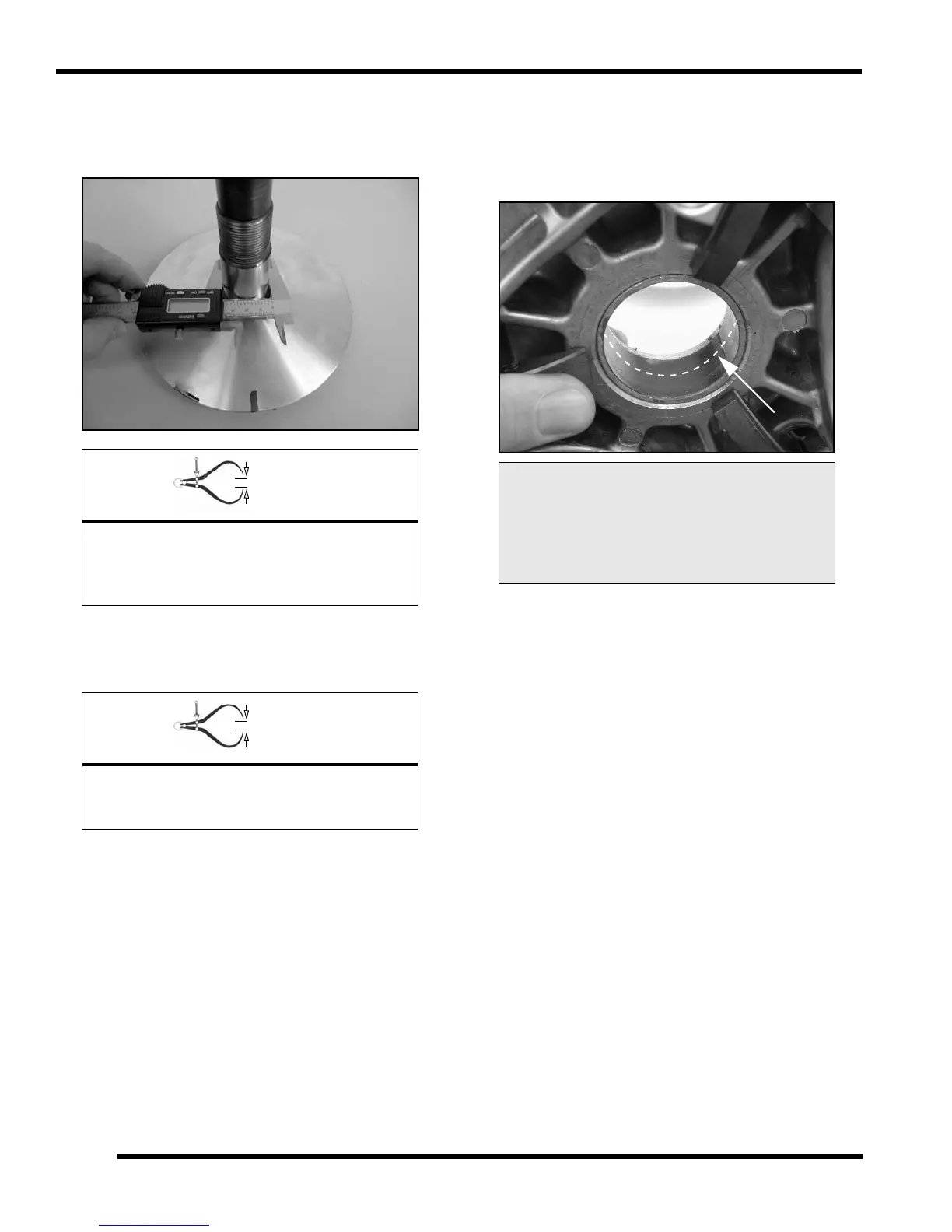

4. Inspect surface of shaft for pitting, grooves or
damage. Measure the outside diameter and compare
to specifications. Replace the drive clutch assembly
if shaft is worn or damaged.
5. Visually inspect the thrust washers for damage.
Measure the thickness and compare to specification.
Replace if worn or damaged.
Moveable Sheave Bushing Inspection
Inspect the Teflon™ coating (arrow) on the moveable
sheave bushing. Inspect both sheaves for signs of wear,
grooving or cracking. De-glaze sheave surfaces with a
3M™ Scotch-Brite Pad if needed.
= In. / mm.
Shaft Diameter:
Standard: 1.3725” - 1.3712”
(34.8615 - 34.8488 mm)
Service Limit: 1.3704” (34.8088 mm)
= In. / mm.
Thrust Washer Thickness:
Standard: .030” (.76 mm)
Service Limit: .025” (.64 mm)
Moveable Sheave Bushing Inspection:
Replace the cover bushing if more brass
than Teflon™ is visible on the bushing.
Refer to bushing replacement
in this chapter.
