6.14
CLUTCHING (PVT)
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

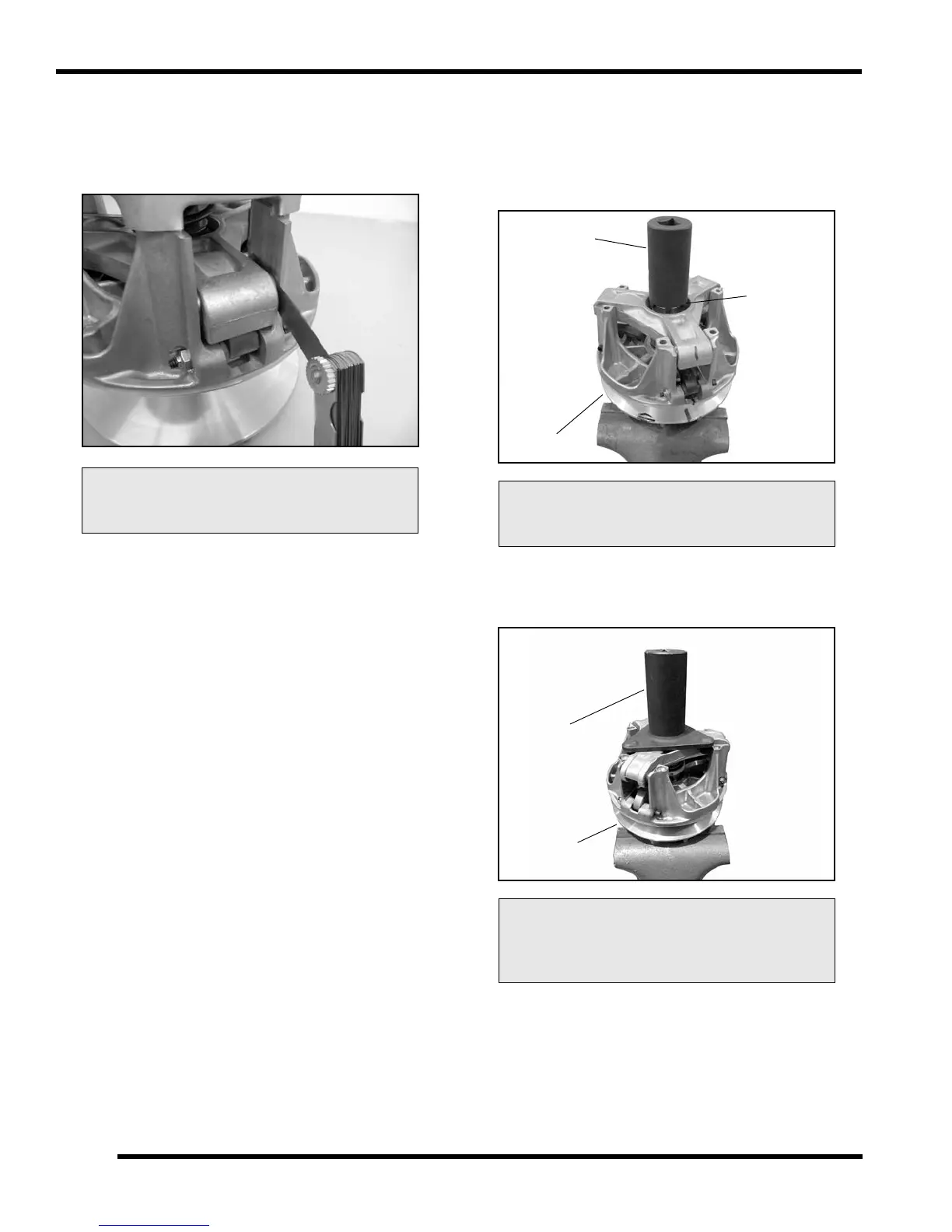

Button To Tower Clearance Inspection
1. Inspect the button to tower clearance as shown.
Replace the drive clutch if clearance is beyond
specification.
2. Inspect the tower sheave surfaces. Replace the drive
clutch if worn, damaged or cracked.
Spider Removal
1. Install clutch onto holding fixture (2871358-A) and
secure in bench vice. Loosen and remove the spider
jam nut (counterclockwise) using the Clutch Spider
Nut Socket (PU-50578).
2. Loosen and remove the spider (counterclockwise)
using Clutch Spider Removal / Installation Tool (PN
2870341).
Button to Tower Clearance:
.000-.012 (.000-.304 mm)
Clutch Spider Nut Socket: PU-50578
Clutch Holding Fixture: PN 2871358-A
Spider Removal / Installation Tool:
PN 2870341
Clutch Holding Fixture: PN 2871358-A
