5.34
BODY / STEERING / SUSPENSION
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

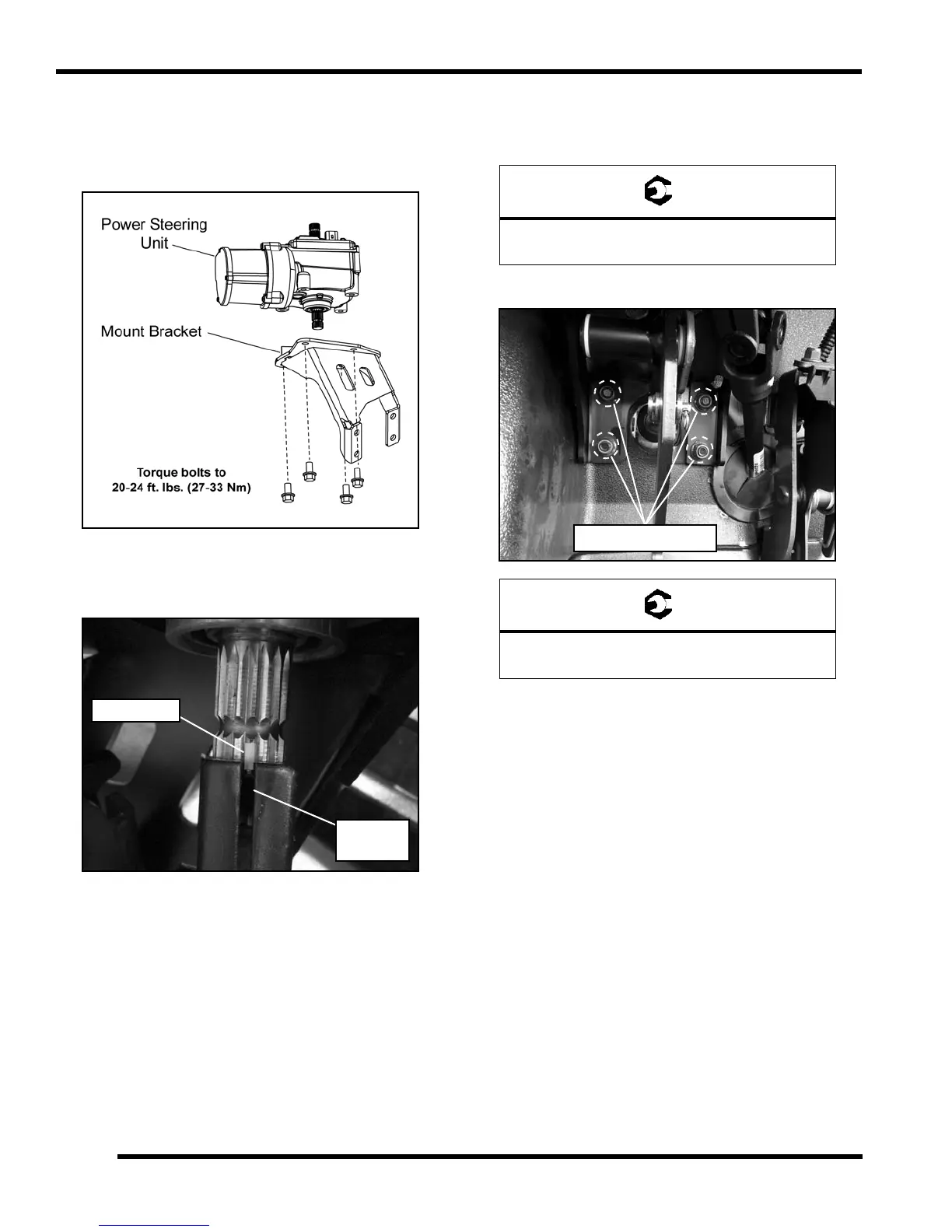

Power Steering Unit Installation
1. If the power steering unit was removed from the
mount bracket, reinstall it prior to vehicle installation.
Torque the mounting bolts to specification.
2. Install the power steering unit into the vehicle and
align the skip-tooth spline on the power steering stub
shaft with the opening in the lower steering shaft.
3. Place the power steering mount bracket over the top
of the brake pedal mount studs and finger tighten the
(4) nuts.
4. Position the lower steering shaft on the power steering
unit stub shaft and install the pinch bolt. Torque to
specification.
5. Torque the (4) mount bracket nuts to specification.
6. Proceed to “Upper Steering Shaft Installation (EPS
Models)” to complete the installation procedure.
Lower Steering Shaft Pinch Bolt:
17 ft-lbs (23 Nm)
Power Steering Unit Mount Bracket Nuts:
16 ft-lbs (22 Nm)
