9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

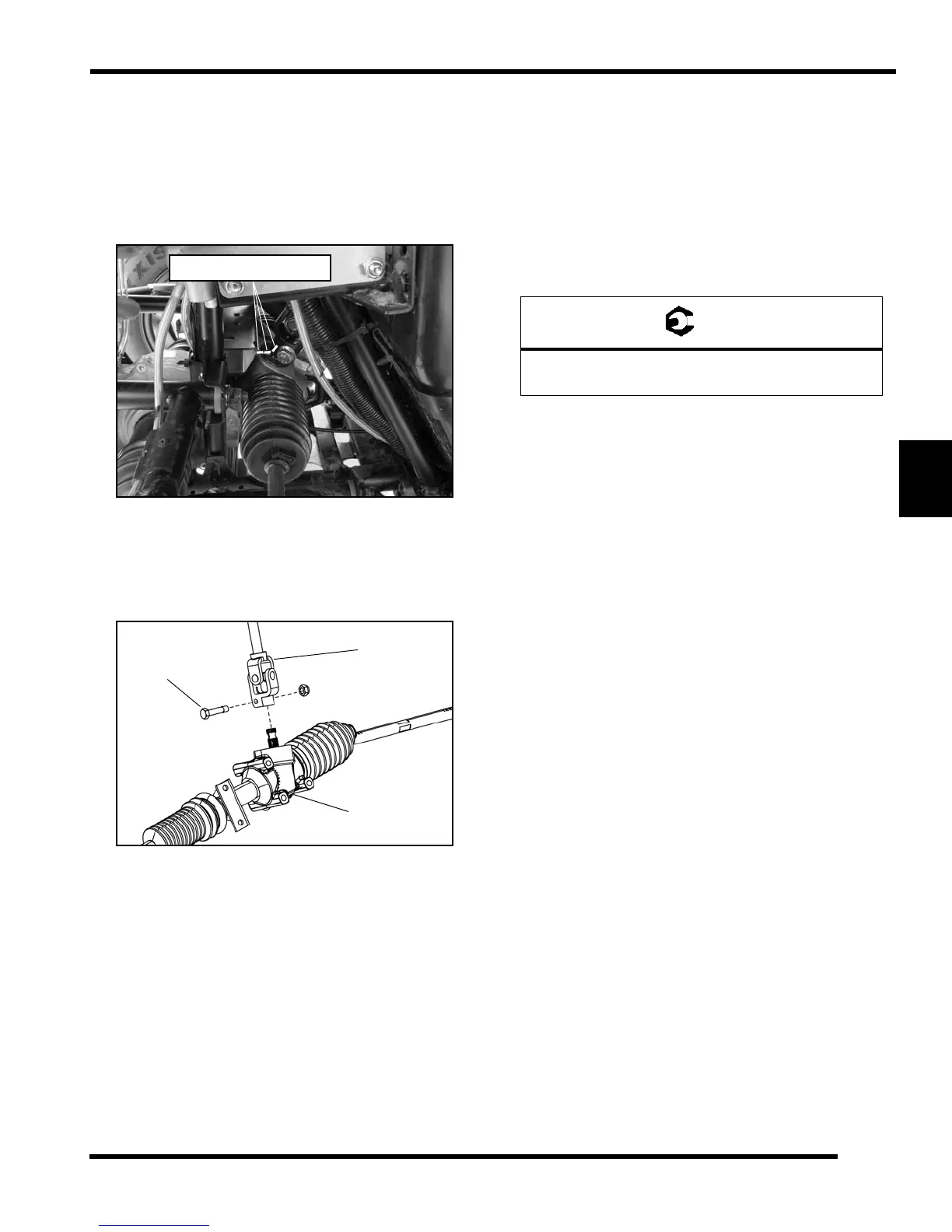

Lower Steering Shaft Removal (EPS Models)
1. Use the steering wheel to position the front wheels so
they point straight ahead.
2. Locate the lower steering shaft through the left front
wheel well. Mark the lower steering shaft, gear box
stub shaft and gear box to aid installation.
3. Remove the power steering unit (see “Power Steering
Unit Removal” procedure).
4. Remove the pinch bolt retaining the lower steering
shaft to the steering gear box assembly.
5. Lift up on the shaft and remove it through the floor
panel.
Lower Steering Shaft Installation
(EPS Models)
1. Install the lower steering shaft onto the gear box and
align the marks made during step 2 of the “Lower
Steering Shaft Removal (EPS Models)” procedure.
2. Install the pinch bolt that retains the lower steering
shaft to the gear box assembly and torque to
specification.
3. Install the power steering unit and reassemble the
vehicle (see “Power Steering Unit Installation”
procedure).
Mark prior to removal
Pinch Bolt
Gear Box
Asm.
Lower
Steering Shaft
= T
Pinch Bolt:
30 ft-lbs (41 Nm)
