FINAL DRIVE
7
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
PROPSHAFT SERVICE

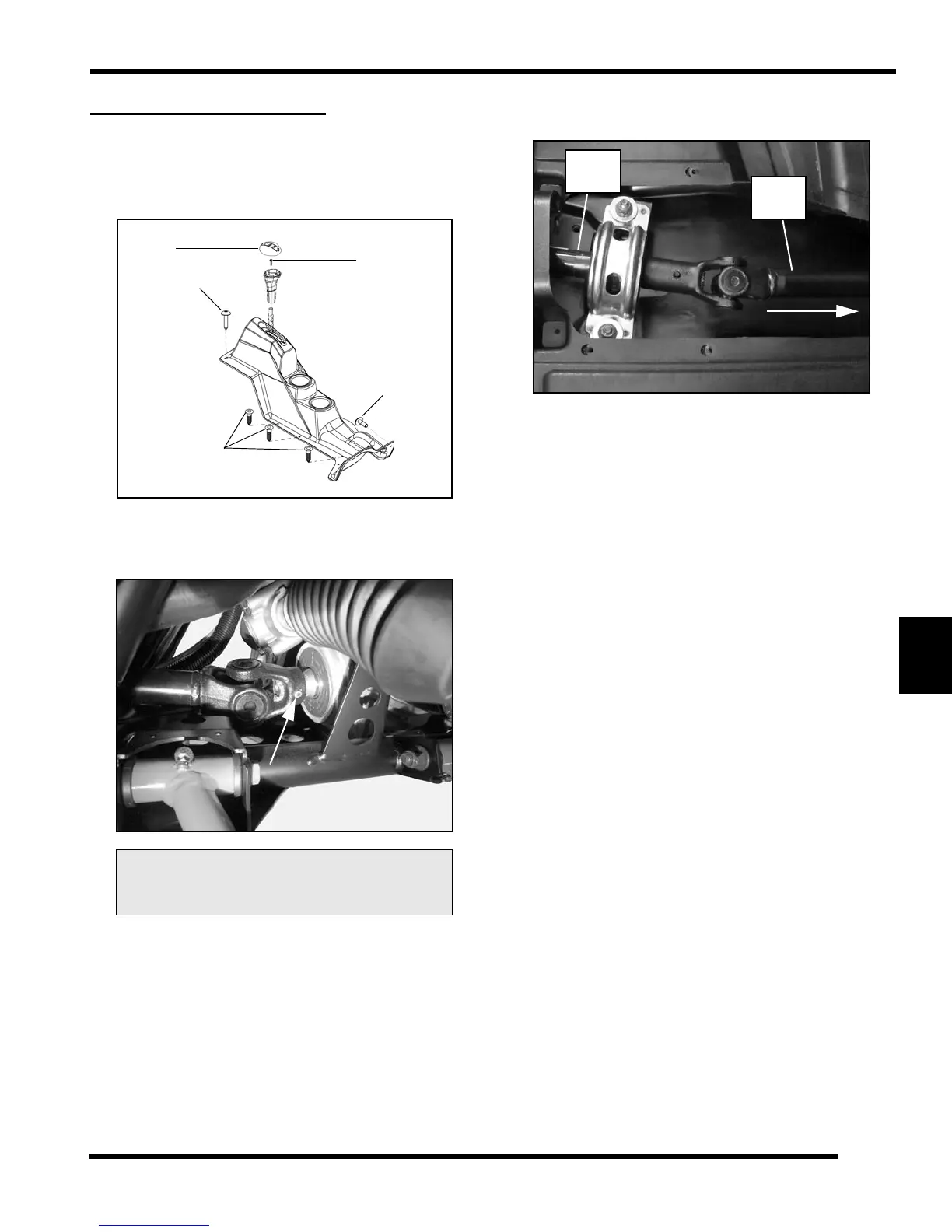

Front Propshaft Removal (RZR XP)
1. Remove both seats and engine service panel.
2. Remove the gear selector knob and center console.
3. Locate the propshaft roll pin and use the Roll Pin
Removal Tool (PN 2872608) to remove the roll pin.
Discard roll pin.
NOTE: Right front wheel can be removed to gain
better access to the propshaft roll pin.
4. Remove the (4) bolts retaining the front gearcase.
5. Carefully move the gearcase forward to remove the
front propshaft from the gearcase input shaft.
6. Slide the front propshaft off the rear propshaft and
remove it from the vehicle.
7. Proceed to “Front Propshaft Installation”.
Roll Pin Removal Tool:
PN 2872608
Torx Screw
Torx Screws
Cap
Screws
Torx Screws
Front
Shaft
Rear
Shaft
