ENGINE / COOLING
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

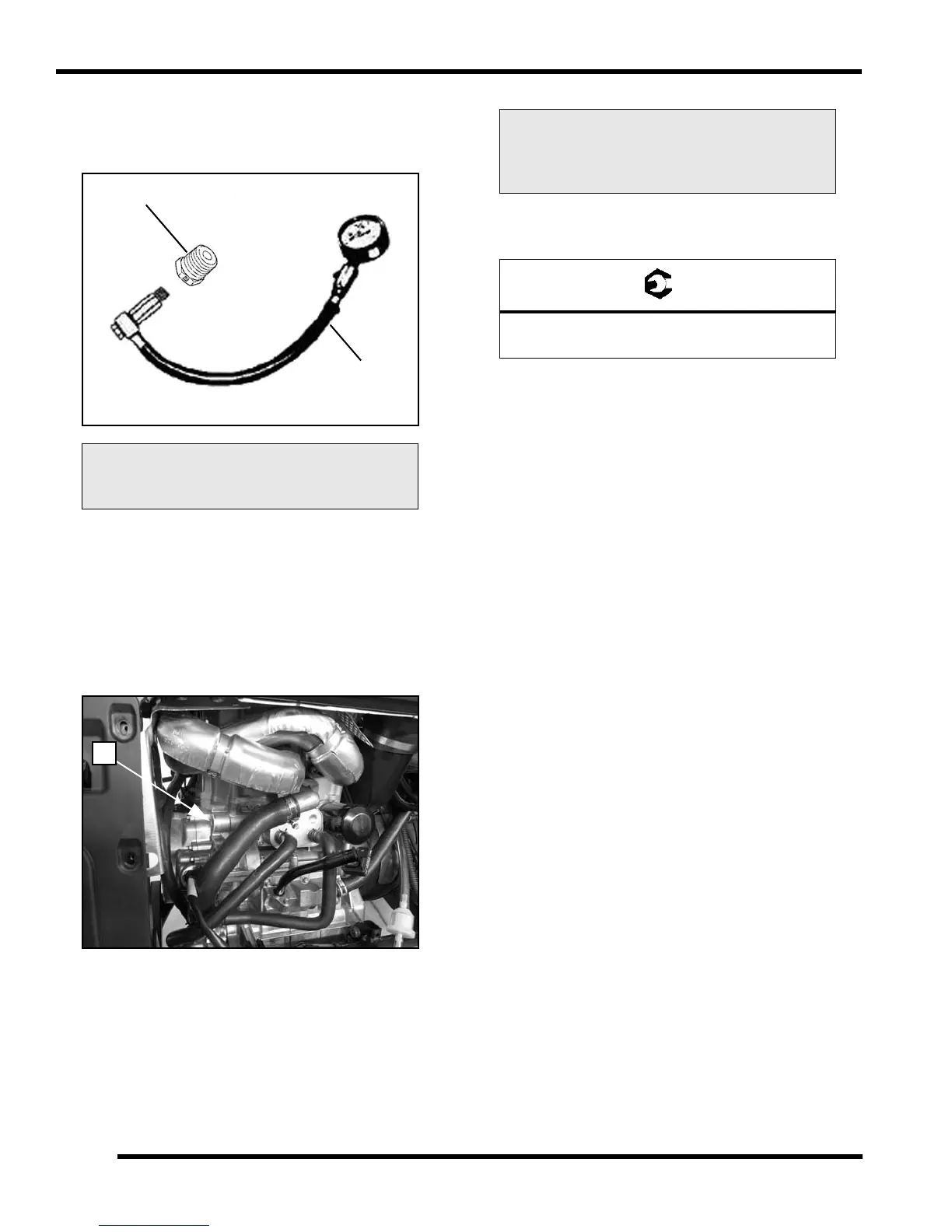

Oil Pressure Test
1. Attach the Oil Pressure Gauge Adapter (PU-50565)
to the Oil Pressure Gauge (PV-43531).
2. Remove the seats, engine service panel, and divider
panel heat shield.
3. Clean the area around the main oil gallery plug (A),
located in the upper crankcase on the MAG side of the
engine.
4. Remove the crankcase gallery plug (A) and insert the
oil pressure adapter.
5. Start engine and allow it to reach operating
temperature, monitoring gauge indication.
NOTE: Test results are based on the use of the
recommended engine oil (Polaris PS-4 Plus or PS-4
Extreme Duty) at operating temperature, and may
vary considerably if any other oil is used or if engine
is not up to temperature.
6. Upon assembly, torque the crankcase gallery plug to
specification.
Oil Pressure Gauge Adapter: PU-50565
Oil Pressure Gauge: PV-43531
Oil Pressure Specification (Engine Hot):
Minimum @ 1200 RPM: 10 PSI
Minimum @ 7000 RPM: 40 PSI
Crankcase Gallery Plug:
11 ft-lbs (15 Nm)
