FINAL DRIVE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

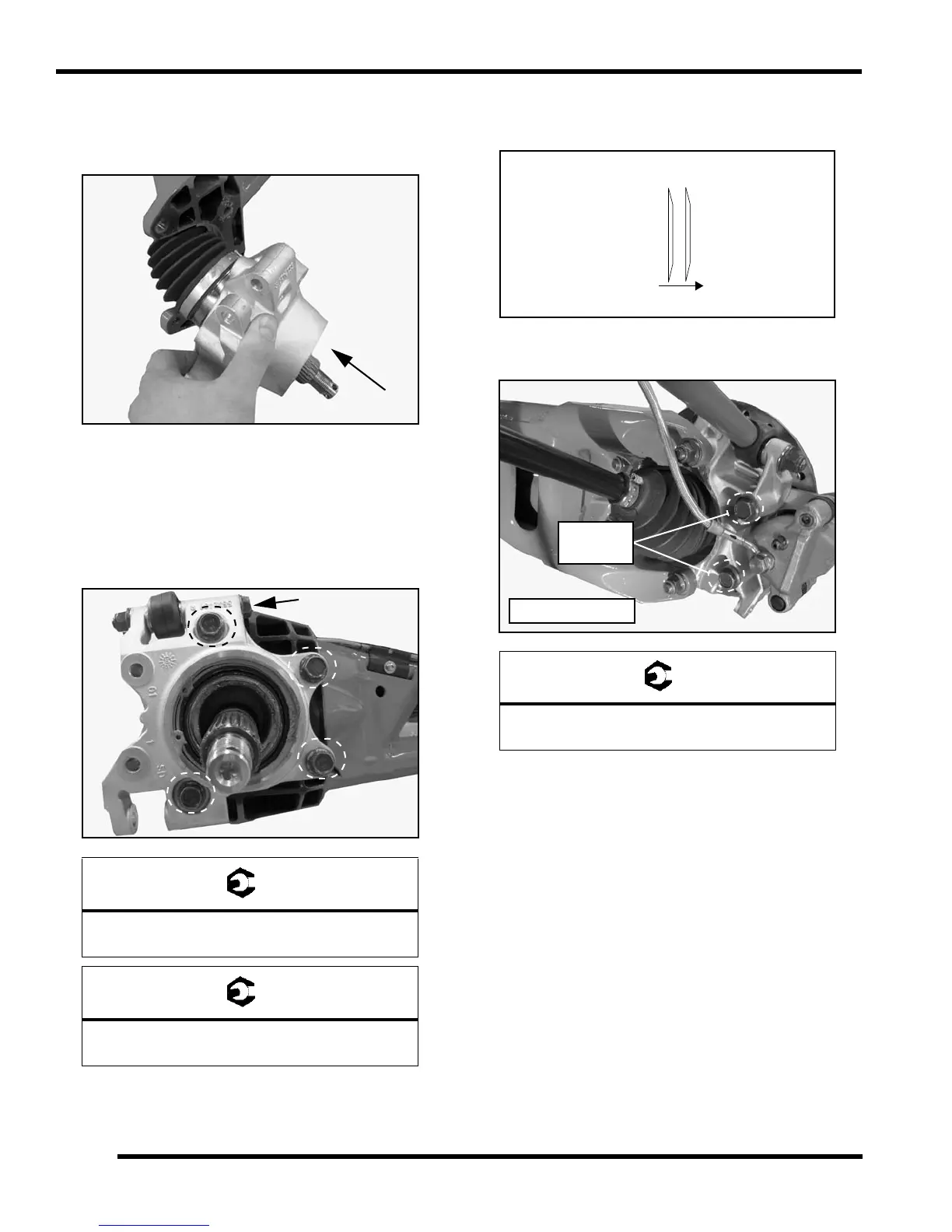

Bearing Carrier Installation
1. Install drive shaft through the backside of the bearing
carrier.
2. Install the (4) fasteners that attach the rear bearing
carrier to the trailing arm. Install the (1) fastener that
attaches the upper radius rod to the bearing carrier.
Torque bolts to specification.
NOTE: Use new nuts upon installation of the rear
bearing carrier.
3. Apply anti-seize to drive shaft splines.
4. Install rear wheel hub assembly, cone washers, and
hand tighten the castle nut. Install washers with
domed side out.
5. Install the rear brake caliper assembly and new bolts.
Torque to specification.
= T
Bearing Carrier to Trailing Arm Bolts:
40 ft-lbs (54 Nm)
= T
Radius Rod to Bearing Carrier Bolts:
45 ft-lbs (61 Nm)
= T
Rear Caliper Mounting Bolts:
40 ft-lbs (54 Nm)
Out
Cone Washers
Wheel
Hub
40 ft-lbs
(54 Nm)
RZR XP Shown
