BODY / STEERING / SUSPENSION
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

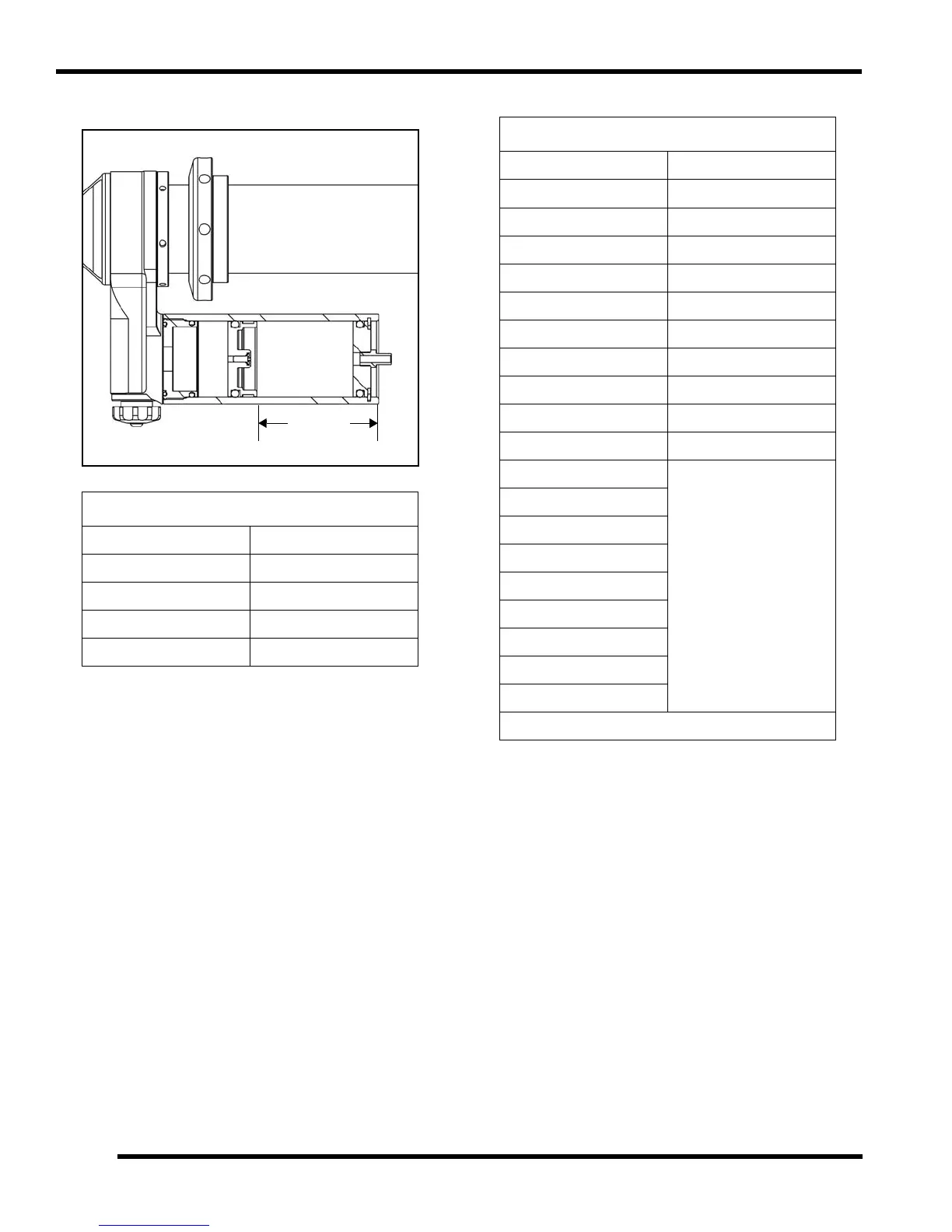

Rear Shock Service Information
SHOCK DESIGN DETAILS
Travel 7.64”
Extended Length 22.75”
IFP Location 3.375” (85.7 mm)
Nitrogen Pressure 200 psi +/- 5%
Gas Shock Oil 2874124 (qt.)
3.375”
IFP Depth
SHOCK VALVING
COMPRESSION REBOUND
1.550 x 0.008 1.450 x 0.008
1.500 x 0.008 1.200 x 0.010
1.450 x 0.008 1.450 x 0.010
1.300 x 0.008 1.300 x 0.010
1.200 x 0.008 1.200 x 0.010
1.100 x 0.008 1.100 x 0.010
1.000 x 0.008 1.000 x 0.010
0.900 x 0.008 0.900 x 0.012
0.800 x 0.008 0.800 x 0.015
1.500 x 0.015 1.000 x .100 Back-Up
1.450 x 0.015
1.300 x 0.015
1.200 x 0.015
1.100 x 0.015
1.000 x 0.015
0.900 x 0.015
0.800 x 0.015
0.700 x 0.015
1.500 x .100 Top-Out
Piston Bleed Orifice: 0.073
