6.25
CLUTCHING (PVT)
6
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
Clutch Assembly

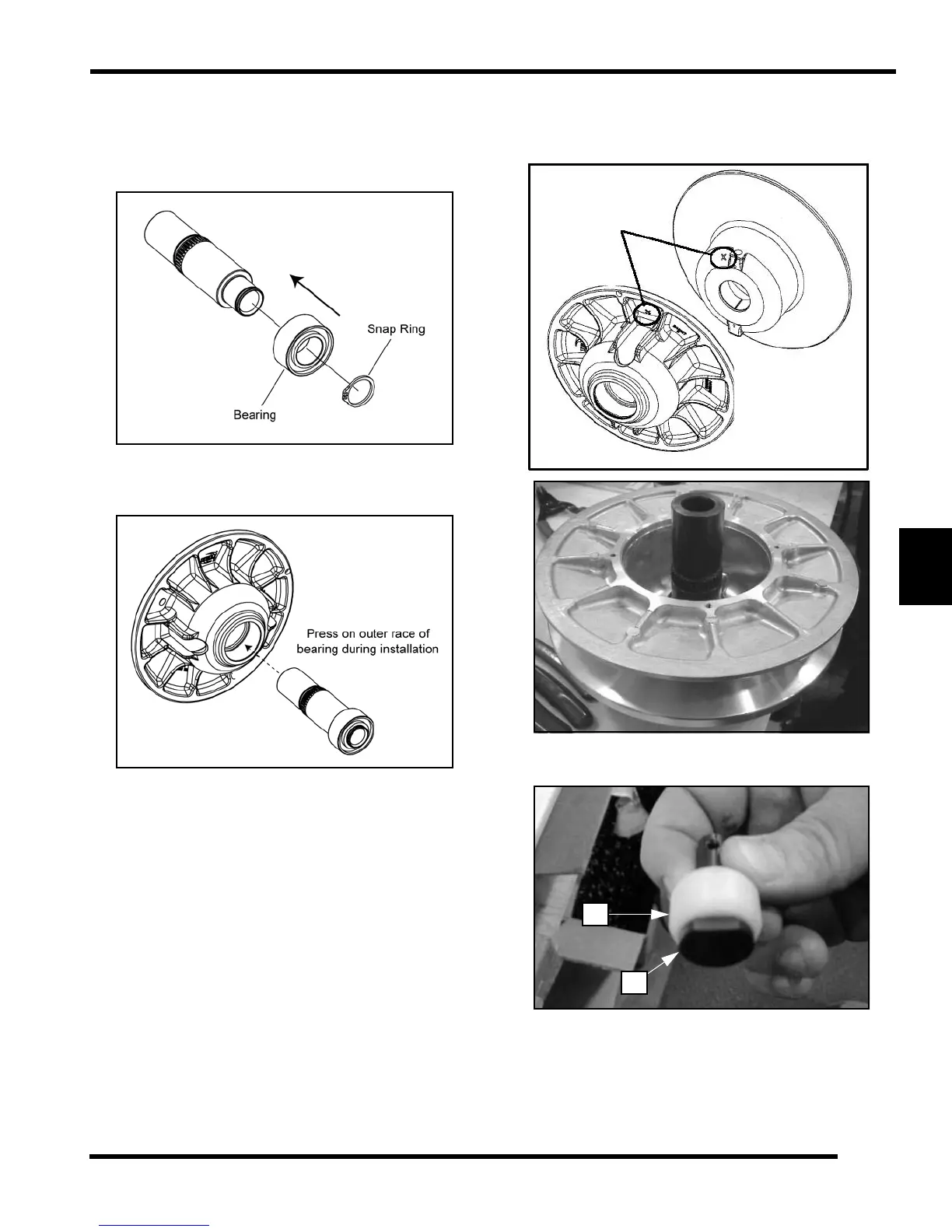

1. Install a new bearing onto the clutch shaft using an
arbor press. Once bearing is fully seated, install a
new snap ring.
2. Install the shaft and bearing assembly into the outer
sheave.
NOTE: Press only on the outer race of the bearing
during installation to prevent damaging the bearing.
3. Line up the “X” on the moveable sheave with the “X”
on the stationary sheave or use the marks previously
used. Put the sheaves together.
4. Install the roller (A) onto the roller pin (B) on both
sides.
To Next Page
