2.45
MAINTENANCE
2
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
Parking Brake Cable Adjustment (INT’L)
When the parking brake is fully engaged and “BRAKE” is
displayed on the instrument cluster, engine speed is
limited to 1500 RPM while in gear. If throttle is applied, this
limiting feature prevents operation, which protects the
parking brake pads from excessive wear.
NOTE: Inspect the parking brake cable tension after
the first 25 hours of operation and every 100 hours
of operation afterwards to ensure proper cable
tension.
Loss of tension in the parking brake cable will cause
illumination of the parking brake indicator and activation of
the limiting feature. If this occurs, inspect and adjust
parking brake cable tension. If performing this service is
difficult due to conditions or location, temporarily
disconnect the parking brake switch electrical connector.
Reconnect the connector as soon as practicable and
adjust the parking brake cable to proper tension.
1. Pull back on the parking brake lever (located in dash).
2. After 3 to 4 clicks “BRAKE” should display on the
instrument cluster and the wheels of the vehicle
should not rotate when turning by hand. After 8 full
clicks of lever travel, the vehicle should not roll while
parked.
3. If the vehicle moves, adjustment is necessary.
4. Adjust the parking brake cable where the cable
attaches to the caliper mount / shift cable bracket. The
mount bracket is located on the right-hand side of the
transmission.
Adjustment Procedure: Refer to Chapter 9 “Brakes”
for complete adjustment procedure.
Parking Brake Pad Inspection (INT’L)

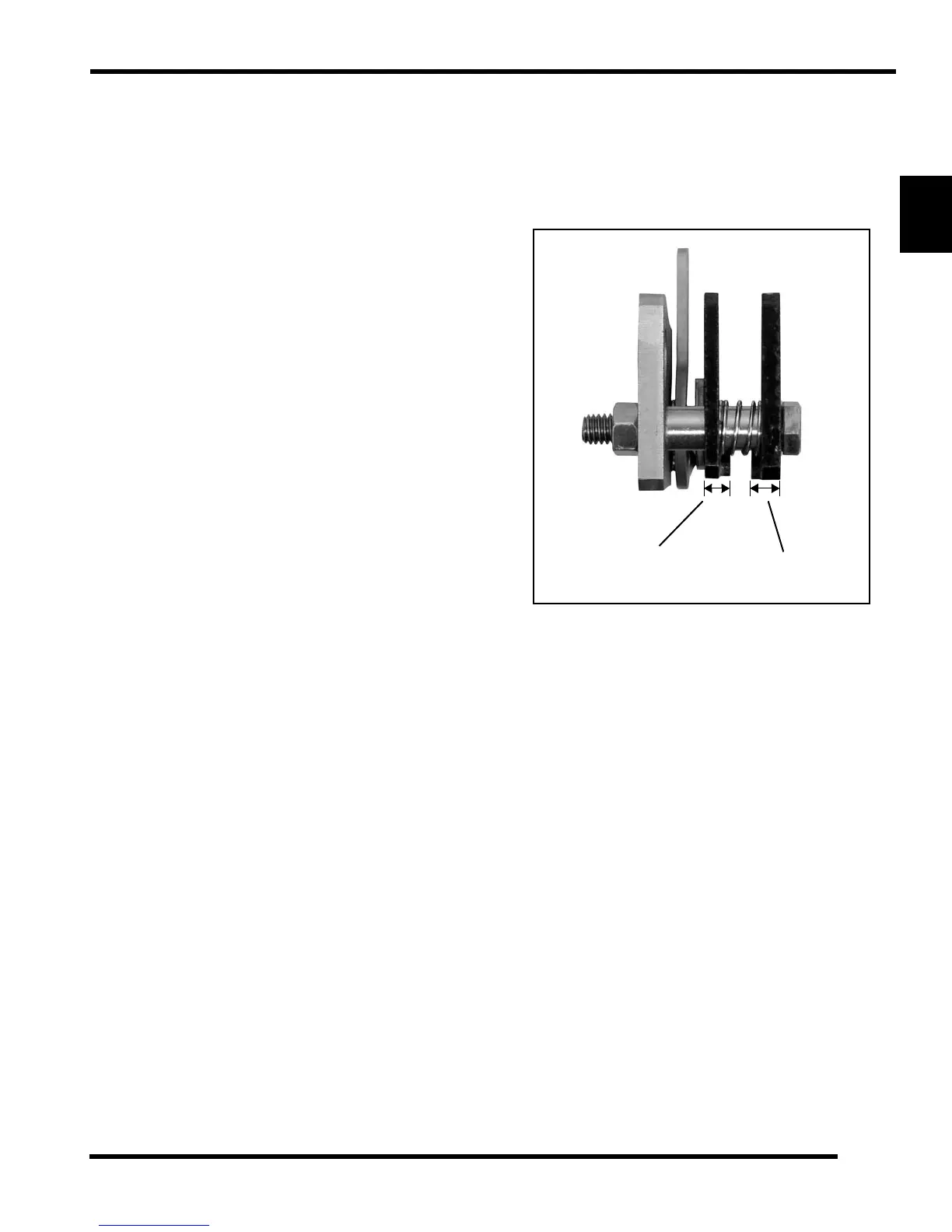

Inspect the parking brake caliper brake pad thickness.
Replace brake pads if damaged or worn beyond service
limit. Replace caliper assembly if damage or excessive
wear is found. Refer to the following image for brake pad
specifications.
Inboard
Pad
Outboard
Pad
Outboard Pad Thickness
New 0.250” (6.35 mm)
Limit: 0.190” (4.83 mm)
Inboard Pad Thickness
New 0.300” (7.62 mm)
Limit: 0.240” (6.10 mm)
