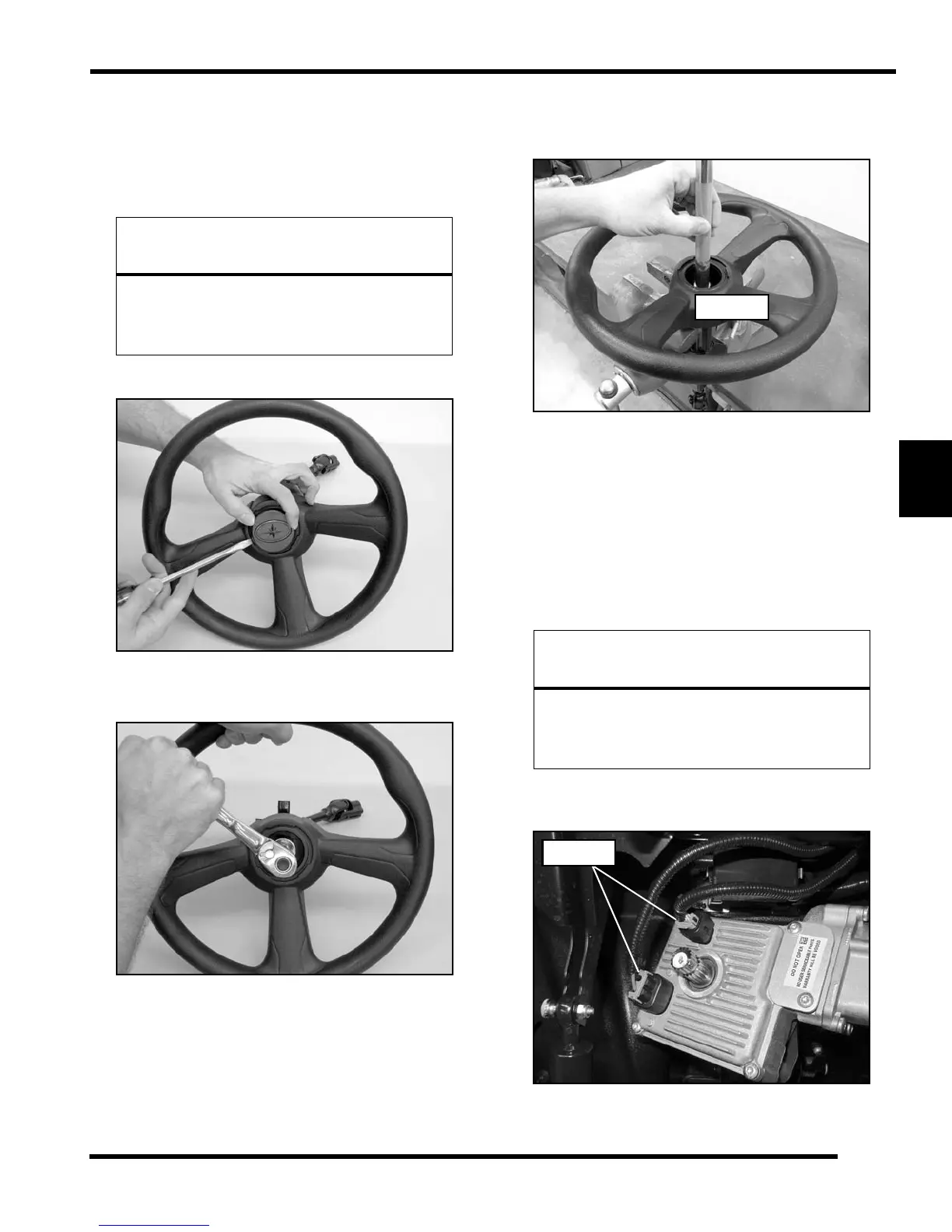

Steering Wheel Removal (EPS Models)
1. Remove the upper steering shaft, pivot tube and
steering wheel as an assembly before attempting to
remove the steering wheel. Refer to “Upper Steering
Shaft Removal (EPS Models)”.
2. Remove the steering wheel cap.
3. Loosen the nut and back it half way off the steering
shaft.
4. Place the assembly in a vise.
5. Using a large bronze drift and hammer, strike the
steering shaft nut to pop the steering wheel off the
shaft taper.
6. Once the steering wheel pops loose, completely
remove the nut and lift the steering wheel off the shaft.
Power Steering Unit Removal
1. Remove the upper steering shaft, pivot tube and
steering wheel from the vehicle as an assembly.
Refer to “Upper Steering Shaft Removal (EPS
Models)”.
2. Disconnect the (2) electrical harnesses from the
power steering unit.
CAUTION
Striking the steering wheel or steering shaft
while installed in the vehicle can permanently
damage the EPS unit and cause a
Power Steering Fault.
CAUTION
Striking the steering wheel or steering shaft
while installed in the vehicle can permanently
damage the EPS unit and cause a
Power Steering Fault.
Remove
Remove
