5.43
BODY / STEERING / SUSPENSION
5
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

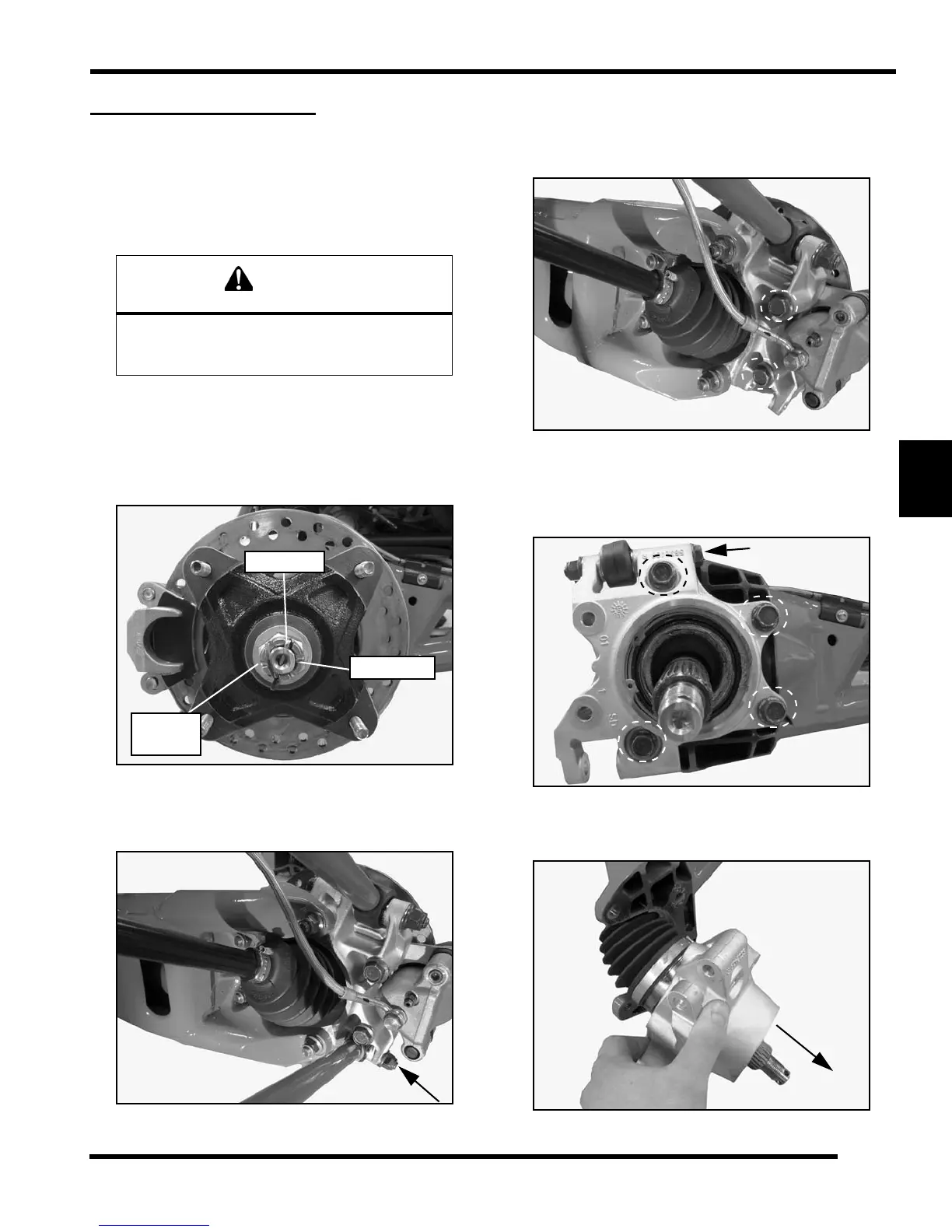

REAR TRAILING ARM
Trailing Arm Removal / Installation
NOTE: Use new attaching nuts upon installation of
the rear trailing arm and bearing carrier.
1. Raise and support vehicle by main frame.
2. Remove the (4) wheel nuts and remove the rear
wheel.
3. Remove the cotter pin and loosen the rear wheel hub
castle nut. Remove the nut, and (2) cone washers
from the rear wheel hub assembly.
4. Remove the lower radius rod mounting bolt, nut and
washer from the bearing carrier. Swing radius rod
down. Discard the nut.
5. Remove the two brake caliper mounting bolts.
CAUTION: Do not hang the caliper by the brake line.
Use wire to hang caliper to prevent damage to the
brake line.
6. Remove the rear wheel hub and brake disk assembly.
7. Remove the (5) remaining bolts that attach the rear
bearing carrier to trailing arm. Discard the nuts.
8. Remove the bearing carrier from the rear drive shaft
and trailing arm.
Serious injury may result if machine tips or falls.
Be sure machine is secure before beginning this
service procedure.
Castle Nut
Cotter Pin
Cone
Washers
To Next Page
