7.7
FINAL DRIVE
7
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

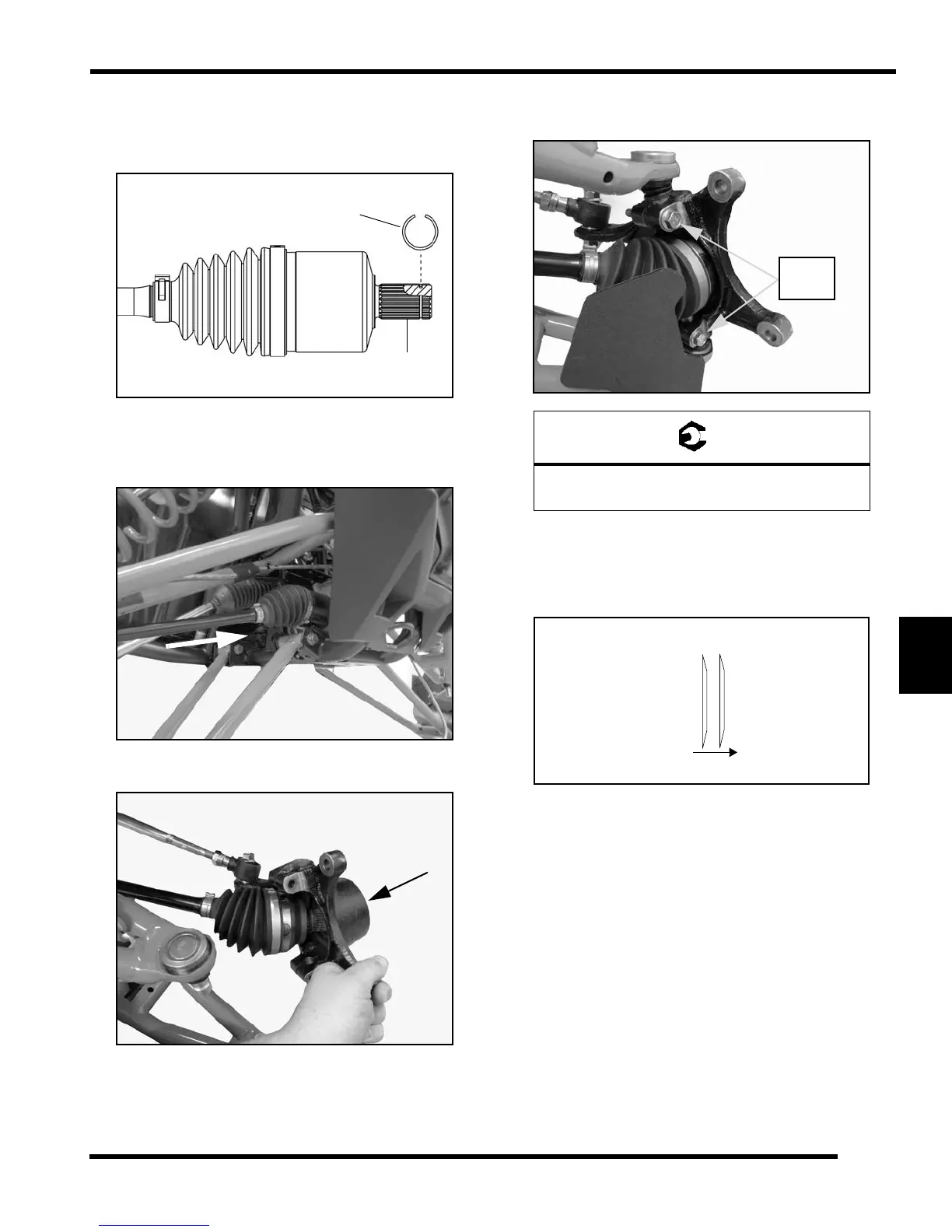

Drive Shaft Installation
1. Install new spring ring on drive shaft. Apply an anti-
seize compound to the splines.
2. Align splines of drive shaft with front gearcase and
reinstall the drive shaft. Use a rubber mallet to tap on
the outboard end of the drive shaft if necessary
3. Install drive shaft into the front bearing carrier.
4. Install the upper and lower ball joint ends into the front
bearing carrier.
5. Install new pinch bolts and nuts. Torque to
specification.
6. Apply Anti-Seize to drive shaft axle splines.
7. Install front wheel hub assembly, cone washers, and
hand tighten the castle nut. Install washers with
domed side out.
Apply
Anti-Seize
NEW
Spring Ring
Ball Joint Pinch Bolts:
44 ft-lbs (60 Nm)
To Next Page
