7.8
FINAL DRIVE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

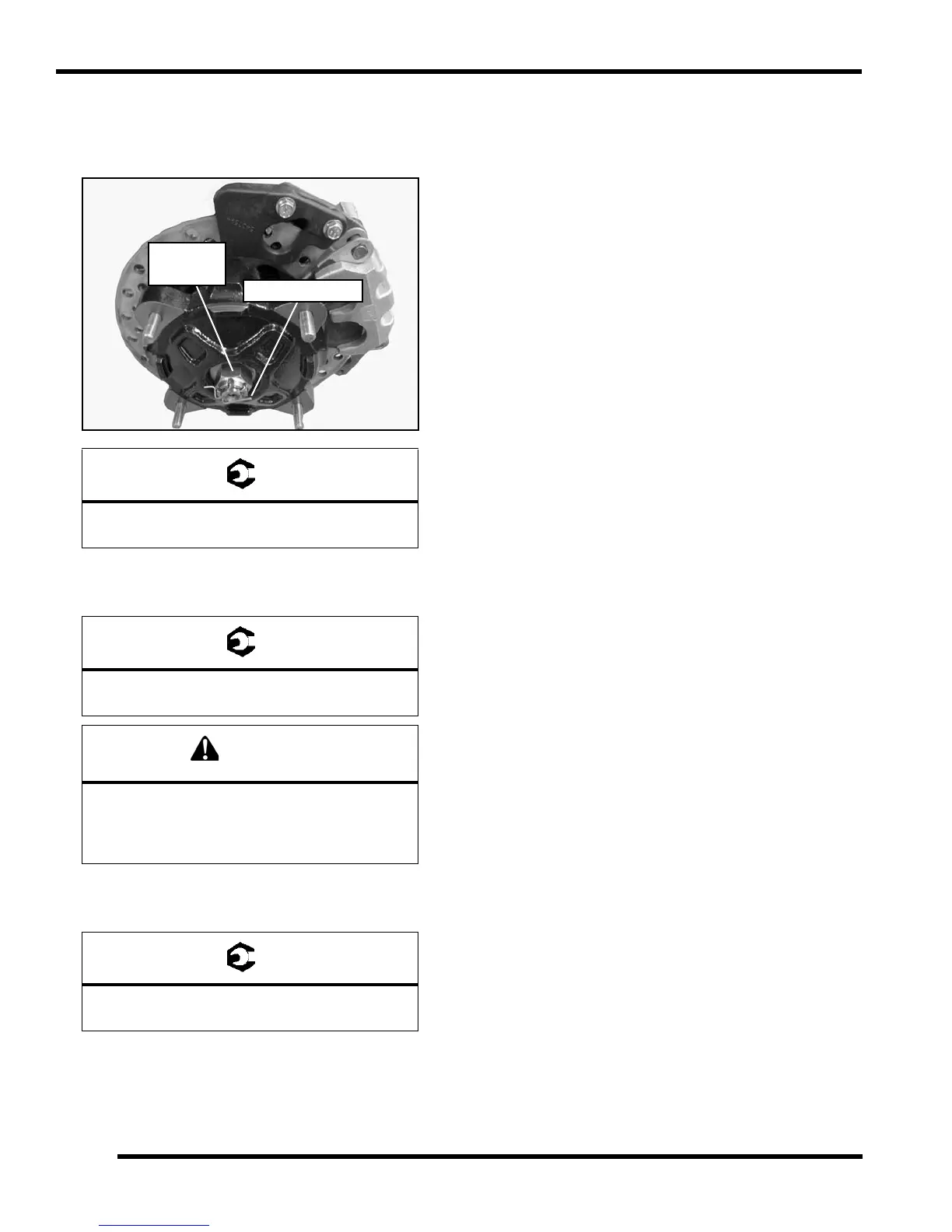

8. Torque wheel hub nut to specification and install a
new cotter pin. Tighten nut slightly if necessary to
align cotter pin holes. Bend both ends of cotter pin
around end of spindle in different directions.
9. Install new brake caliper mounting bolts and torque to
specification.
10. Install wheel and (4) wheel nuts. Torque wheel nuts
to specification.
11. Rotate wheel and check for smooth operation.
Wheel Hub Castle Nut:
80 ft-lbs (108 Nm)
Front Caliper Mounting Bolts:
40 ft-lbs (54 Nm)
New bolts have a pre-applied locking agent
which is destroyed upon removal. Always use
new brake caliper mounting bolts
upon assembly.
Wheel Nuts:
30 ft-lbs (41 Nm) + 90° (1/4 turn)
80 ft-lbs
(108 Nm)
NEW Cotter Pin
