8.2
TRANSMISSION
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
SPECIFICATIONS
Torque Specifications
Special Tools
SPX Corp: 1-800-328-6657 or http://polaris.spx.com/
Lubrication

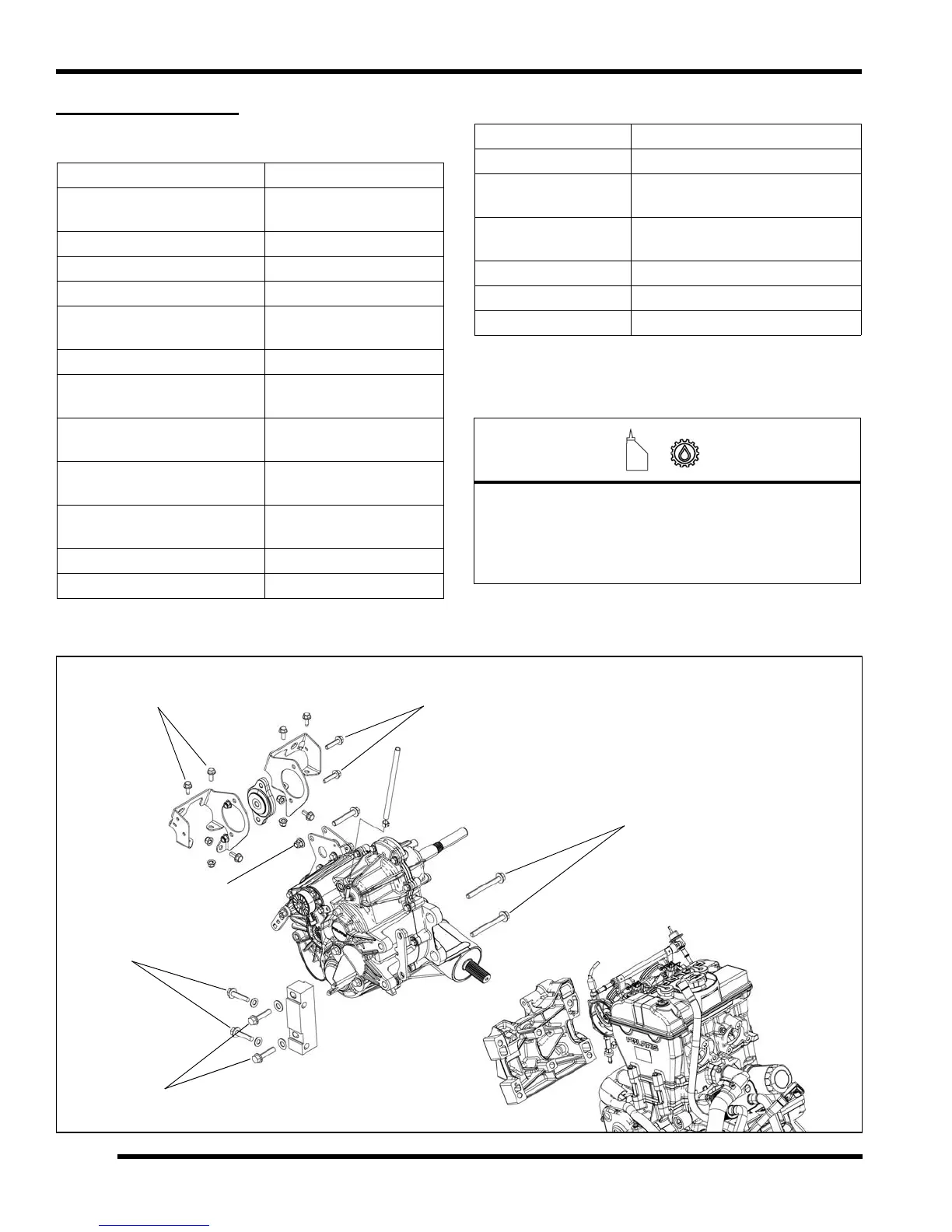

Transmission Mounting and Torque Values
ITEM TORQUE VALUE
Bearing Retaining
Plate Screws
8-10 ft-lbs (11-14 Nm)
Bell Crank Nut 12-18 ft-lbs (16-24 Nm)
Fill / Drain Plugs 10-14 ft-lbs (14-19 Nm)
Gear Sector Cover 9-12 ft-lbs (12-16 Nm)
Park Brake Disc
Mounting Bolt (INT’L)
8-10 ft-lbs (11-14 Nm)
Park Flange Screws 8-10 ft-lbs (11-14 Nm)
Rear Transmission
Isolator Bolt
40 ft-lbs (54 Nm)
Snorkel Tube
Refer to “Snorkel Gear
Backlash Procedure”
Snorkel Tube
Locking Screw
8-10 ft-lbs (11-14 Nm)
Support and Shift Cable
Bracket Bolts
17 ft-lbs (23 Nm)
Transmission Case Screws 15-20 ft-lbs (20-27 Nm)
Speed Sensor Screw 9-12 ft-lbs (12-16 Nm)
PART NUMBER TOOL DESCRIPTION
PA-50231 Snorkel Tool
2871698
(Part of 2871702 Kit)
Rear Output Seal Driver
2871699
(Part of 2871702 Kit)
Rear Driveshaft Seal Guide
2871282 Bearing Seal Driver (50 mm)
PU-50566 Transmission Nut Socket
PU-50658 Clutch Center Distance Tool
=
Recommended Transmission Lubricant:
AGL Plus (PN 2878068) (Quart)
Capacity (Standard): 44 oz. (1300 ml)
Capacity (INT’L): 41 oz. (1200 ml)
40 ft-lbs
(54 Nm)
17 ft-lbs
(23 Nm)
17 ft-lbs
(23 Nm)
44 ft-lbs
(60 Nm)*
44 ft-lbs
(60 Nm)*
64 ft-lbs
(87 Nm)*
* Reference “Transmission Installation”
procedure for torque sequence.
