FINAL DRIVE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

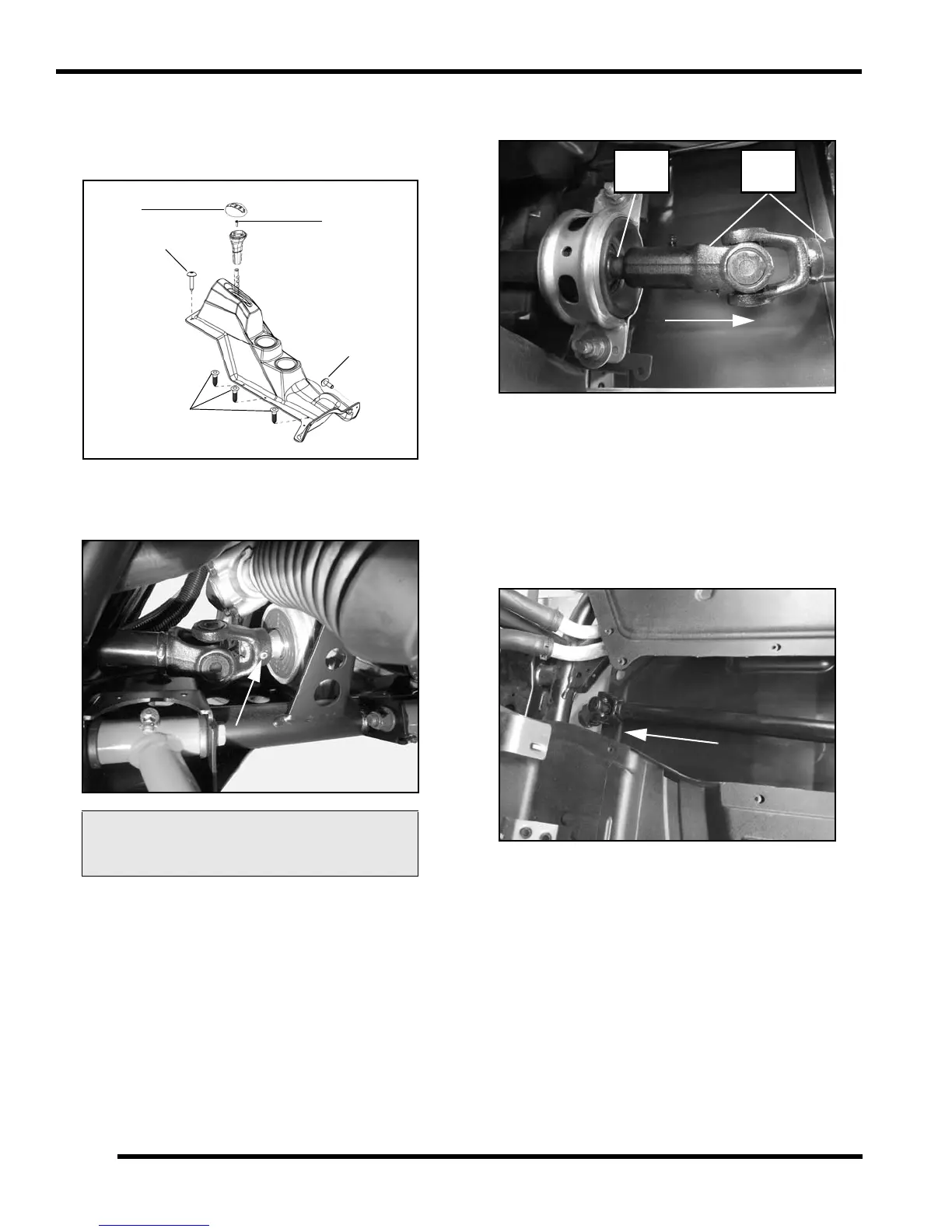

Front Propshaft Removal (RZR XP 4)
1. Remove both front seats.
2. Remove the gear selector knob and center console.
3. Locate the propshaft roll pin and use the Roll Pin
Removal Tool (PN 2872608) to remove the roll pin.
Discard roll pin.
NOTE: Right front wheel can be removed to gain
better access to the propshaft roll pin.
4. Remove the (4) bolts retaining the front gearcase.
5. Carefully move the gearcase forward to remove the
front propshaft from the gearcase input shaft.
6. Slide the front propshaft forward to remove it from the
rear propshaft.
7. Remove the (4) fasteners retaining the front portion of
the vehicle skid plate. Allow the front portion of the
skid plate to hang down for propshaft removal.
8. Move the front propshaft towards the rear of the
vehicle (over the top of the support bearing).
9. Remove the front propshaft from the vehicle through
the skid plate.
10. Proceed to “Front Propshaft Installation”.
Roll Pin Removal Tool:
PN 2872608
Torx Screw
Torx Screws
Cap
Screws
Torx Screws
Rear
Shaft
Front
Shaft
