Stator Cover Installation
1. Apply gasket tack adhesive to help hold gasket in
place during assembly.
2. Install a new stator cover gasket over alignment pins.

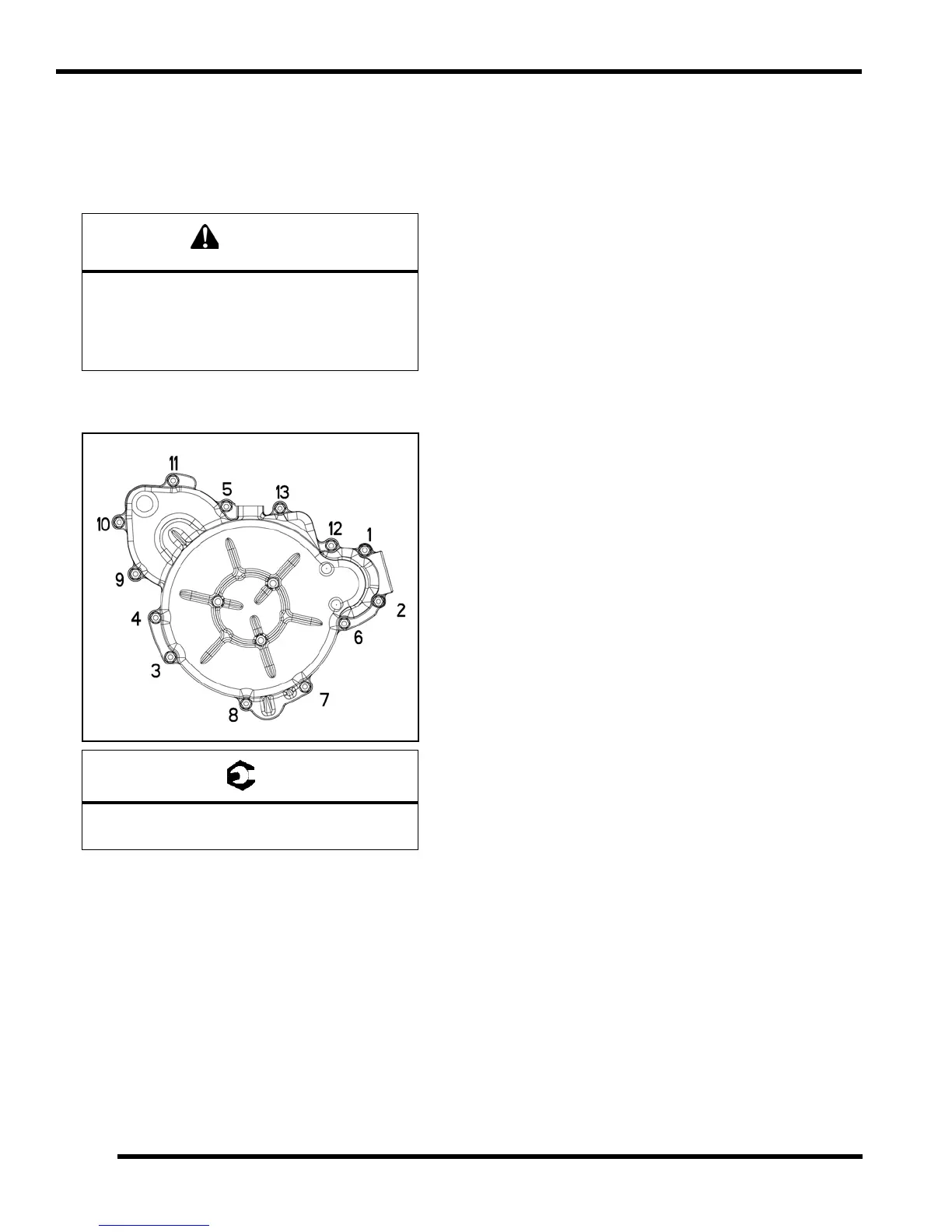

3. Install stator cover and (13) screws. Torque screws in
sequence to specification.
The flywheel contains powerful magnets. Use
caution when removing and installing the stator
cover. DO NOT place fingers between cover and
crankcase at any time during the removal /
installation process or injury could result.
Stator Cover Screws:
106 ± 18 in-lbs (12 ± 2 Nm)
