ELECTRONIC FUEL INJECTION
4
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

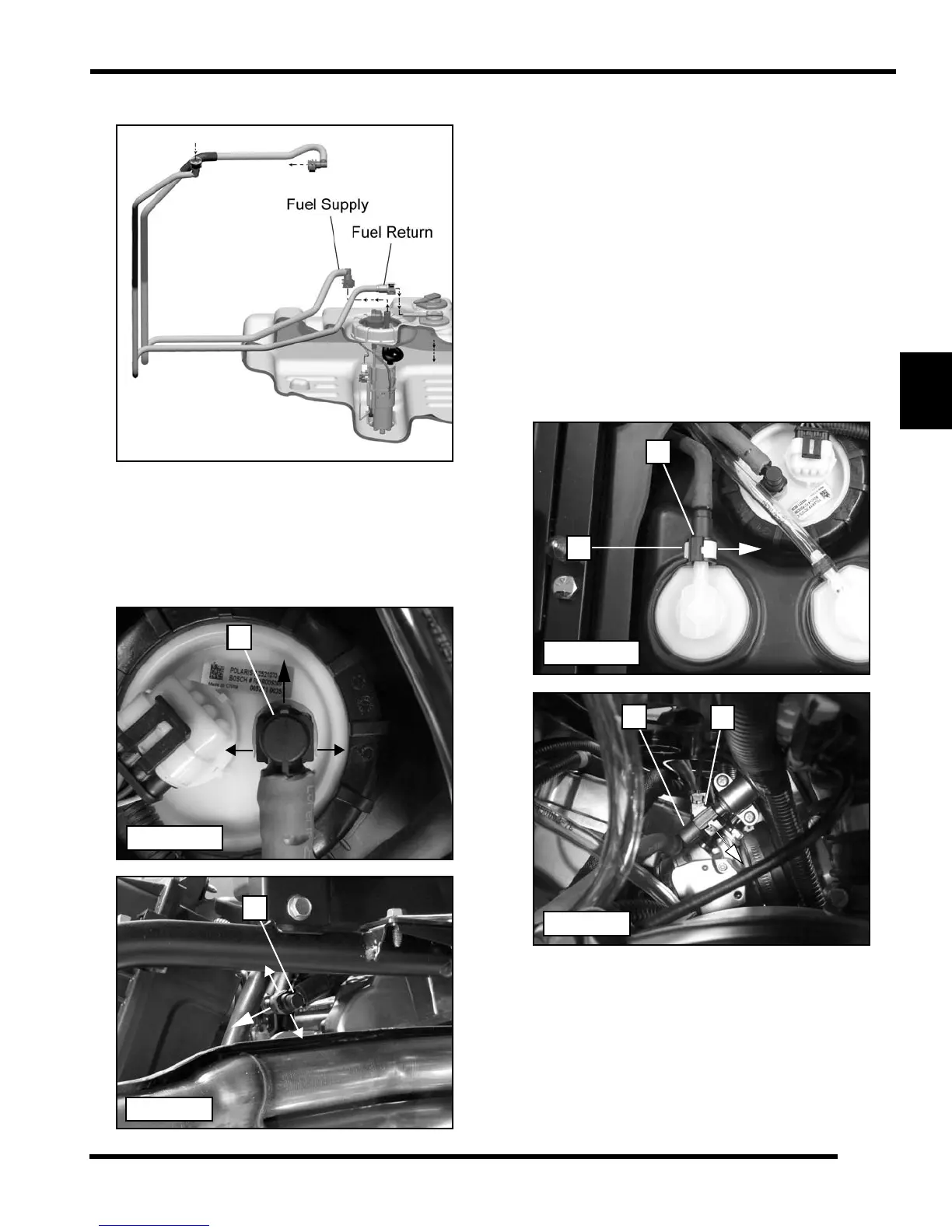

Fuel Line Removal / Installation
Fuel Supply Line
1. Place a shop towel around the fuel line to catch any
dripping fuel.
2. If removing either end of supply line (A), pull open tabs
while moving green connector out to release the line.
3. Pull on the fuel line for removal.
4. To install the line, verify the connections are clean and
free of debris.
5. Place the fuel line back over the fitting and slide the
green connector locking mechanism back into place.
Verify the connector tabs snap back into place.
6. Be sure fuel line is routed and retained properly.
Fuel Return Line
1. Place a shop towel around the fuel line to catch any
dripping fuel.
2. If removing either end of return line (B), squeeze the
connector tabs (C) together and push the white
locking slide back to release the line.
3. Pull on the fuel line for removal.
4. To install the line, verify the connections are clean and
free of debris.
5. Place the fuel line back over the fitting and slide the
white connector locking mechanism back into place.
Verify the connector tabs snap back into place.
6. Be sure fuel line is routed and retained properly.
Tank Fitting
A
Rail Fitting
A
Tank Fitting
B
C
Rail Fitting
B
C
