3.46
ENGINE / COOLING
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

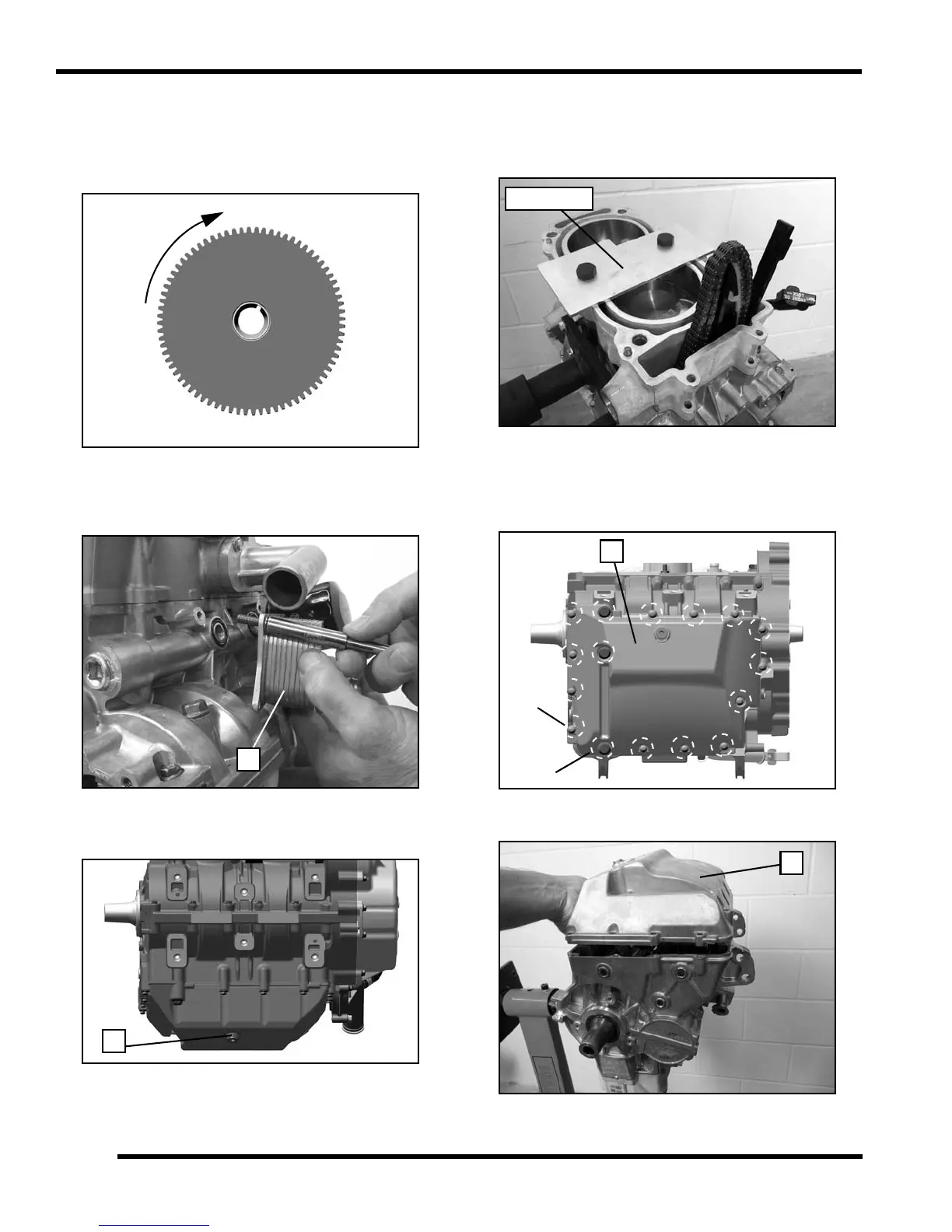

5. If starter gear was replaced, inspect the torque limit
gear.
6. After assembly, be sure the starter gear rotates in the
clockwise direction only.
Crankcase Disassembly / Inspection
1. Remove the oil cooler (A) from the crankcase.
2. Remove the crankcase drain plug (B) to drain any oil
remaining in the engine.
3. Remove the oil filter.
4. Install the Cylinder Holding & Camshaft Timing Plate
(PU-50563) onto the cylinder. The cylinder holding
tool retains the cylinder and pistons when the engine
is rotated.
5. Rotate engine to access the crankcase sump cover.
6. Remove the (13) M6 and (3) M8 bolts retaining the
sump cover (C) to the crankcase.
7. Remove the sump cover (D) from the crankcase.
