5.46
BODY / STEERING / SUSPENSION
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

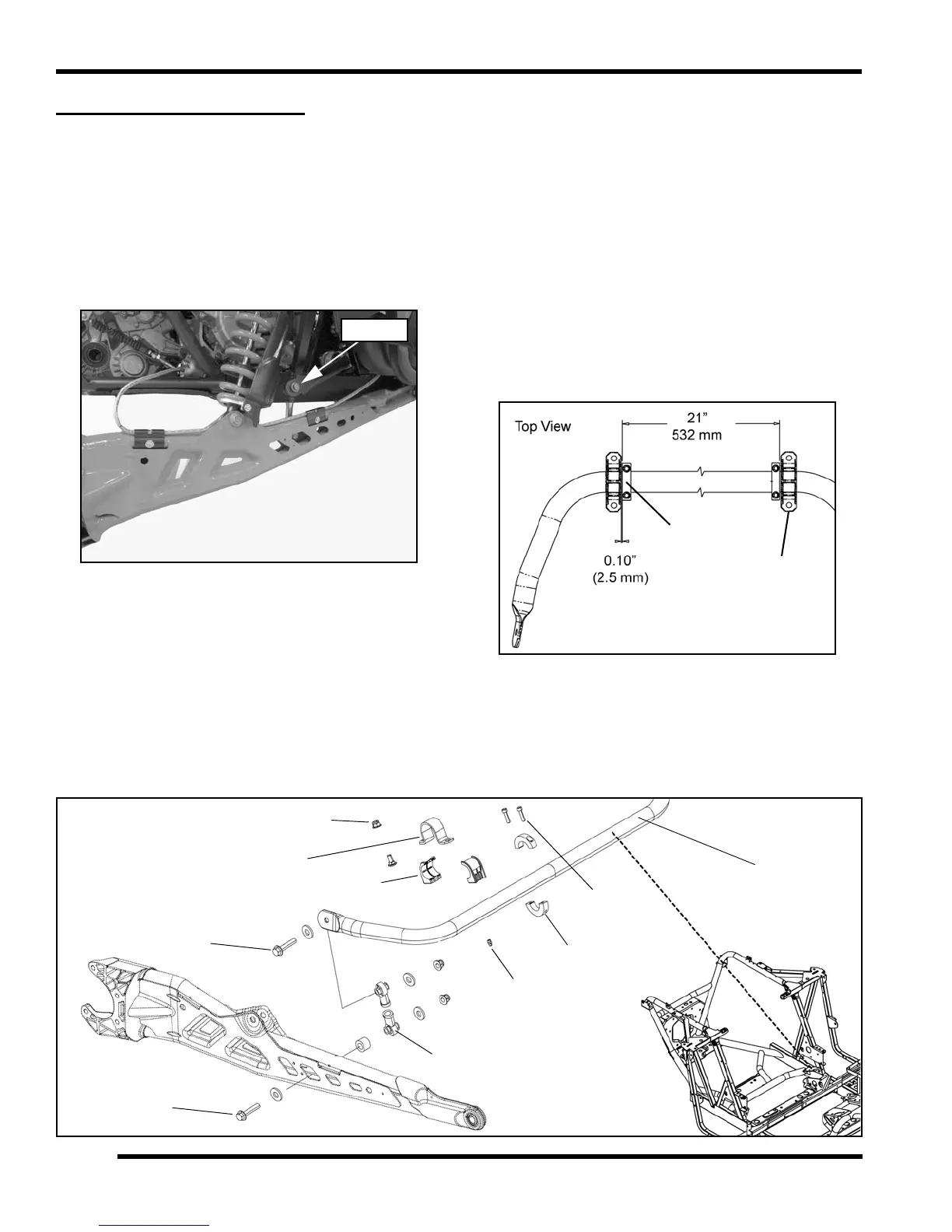

REAR STABILIZER BAR
Stabilizer Bar Removal
1. Lift and support vehicle by main frame.
2. Remove rear wheels nut and wheels.
3. Identify / mark top side of the stabilizer bar to
reference during installation.
4. Remove the fasteners retaining the stabilizer bar to
the linkage on each side of the vehicle.
5. Remove the (4) fasteners retaining the stabilizer bar
to the vehicle frame (see below).
6. Remove the bushing brackets and bushings for ease
of removal.
7. Carefully remove the stabilizer from the LH wheel well
area of the vehicle.
8. Mark the location and remove the two stabilizer bar
locating clamps (if replacing stabilizer bar).
9. Inspect the stabilizer bar for straightness. Inspect the
pivot bushings and replace if needed.
Stabilizer Bar Installation
1. Carefully install stabilizer bar through the LH wheel
well area.
NOTE: Be sure fuel lines and shift cable are routed
ABOVE the stabilizer bar.
2. Fully install stabilizer bar, bushings, bracket and
bracket fasteners and stabilizer links. Center
stabilizer bar in the frame. Torque fasteners to
specification (see below).
3. Install stabilizer bar locating clamps on the INSIDE of
the pivot bushing and brackets. There should be a
0.10” (2.5mm) gap between the bushing face and the
locating clamps. Torque locating clamps fasteners to
specification.
4. Torque all fasteners to specification (see below).
5. Lubricate stabilizer bar pivot bushings via grease
fitting (fittings are accessible through skid plate).
6. Install rear wheels and wheel nuts. Torque wheel nuts
to specification.
Locating Clamp
Bushing Bracket
31-34 ft-lbs
(42-46 Nm)
17 ft-lbs
(23 Nm)
10 ft-lbs
(13.5 Nm)
Link
Stabilizer Bar
Bushing Bracket
Bushings
Locating Clamps
Grease Fitting
31-34 ft-lbs
(42-46 Nm)
