2.13
MAINTENANCE
2
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

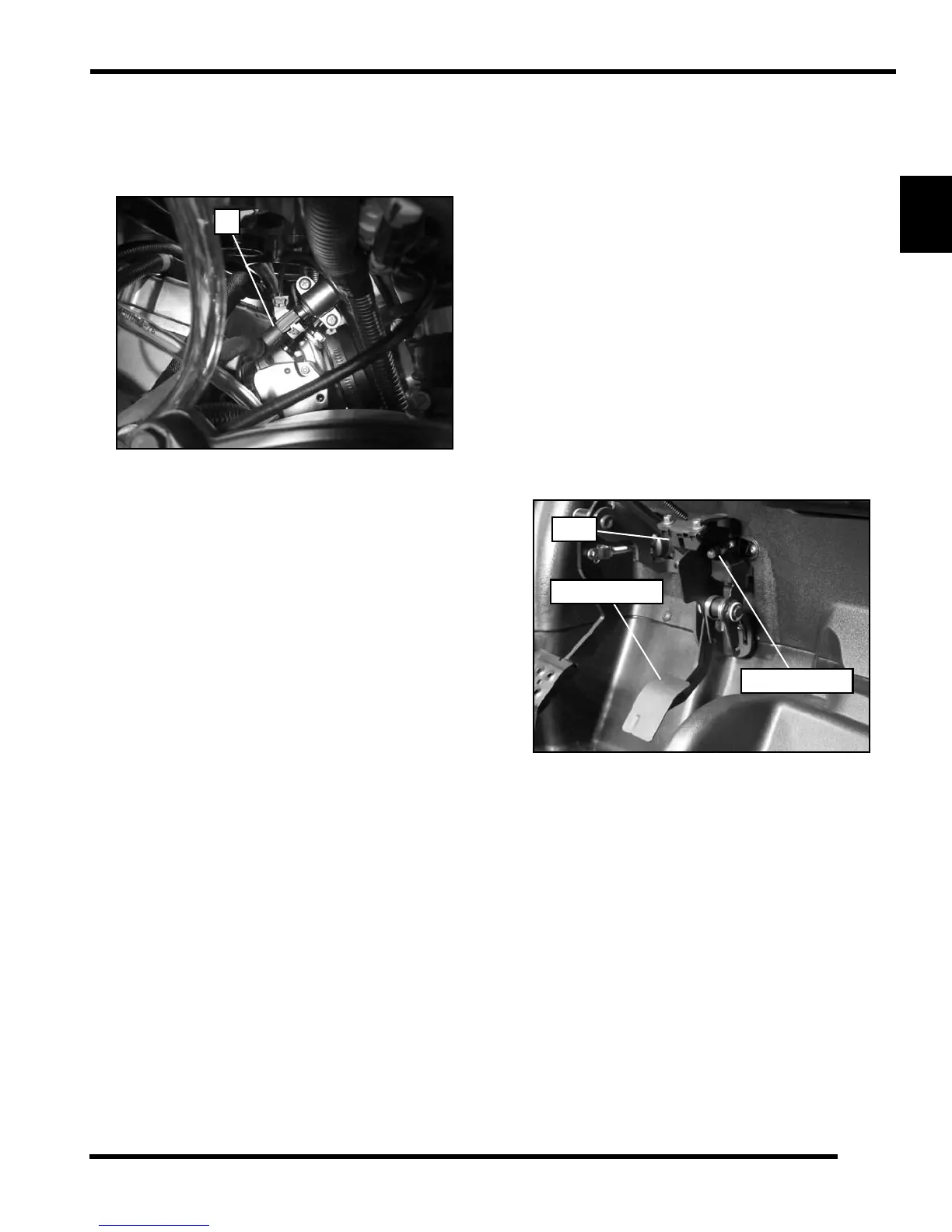

3. Locate the fuel return fitting (D) through the left rear
wheel well on the upper left side of the engine. Check
the line and quick-connect fitting for signs of wear,
deterioration, damage or leakage. Replace line if
necessary.
4. Be sure fuel lines are routed and retained properly.
IMPORTANT: Make sure lines are not kinked or
pinched.
Throttle Pedal Inspection
This vehicle is equipped with a Throttle Release Switch
(TRS) used to detect when the throttle pedal has returned
to the rest position.
NOTE: The throttle pedal lever is designed to have a
few degrees of freeplay prior to engaging the throttle
arm that pulls the throttle cable.
Always check that the throttle pedal moves independently
of the cable pull lever at the start of throttle pedal travel and
that the throttle pedal returns normally before starting the
engine.
There should be minimal freeplay between the throttle
cable and the cable pull lever. If there is excessive play
due to cable stretch or misadjustment, it will cause a delay
in throttle response, especially at low engine speed. The
throttle may also not open fully. If the throttle cable has no
freeplay, the throttle may be hard to control, and the idle
speed may be erratic.
Check throttle pedal freeplay periodically in accordance
with the Periodic Maintenance Chart. Adjust the freeplay
if necessary (see “Throttle Freeplay Adjustment”).
Throttle Cable
TRS
Throttle Pedal
To Next Page
